Best selling Converters from Planet
This page always stays fresh and updates automatically.
1. Planet VC-231G
The Planet VC-231G is a powerful Gigabit Ethernet over VDSL2 converter of the modern generation. It works well with a ubiquitous telephone line network and offers a symmetrical data rate of up to 150/150 Mbps (G.INP, Sym, 8dB) over a distance of 300 meters, as well as 22/10 Mbps over a long distance of 1.4 kilometers. The converter is based on dual-core network technology, Gigabit Ethernet, and VDSL2 (Very High Data Rate Digital Subscriber Line 2). The VDSL2 technology enables the fastest data transmission speeds over existing copper telephone lines without the need for rewiring.
2. Planet VC-234G 4Port 10/100/1000T Ethernet to VDSL2 Bridge
The VC-234G Planet is a powerful network bridge that enables a seamless connection between Ethernet and VDSL2. With four RJ-45 ports for Ethernet and one RJ-11 port for VDSL2, this device offers a flexible solution for data transmission over existing telephone lines. The maximum data transfer rate of up to 200 Mbps for VDSL2 and 1000 Mbps for Ethernet ensures a fast and reliable network connection. Installation is straightforward and can be configured in seconds via a DIP switch, making it easy to adapt to various network conditions. The VC-234G supports modern standards such as ITU-T G.993.2 and G.993.5, including G.Vectoring and G.INP, to optimize connection performance and stability. With a robust metal housing, the device is designed for long-term use and is ideal for various applications in office and home environments.
- Supports ITU-T G.993.2 VDSL2 Profile 30a for enhanced performance
- Built-in POST splitter allows simultaneous voice and data communication
- DIP switch for easy selection between master/slave mode
- Compatible with IEEE 802.3 Ethernet standards for versatile networking applications
- Sturdy metal housing for durability and reliability.
3. Planet Industrial 2-channel Optical
The Industrial 2-channel Optical by Planet is a highly advanced data converter specifically designed for industrial applications. With the capability to support both 2-channel duplex and 4-channel simplex fiber connections, this device features an optical bypass function that ensures uninterrupted network communication. It supports a variety of speeds, including 100Gbps, 40Gbps, 10Gbps, 1Gbps, and 100Mbps, and is available in both single-mode and multi-mode variants. The robust design with an IP30-certified metal housing ensures durability and reliability in demanding environments. With redundant power supply options and a temperature range of -40 to 75 degrees Celsius, this converter is ideal for critical network connections that require high availability. The integrated ESD protection technology and the option for wall or DIN rail mounting make it a flexible solution for various installation requirements.
- Optical bypass function for uninterrupted communication
- Supports speeds up to 100Gbps
- Robust IP30-certified metal housing
- Temperature range of -40 to 75 degrees Celsius.
4. Planet IP40 Industrial 1-Port
The IP40 Industrial 1-Port from Planet is a powerful data converter designed for industrial applications. With a maximum data transfer rate of up to 10,000 Mbit/s and support for various Ethernet standards, including IEEE 802.3an and IEEE 802.1Q, this device provides a reliable and fast network connection. The converter is equipped with an SFP+ port that supports both wired and wireless transmission techniques. The robust metal housing ensures high durability, while the IP40 protection rating shields the device from dust and contact. The IP40 Industrial 1-Port is ideal for use in demanding environments, as it withstands operating temperatures from -40 to 75 °C and tolerates a relative humidity of 5 to 95%. Additionally, the device supports Power over Ethernet (PoE) with a total power output of 95 W, facilitating the installation and operation of connected devices.
- Support for VLAN and flow control
- DIN rail mounting for easy installation
- Jumbo frames and Quality of Service (QoS) support
- Web-based management for easy configuration
- Certified according to FCC Part 15 Class A and CE.
5. Planet GST-805A Network Media Converter
To provide an easy-to-use yet powerful solution for FTTX applications, PLANET has released a new 10/100/1000Base-T to 1000Base-SX/LX Smart Media Converter, GST-80x series, featuring plug and play and smart media conversion functions.
Distance extension with high performance and steady network communication
PLANET GST-80x Smart Gigabit Media Converter series extends communication distance with high Gigabit performance via fiber optical cable. The GST-80x series provides media conversion between 10/100/1000Base-T and 1000Base-SX/LX interfaces such as multi-mode LC/SC connectors (220m / 550m), single-mode LC/SC connectors (10/20/30/40/50/70/120km), and single fiber connectors (WDM, 15/60km) for various fiber optic applications.
Enhanced smart management features
The GST-80x series provides auto MDI/MDI-X on its TP port and a DIP switch to configure the available smart functions including auto-negotiation/force for fiber interface and Link Pass-through function (LLCF/LLR). The Link Loss Carry Forward (LLCF) function works with Link Loss Return (LLR) to diagnose network connections. Additionally, the LLR function can immediately alert the network administrator to media link issues and provide efficient solutions for monitoring the entire network.
Easy installation
The GST-80x series allows two segments to connect easily. The Smart Media Converter can be used as a standalone unit when powered by its DC adapter or as a slide-in module to PLANET 19-inch managed 16-slot media converter chassis. When working with the managed media converter chassis, the GST-80x is able to be managed, and its status can be monitored through the local RS-232 console and remote web interface.
6. Planet IFT-802T Network Media Converter 1310 nm
High-performance distance extension with stable network communication. The PLANET 10/100Base-TX to 100Base-FX industrial media converter from the IFT-80xT series extends communication distances with stable performance over fiber optic cables. The extended distance can reach up to 2 km with the IFT-802T, up to 15 km with the IFT-802TS15, or up to 20 km with the IFT-805AT (depending on the SFP module). The IFT-80xT series is specifically designed with robust components and a sturdy housing to operate reliably in electrically harsh and climatically demanding environments. This industrial media converter offers a high level of immunity to electromagnetic interference and strong electrical surges that are typically found in production facilities or traffic control cabinets. It can operate in a temperature range of -40 to 75 degrees Celsius, allowing the IFT-80xT series to be deployed in nearly any challenging environment.
Robust performance of the media converter. The PLANET IFT-80xT 10/100Base-TX to 100Base-FX industrial media converter series efficiently converts data between 10/100Base-TX and 100Base-FX networks. The IFT-80xT series provides flexibility for all types of 10/100 Mbps Ethernet media at the RJ-45 port and delivers highly stable fiber optic performance.
Easy installation and wide range of power utilizations. The IFT-80xT series is housed in a compact IP-30 enclosure, suitable for both DIN rail and panel mounting, optimizing space in the cabinet. It features a built-in power supply with a wide voltage range for global operation. Additionally, it offers dual-redundant, reversible 12V DC to 48V DC power input options for high-availability applications that require dual or backup power inputs.
7. Planet 1-Port 100/1000X SFP to
802.3bt PoE++ 95-watt power over 4-pair UTP solution
The PLANET GUP-805A-95W adopts the IEEE 802.3bt PoE++ standard technology, capable of sourcing up to 95 watts of power using all four pairs of standard Cat5e/6 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and is an ideal solution for high power consuming network PDs, such as:
- PoE PTZ speed dome cameras
- Network devices
- Thin clients
- AIO (all-in-one) touch PCs, point of sale (POS) and information kiosks
- Remote digital signage displays
- PoE lighting
With a total power budget of up to 95 watts for various PoE applications, the GUP-805A-95W provides a quick, safe, and higher 802.3bt PoE++ network solution for small businesses and enterprises.
High performance and steady network communications guaranteed despite distance extension
The GUP-805A-95W extends communication distance with high Gigabit performance via SFP slot and SFP transceiver. It provides media conversion between 10/100/1000BASE-T and 100/1000BASE-X interfaces for various fiber optic applications.
802.3bt PoE++ and DIP switch for PoE power output mode options
To meet the demand of various powered devices consuming stable PoE power, the GUP-805A-95W provides one DIP switch for multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, UPOE, and legacy mode to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
- 802.3bt PoE++ power output mode
- UPOE power output mode
- Legacy power output mode.
8. Planet 7-Slot 10" Media Converter
Short info: Planet MC-700 - Modular expansion unit - Rack-mountable group network devices. Manufacturer: Planet Technology. Model: MC-700. EAN/UPC: 7612946225985.
Product Description: Planet MC-700 - Modular expansion unit. Type: Modular expansion unit. Form factor: Rack mountable. Power supply: AC 120/230 V (50/60 Hz). Dimensions (Width x Depth x Height): 21.7 cm x 14 cm x 8.85 cm.
Detailed Information: General equipment type: Modular expansion unit. Width: 21.7 cm. Depth: 14 cm. Height: 8.85 cm. Network form factor: Rack-mountable. Connection technology: Wired. Performance features: Modular design. Expansion/connectivity: Expansion slots 7 (total)/7 (free) x expansion slot.
Miscellaneous: Marking: FCC Part 15 A. Power supply: Internal power supply. Required mains voltage: AC 120/230 V (50/60 Hz). Power consumption in operation: 40 watts. Ambient conditions: Min operating temperature: 0 °C. Max operating temperature: Operating temperature.

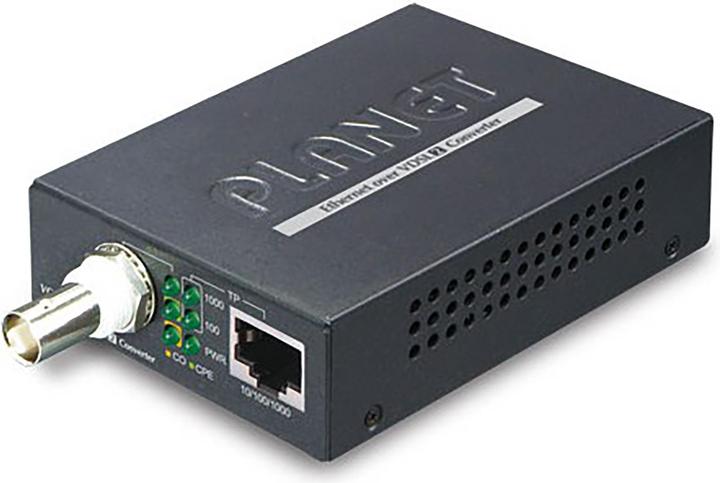

9. Planet VC-232G
The VC-232G is based on dual-core network technology, Gigabit Ethernet, and VDSL2 (Very-high-data-rate Digital Subscriber Line 2). It provides a stable yet fast point-to-point network access with a duplex data transmission of up to 300 Mbps. The VC-232G features two selective transmission modes: asymmetric mode or symmetric mode for transmitting upstream and downstream signals. In asymmetric mode, the downstream speed reaches up to 200 Mbps, while the upstream speed can go up to 100 Mbps. In symmetric mode, both downstream and upstream speeds can reach up to 150 Mbps. The symmetric mode offers similar transmission rates for downstream and upstream, while the asymmetric mode provides higher transmission quality in close range. Overall, the VC-232G delivers better upstream performance in symmetric mode and better downstream performance in asymmetric mode.
10. Planet GT-802S media converter
The Planet GT-802 is a metal-cased gigabit media converter that connects 10/100/1000Base-T Ethernet and 1000Base-LX fiber networks (single mode). The converter can also be installed in the Planet MC-1500/1500R, MC-700, and MC-1000MR media converter chassis.
