Energy monitors
EUR1989,–
PQ Plus PQ M-Centre 60 Digital top-hat rail measuring device PQ M-Centre 60 - max.
Best selling Energy monitors from PQ Plus
This page always stays fresh and updates automatically.
1. PQ Plus PQ M-Centre 60 Digital top-hat rail measuring device PQ M-Centre 60 - max.
The automated meter reading ensures error-free and continuous data collection for later analysis and billing according to ISO 50001. All energy meters (e.g., electricity, water, heat, gas) with an M-Bus interface according to EN 13757-2, -3 are read via a 2-wire connection. Configuration and data evaluation are carried out through an appealing, user-friendly interface via IP address with any common web browser. In addition to the MID energy meters, the PQ M central unit can also connect to the measuring devices UMD 96M and UMD 704M. Your energy data has ample space on the Micro SD card (16 GB).
2. PQ Plus UMD 710A Digitales Hutschienenmessgerät
The UMD 710A is a compact high-end power quality measurement device designed for mounting on a DIN rail. It measures 4-phase current and voltage with up to 3 tariffs in 4-quadrant operation with a class accuracy of 0.05, and thus operates in class 0.2s, as well as all common power parameters, such as harmonics up to the 128th. The 5th connection allows for continuous measurement of fault currents. The device represents power quality according to EN 50160, EN 61000-2-2, EN 61000-2-4, and EN 61000-2-12, and is certified to Class A. It features a large 512 MB memory. Access to the device is possible via the Ethernet interface, and live measurement values can be viewed through the associated web server using a web browser. This also allows for the integration of internet protocols such as NTP, making it easy to connect PLC systems and building management systems. Digital inputs/outputs and a serial RS485 interface are integrated. With the firmware module GO, oscilloscope functions for current and voltage are activated, and trigger signals for limit events can be set. The software module PQ A continuously records and evaluates voltage quality. Special feature: color display.
3. PQ Plus PQ M-Centre 20 Digital top-hat rail measuring device
The automated meter reading ensures error-free and continuous data collection for later analysis and billing according to ISO 50001. All energy meters (e.g., electricity, water, heat, gas) with an M-Bus interface according to EN 13757-2, -3 are read via a two-wire connection. Configuration and data evaluation are carried out through an appealing, user-friendly interface via IP address with any common web browser. In addition to the MID energy meters, the PQ M central unit can also connect to the measuring devices UMD 96M and UMD 704M. Your energy data has ample space on the Micro SD card (16 GB).
Energy monitors
−23%
EUR1459,– was EUR1899,–
PQ Plus PQ M-Centre 20 Digital top-hat rail measuring device

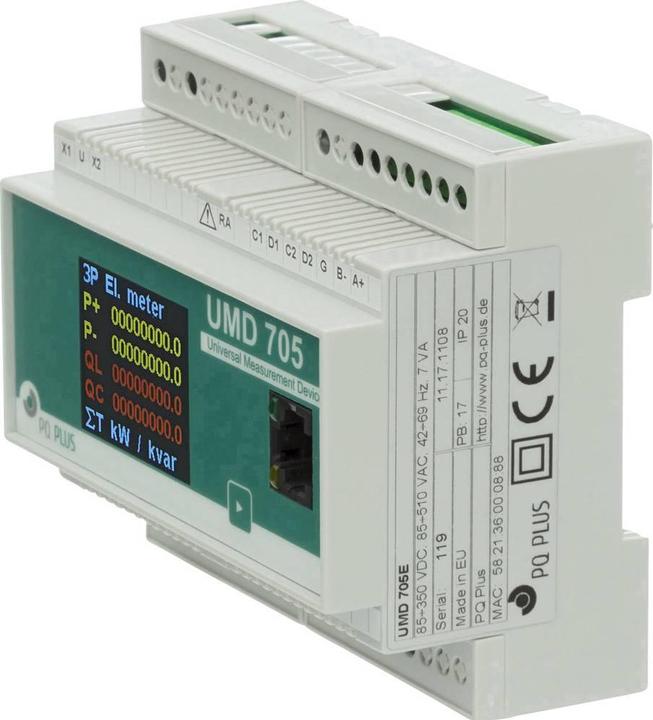

4. PQ Plus Universal Measuring Device DIN Rail Mounting UMD Series
The UMD 705 is a compact power quality measurement device with a data logger designed for mounting on DIN rails. It measures three-phase current and voltage with up to three tariffs in a four-quadrant operation and operates in class 0.2s. It captures all common network parameters, such as harmonics up to the 50th. Optionally, it can represent power quality according to EN 61000-2-2, EN 61000-2-4, and EN 61000-2-12 with the PQ S firmware module. It features a large 512 MB memory. Access to the device is possible via the Ethernet interface, and live measurement values can be viewed through the associated web server using a web browser. This also allows for the reading of Internet protocols, making it easy to connect PLC and building management systems. Integrated digital inputs/outputs and a serial RS485 interface are included. The UMD 705 can also be used as a Modbus master to connect up to 31 Modbus slaves in network structures. With the optional GO firmware module, oscilloscope functions for current and voltage are activated, and trigger signals for limit events can be configured.
5. PQ Plus Universalmessgerät - Schalttafeleinbau - UMD Serie M-Bus
The UMD 96M universal measuring device from PQ Plus is a state-of-the-art panel-mounted measuring instrument specifically designed for the precise measurement of current and voltage in 3-phase systems. With a compact size of 96x96 mm, it replaces conventional analog measuring devices and offers a measurement accuracy of class 0.2. The device is capable of capturing all common network parameters, including harmonics up to the 50th order. It is used in 400V networks and can be operated via current transformers with N/5A and N/1A. The large, illuminated digital display ensures easy readability, while the intuitive operation is facilitated through four function keys. Additionally, the UMD 96M features an integrated PT100 sensor, a digital input, two digital outputs, and an M-Bus interface. The included ENVIS software allows for easy parameterization and visualization of the device.
- Precise measurement in class 0.2 for high accuracy
- Captures harmonics up to the 50th order
- Integrated PT100 sensor for temperature measurements
- Easy operation via a large, illuminated display.
