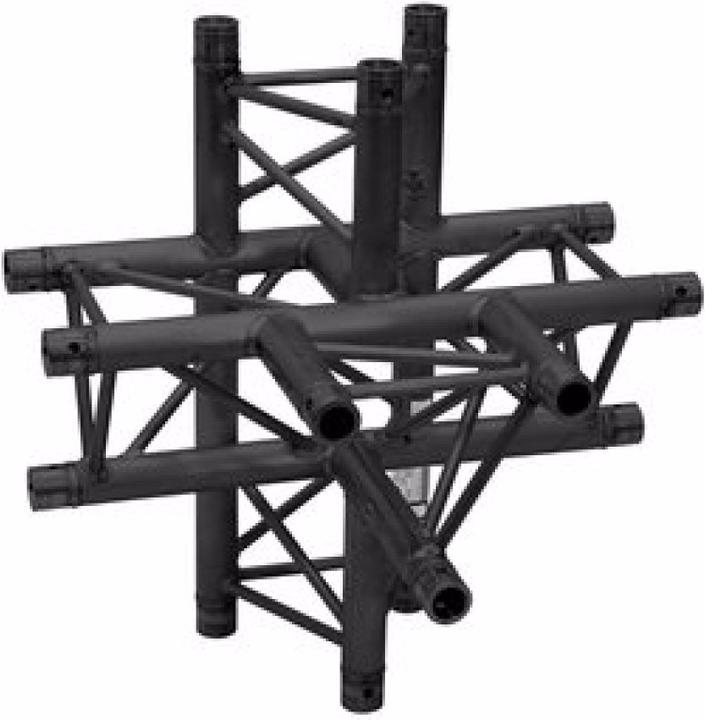

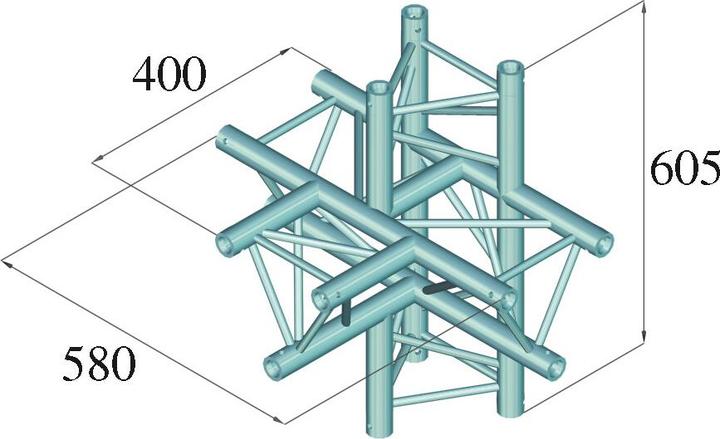

DECOLOCK DQ3 3-point truss systemThe DECOLOCK DQ3 system is a 3-point truss system made of aluminum, which is connected via three conical connectors, pins and cotter pins.The advantage of conical connectors is that they are force-locked and form-fit with the belt tube and thus guarantee maximum load capacity. The Quick-Lock system enables fast, efficient and visually appealing assembly with frequent assembly and disassembly.The three belt tubes are made of 35 mm aluminum tubing with 2 mm wall thickness and offer sufficient load capacity with low dead weight. The struts have a diameter of 10 mm with 2 mm wall thickness and give the system a decorative appearance.DECOLOCK can be used to create compact installations with a low dead weight e.g. for use in store windows, store decorations, exhibitions, interior design, exhibition stands, store fitting, discotheque and theater installations.DECOLOCK is primarily designed for decorative installations, but its aesthetic appearance makes it suitable for both temporary and permanent structures. Plus points of this system are its compact design with 220 or 195 mm external dimension, low weight, optimal strength and easy and quick assembly.The documentation of this truss system closely follows the standard SQ P1 - trusses published by VPLT. The load table as a basis for calculation can be downloaded from the Internet before purchase!Please note: This truss system must never be combined with other systems!

Universal 3-point truss system in lightweight construction

• High quality aluminum tubes with 35 mm diameter

• Easy assembly due to Quick-Lock connectors

• Very low weight

• For trade fair and store fitting

• Incl. 4 x connector set

• Belt tube: 35 mm.
