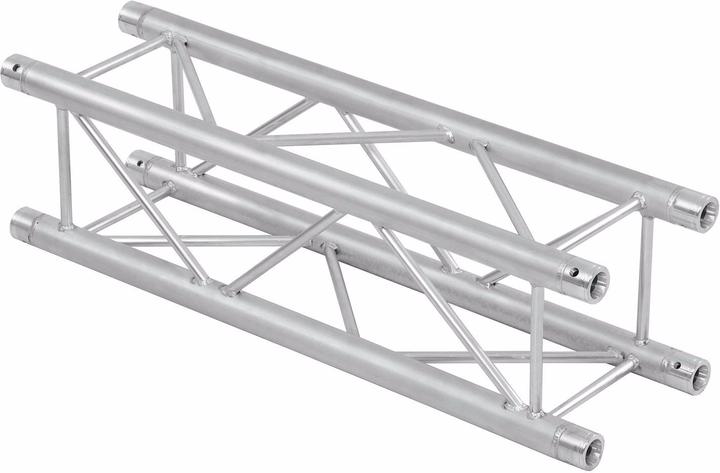

Quadlock QL-ET34 4-point truss system

The Quadlock QL-ET34 is a 4-point aluminum truss system connected by four conical connectors, pins, and cotter pins. It uses the strong alloy EN-AW 6082 T6 (AlMgSi1 T6) for high load capacity. The advantage of conical connectors is that they are force-locked and form-fitted to the harness tube, guaranteeing maximum load capacity. The Quick-Lock system allows for fast, efficient, and visually appealing assembly with frequent assembly and disassembly.

The four chord tubes are made of 50 mm aluminum tubing with a 2 mm wall thickness, giving this system an excellent weight-to-load ratio. The struts have a diameter of 20 mm with a 2 mm wall thickness, providing stability. With external dimensions of 290 mm, this is a stable truss system for heavier loads and longer durability. This truss system is primarily designed for intensive use in stage construction, exhibition stand construction, event technology, and also for permanent installations in discotheques and theater facilities.

Its polished surface makes this universal system a real eye-catcher. Due to its extensive range of standard system lengths, corners, and accessories, this system is highly versatile and offers endless design possibilities. The production of this truss system is supervised by TÜV. The load table as a basis for calculation can be downloaded before purchase.

Alutruss truss elements are manufactured in Europe and welded together by specially trained welders certified by SLV. Please note: This truss system must never be combined with other systems!

• Solid EN-AW 6082 alloy for high load capacity
• High quality aluminum tubes with 50 mm diameter
• Easy assembly
• Low weight

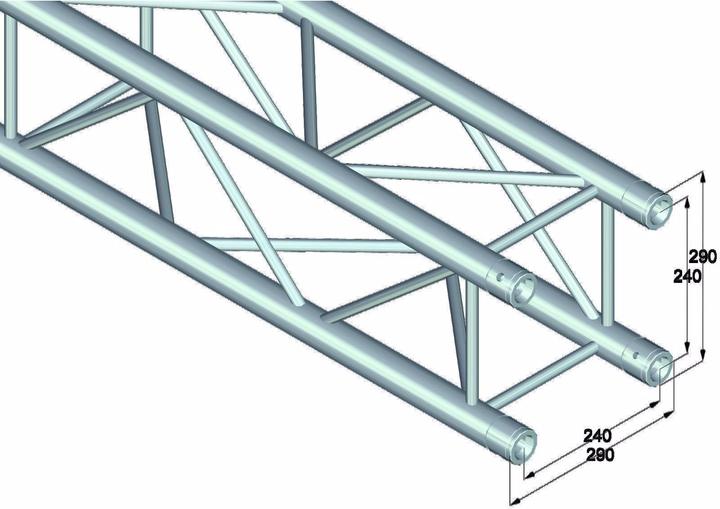

• Distance hole center - hole center: 240 mm
• For trade fair and store construction, discotheque and theater installations
• Includes 1 connector set
• Belt tube: 50 mm
• Made in Europe.
