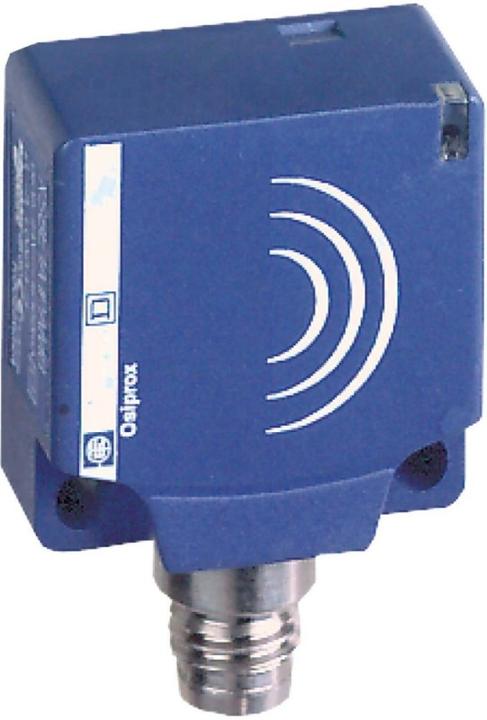

The Yageo XS7 industrial proximity sensor is a universal flat inductive proximity sensor with a PBT housing and a switching distance of 10 mm. The sensor has a width of 26 mm, a height of 26 mm, and a length of 13 mm. It features a flush mechanical installation condition and a normally open switching function. It is equipped with a PNP/PNP switching output and an M8 connector. The sensor has a rated supply voltage of 12-24 V DC and a rated current of 50 mA. It is mounted directly on a surface with 4 screw mounting points and is certified by C-Tick, ECOLAB, CSA, and UL.

Features:

• Sensor width: 26 mm
• Sensor height: 26 mm
• Sensor length: 13 mm
• Mechanical installation condition for sensor: flush
• Switching distance: 10 mm
• Suitable for safety functions: no
• Type of switching function: normally open
• Type of switching output: PNP/PNP
• Type of electrical connection: M8 connector
• Number of semiconductor outputs with signaling function: 1
• Number of contact outputs with signaling function: 0
• Number of safe semiconductor outputs: 1
• Number of safe contact outputs: 0
• Type of actuation: metallic target
• Housing design: rectangular
• Housing coating: other
• Cascadable: no
• Category according to EN 954-1: 1
• Performance Level according to EN ISO 13849-1: none
• Max. output current at safe output: 100 mA
• Supply voltage: 12 V
• Voltage type: AC/DC
• Switching frequency: 1000 Hz
• Housing material: plastic
• Pressure resistant: no
• Explosion protection category for gas: none
• Explosion protection category for dust: none
• Immunity to magnetic fields: immune to magnetic DC fields
• SIL according to IEC 61508: none.
