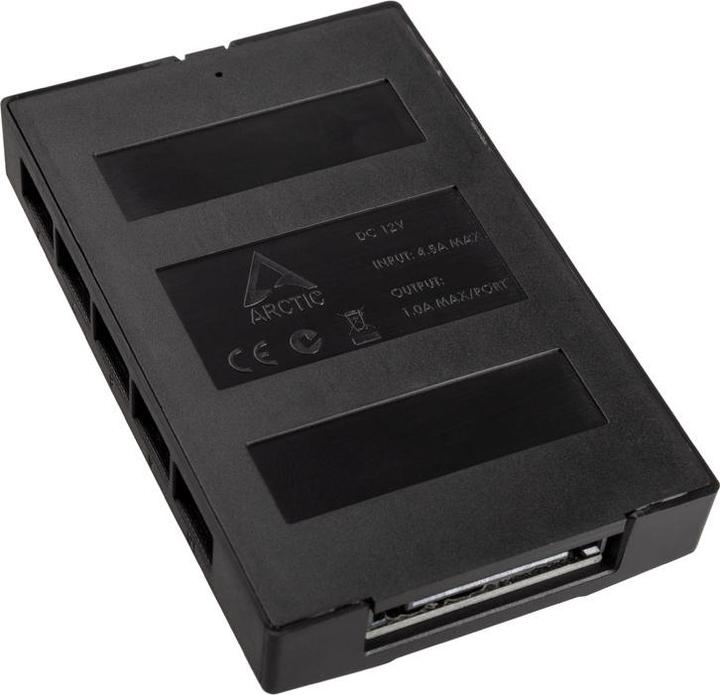

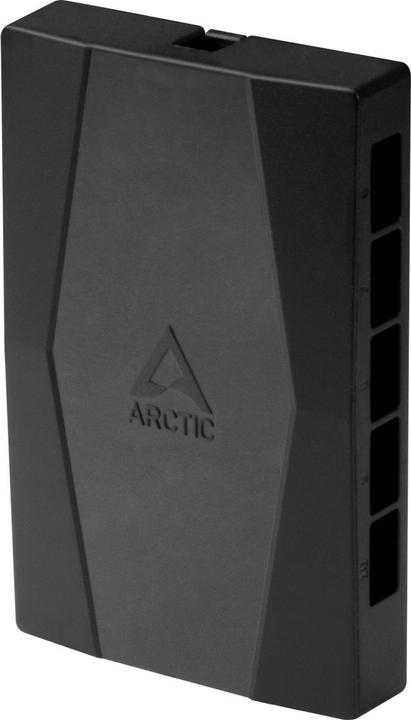

The function of the Arctic Case Fan Hub is as simple as it is brilliant: it allows for the control of up to ten 4-pin fans with a PWM signal right out of the box. To set it up, simply connect the included 4-pin PWM cable to a 4-pin fan header on the motherboard and connect the SATA power cable to the power supply. Now, you can directly connect up to ten 4-pin fans to the hub and control them via a PWM signal.

Overview of the Arctic Case Fan Hub:

• Hub from Arctic for ten 4-pin fans
• Controlled via the PWM signal from the motherboard
• Power supply via SATA cable
• Cables and mounting materials included

PWM Control via Motherboard
With the 10-port fan hub from Arctic, you can operate and simultaneously control up to ten 4-pin PWM fans using just one 4-pin connection on the motherboard. The fan hub connects to a free 4-pin port on the motherboard and is powered via SATA from the power supply. That's it. All connected fans will now be controlled via a PWM signal. The speed signal from the first fan is read and passed on to the motherboard.

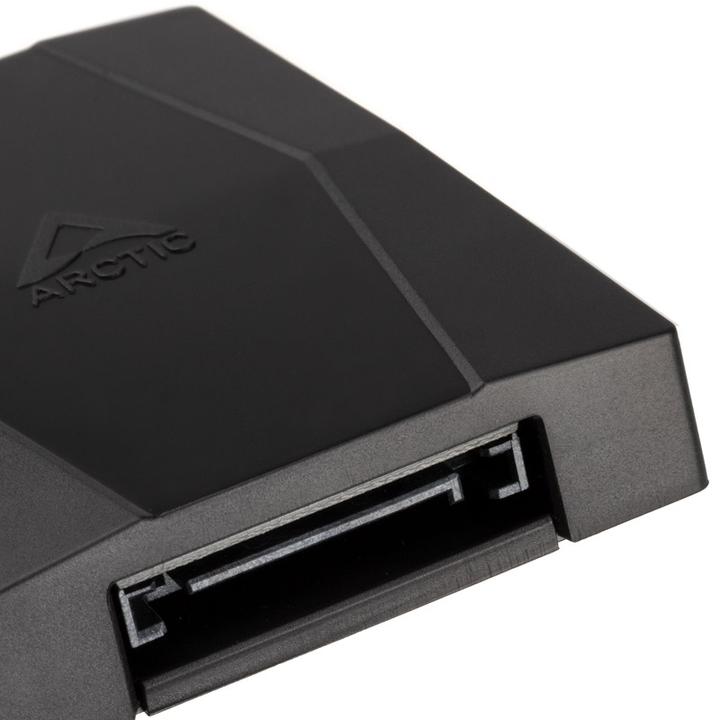

The separate power supply via the SATA power cable ensures a continuous power flow and prevents overloading the 4-pin port on the motherboard. For installation in the case, two self-adhesive Velcro strips and magnetic strips are included. These allow for flexible placement of the hub, for example, on the back of the motherboard tray.

Technical Details:

• Color: Black
• Connections:

1x SATA power (power supply)
1x 4-pin PWM (motherboard)
10x 4-pin PWM (fans)

• Package Contents:

PWM Hub
1x 4-pin PWM connection cable (motherboard)
2x self-adhesive magnetic strips
2x self-adhesive Velcro strips.
