ASUS PRIME B860-PLUS WIFI
LGA 1851, Intel B860, ATX1 item ordered
Product details
B860-Plus WiFi
ASUS PRIME Series motherboards are expertly designed to realise the full potential of Intel Core Ultra (Series 2) processors. The PRIME B860-PLUS WiFi motherboard features a robust power supply design, comprehensive cooling solutions and intelligent tuning options. It offers users and PC DIY builders a range of performance optimisations via intuitive software and firmware functions. Designed to be "Advanced AI PC-ready", it provides the necessary performance and connectivity for demanding AI applications.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), USB 2.0 Header (1x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header, S/PDIF header, Thunderbolt header |
Item number | 53895495 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1K50-M0EAY0 |
Release date | 2/12/2024 |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Power-On Button, Reset button, RGB header, S/PDIF header, Thunderbolt header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x) |
Network connections | RJ45 2.5 Gigabit Ethernet (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 (2x), USB 2.0 Header (1x) |
Expansion slot | PCI Express x16 (4x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

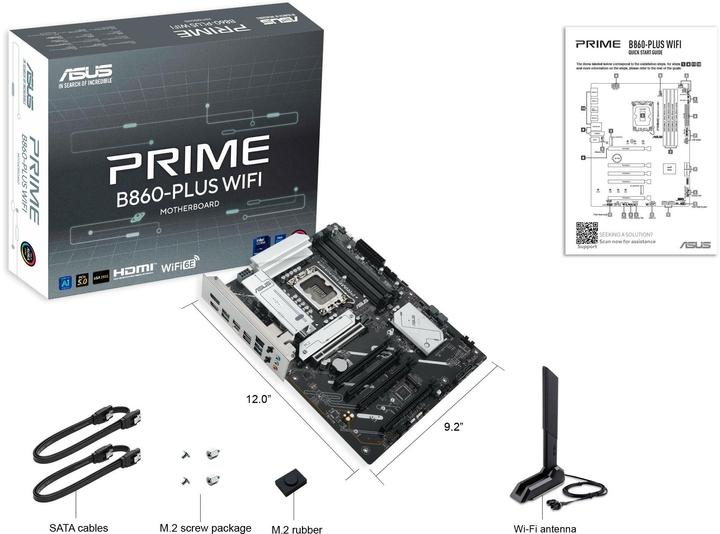

Scope of delivery | Sata Cables, Screws (1 piece) |
Length | 244 mm |
Width | 305 mm |
Height | 302 mm |
Weight | 1660 g |
Length | 16 cm |
Width | 27.50 cm |
Height | 7 cm |
Weight | 1.55 kg |
