The ASUS Prime Z790-P is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. This motherboard is compatible with 12th and 13th generation Intel Core CPUs, codenamed Alder Lake and Raptor Lake. It supports DDR5 memory with speeds of up to 7,200 MHz and is particularly well-suited for overclocking due to its exceptional power delivery.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Item number | 22514027 |
Manufacturer | ASUS |
Category | Motherboards |
Product Safety | |
Release date | 22/9/2022 |
Form factor | ATX |
Socket | LGA 1700 |
Chipset | Intel Z790 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5-4800, DDR5-5200, DDR5-5600, DDR5-6000, DDR5-6200, DDR5-6400, DDR5-6600, DDR5-6800 |
Max. RAM OC | 7200 MHz |
Supported memory speed | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Gigabit Ethernet |
Max. port speed | 2.50 Gbit/s |
Chip | High Definition Audio |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm Line In (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA III (1x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 6 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 8-pin EATX 12V |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

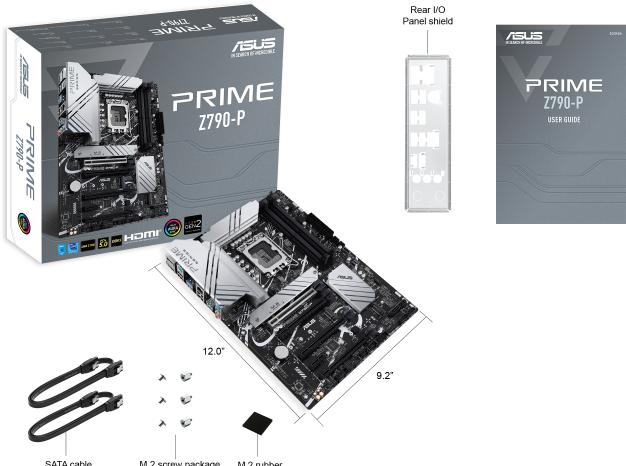

Scope of delivery | Beater, Sata Cables |
Length | 234 mm |
Width | 305 mm |
Height | 27.50 mm |
Weight | 1580 g |
Length | 35 cm |
Width | 27.70 cm |
Height | 6.90 cm |
Weight | 1.57 kg |
Product Safety |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
... The upper graphics card slot communicates with the CPU via PCI Express 5.0, provided that graphics cards with this interface are available in the future. The three other PEG slots also mechanically accept x16 cards. However, they are all connected to the Z790 via four PCIe 4.0 lanes, which limits the throughput to around 8 GByte/s per direction...
