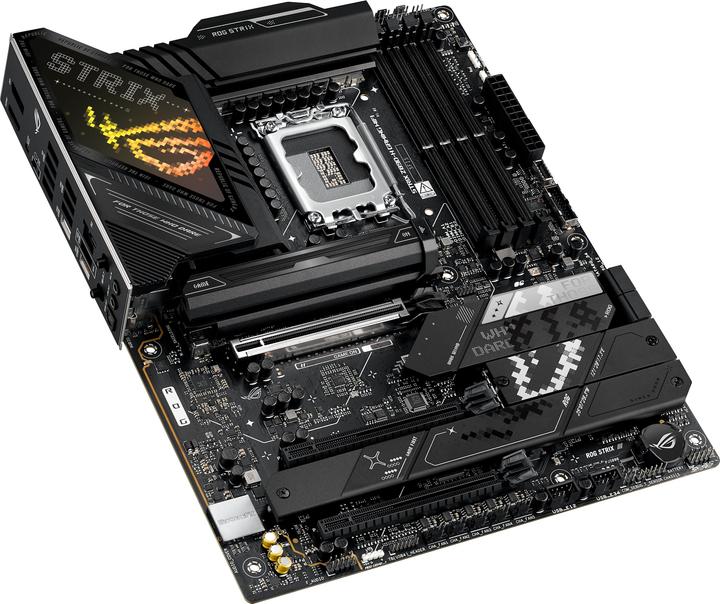

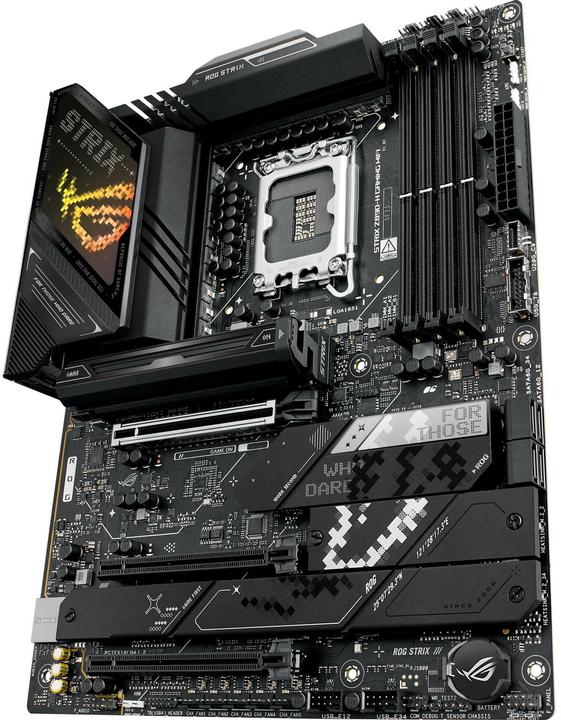

ASUS ROG STRIX Z890-H GAMING WIFI
LGA 1851, Intel Z890, ATX5 pieces in stock
Product details
Ready for advanced AI PCs: Designed for the future of AI computing, with the performance and connectivity needed for demanding AI applications.
Intel LGA 1851 socket: Ready for Intel Core Ultra processors (Series 2).
Exclusive AI technologies: NPU Boost, ASUS AI Advisor, ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II.
Exclusive memory technologies: DIMM Fit, DIMM Flex and AEMP III to simplify setup and improve performance.
Robust power supply: 16(80A)+2(80A)+1(80A)+2(80A) power amplifiers with ProCool II power connectors, MicroFine alloy chokes and high-quality metal capacitors.
Optimised cooling design: Massive heat sinks with integrated I/O cover highly conductive thermal pads and are connected to an L-shaped heat pipe.
M.2 support: One PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, all with extensive cooling solutions.
Versatile connectivity: USB 20Gbps Type-C port on the rear with up to 30 watts Power Delivery fast charging plus USB Wattage Watcher, four additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot and full support for next-generation graphics cards, HDMI 2.1 and DisplayPort 1.4.
High performance networking: Integrated Intel Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5Gb Ethernet.
DIY-friendly design: PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, BIOS Q-Dashboard, Q-LED, FlexKey button, BIOS FlashBack button, Clear CMOS button and pre-assembled I/O Shield.
Immersive audio: Realtek ALC1220P codec with Savitech SV3H712 amplifier, together with Dolby Atmos.
Unrivalled customisation: I/O cover with Polymo Lighting, three Gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting.
Renowned software: ASUS DriverHub, Dolby Atmos, TurboV Core, GlideX, HWiNFO, bundled 60-day AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard.
Mainboard features | Front panel audio connector, Temperature sensor connections, Thunderbolt header |
Wireless transmission | Bluetooth, Wi-Fi |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR5 RAM |
Internal connection options | 15-pin S-ATA (4x), M.2 PCIe (4x) |
Item number | 54430313 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1K20-M0EAY0 |
Release date | 5/2/2025 |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel Z890 |
Mainboard features | Front panel audio connector, Temperature sensor connections, Thunderbolt header |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | DisplayPort 1.0, HDMI 1.0 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Intel |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC1220P |
Audio channel | 7.1 Channel |
Audio Connections | Microphone |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | 15-pin S-ATA (4x), M.2 PCIe (4x) |
Expansion slot | PCI Express x16 (Gen 4) (2x), PCI Express x16 (Gen 5) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 7 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 1 (4x), USB-C 3.2 Gen 2x2 (2x) |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 3863,35 kg |
Climate contribution | EUR 17,11 |
Scope of delivery | Aerial, Sata Cables |
Length | 244 mm |
Width | 305 mm |
Height | 68 mm |
Weight | 2520 g |
Product Safety |
Length | 35.50 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 2.34 kg |
