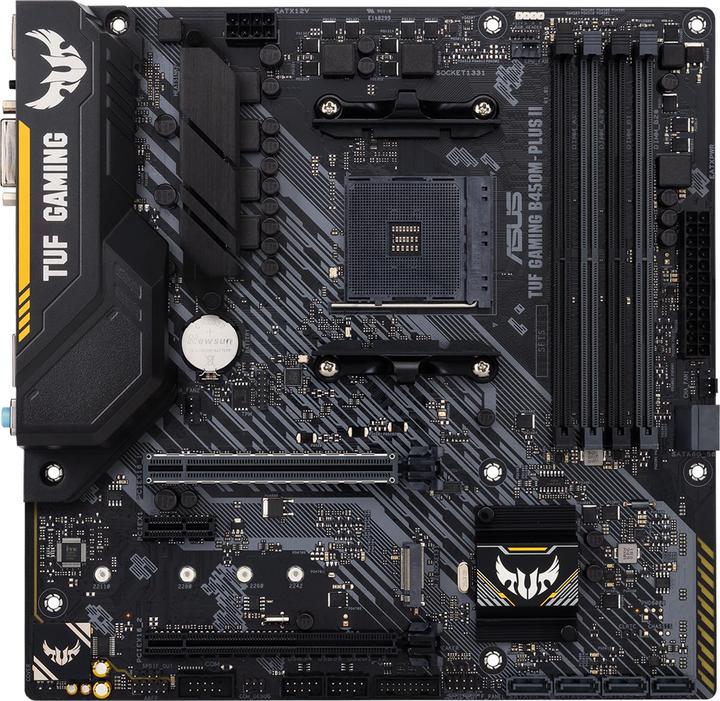

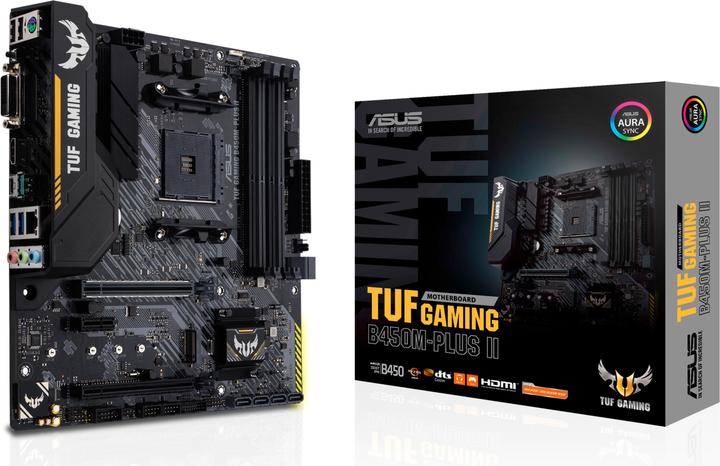

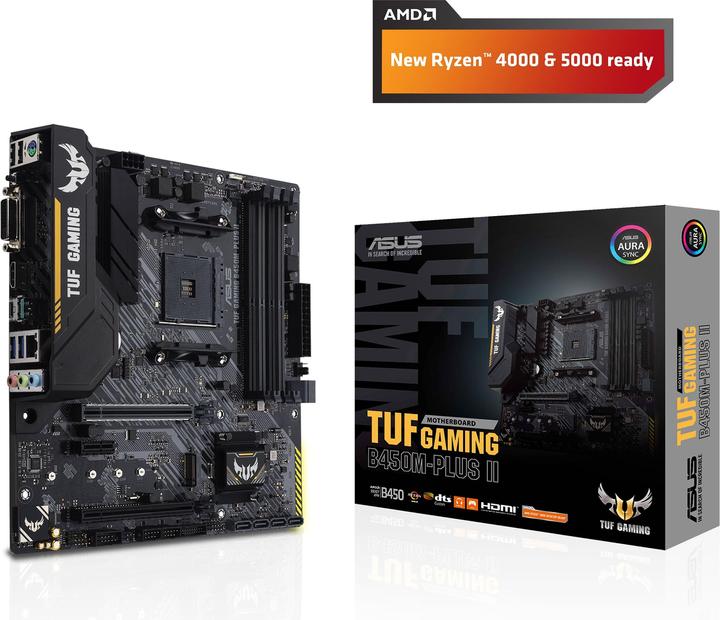

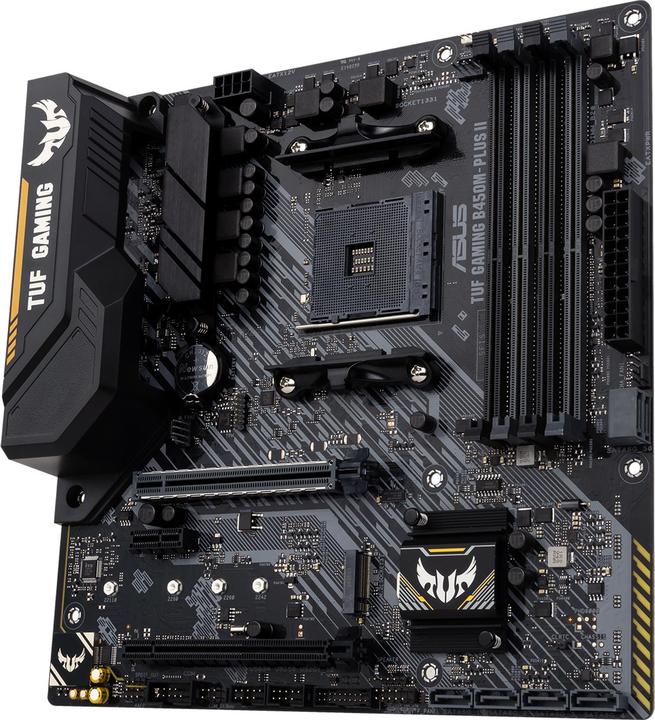

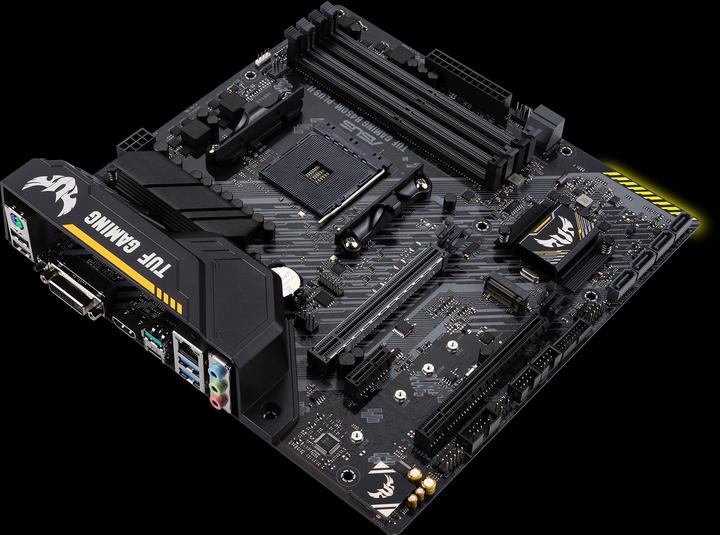

ASUS TUF B450M-Plus II Gaming
AM4, AMD B450, mATXOnly 3 pieces in stock
Product details
Durable. Stable. Reliable.TUF gaming motherboards are purposefully designed and tested to perform in conditions that would challenge other boards. Engineered with military-grade components, enhanced power supplies and a comprehensive range of cooling options, the motherboard delivers top-notch performance with unwavering in-game stability.When you assemble a system with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance - an ASUS collaboration with trusted partner companies that guarantee their hardware is easy to assemble, optimally compatible and looks the part, from components to chassis.Multiple Temperature SourcesFor load-based cooling, each port can be assigned two user-configurable temperature sensors that it monitors and responds to - all easily set via Fan Xpert 2+.
Processor family | Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCIe (1x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button, Front panel audio connector, Onboard processor, RGB header, Trusted Platform Module |
Item number | 14007352 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1620-M0EAY0 |
Release date | 7/10/2020 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Clear CMOS Button, Front panel audio connector, Onboard processor, RGB header, Trusted Platform Module |
Operating system compatibility | Windows 10, Windows 7 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3 4th Gen, Ryzen 3 5th Gen, Ryzen 5 4th Gen, Ryzen 5 5th Gen, Ryzen 7 4th Gen, Ryzen 7 5th Gen, Ryzen 9 4th Gen, Ryzen 9 5th Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2666 |
Max. RAM OC | 4400 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz, 4000 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0b |
Multi-GPU technology | AMD 2-Way CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | RTL8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCIe (1x), S-ATA III (6x) |
Expansion slot | PCI Express x1 (1x), PCI Express x16 (1x) |
PCI express version (max.) | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 20+8 pin ATX, 24-pin EATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

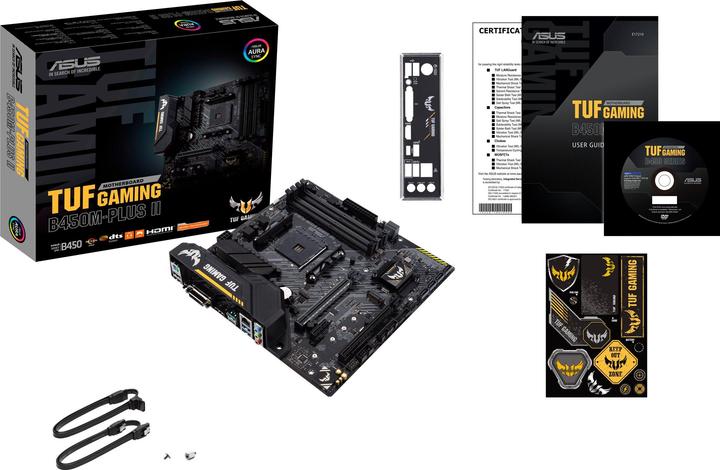

Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 259 mm |
Weight | 849 g |
Length | 26.70 cm |
Width | 27.90 cm |
Height | 6.90 cm |
Weight | 1.06 kg |
