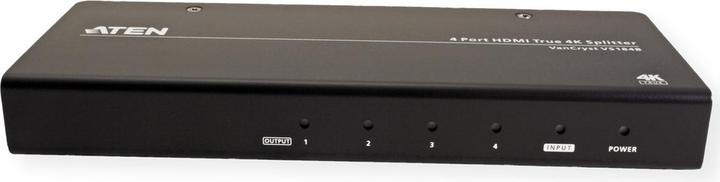

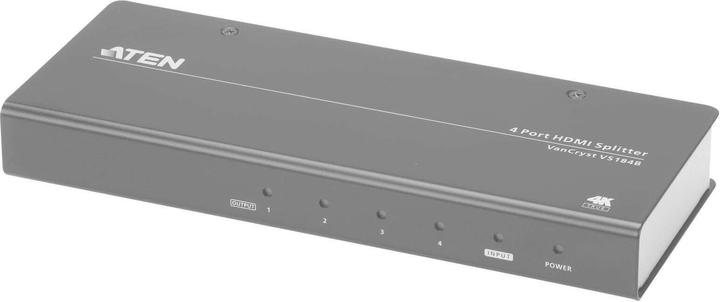

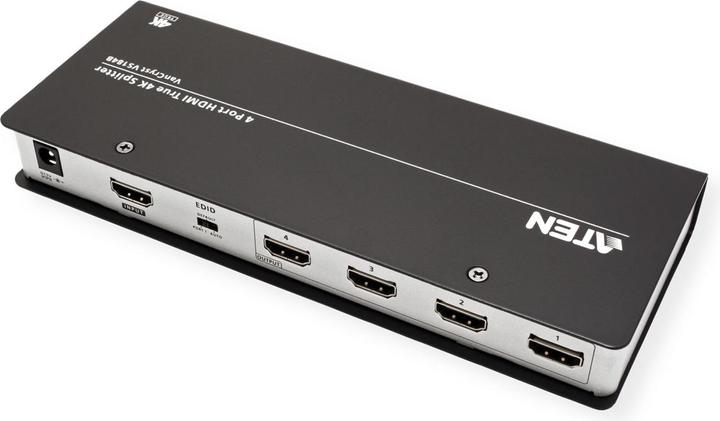

The VS184B True 4K HDMI Splitter is the perfect solution for anyone needing to send a source of digital HD videos to four screens simultaneously. It supports all HDMI-capable devices such as DVD players, satellite set-top boxes, as well as HDMI monitors, screens, projectors, or televisions. The VS184B True 4K HDMI Splitter is HDMI 2.0 compatible, offers 4K at 60 Hz (4:4:4), and supports multiple audio streaming, making it suitable for use in home theater applications as well as in business, educational, and commercial environments.

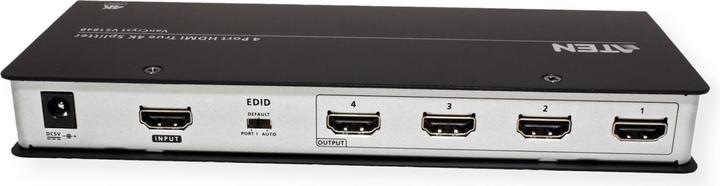

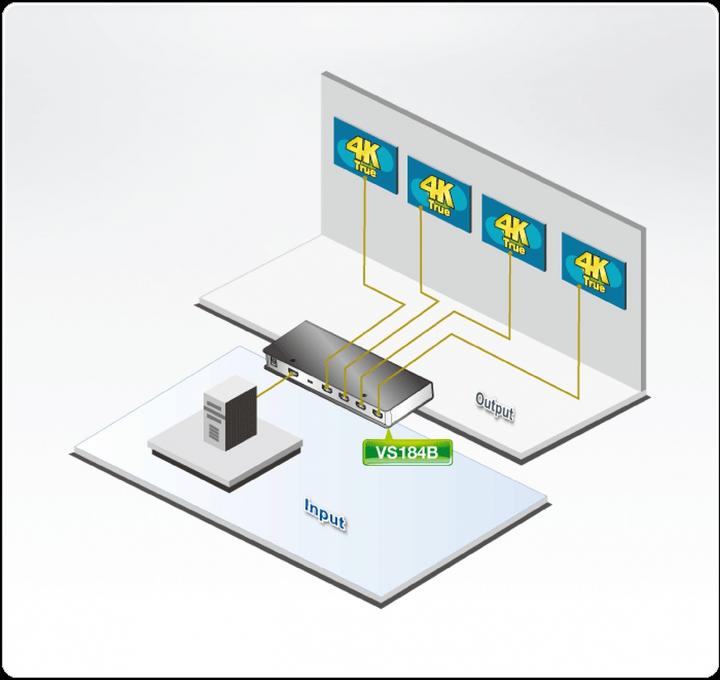

It connects one HDMI source to four HDMI screens at the same time. It supports HDMI (3D, Deep Color, 4K) and is HDCP 2.2 compliant. It supports HDR and maximum resolutions up to 4096 x 2160 / 3840 x 2160 at 60 Hz (4:4:4). The transmission distance reaches up to 15 m (1920 x 1200) / 1.8 m (true 4K). The maximum pixel clock rate is up to 600 MHz and the maximum data rate is up to 18 Gbps (6 Gbps per lane). An LED display shows the operating status and source devices. Plug-and-play – no software installation required. The EDID expert selects optimal EDID settings for smooth power-up, display, and use of optimal resolutions via the EDID DIP switch, allowing users to effortlessly switch between Port 1, Standard, and Auto.
