−69%

Belden Coupling

Price in EUR including VAT
was EUR57,90
Ratings
BrandMore from Belden
Delivered between Tue, 16/9 and Thu, 18/9
More than 10 pieces in stock at supplier
Free shipping starting at 30,–

Product details

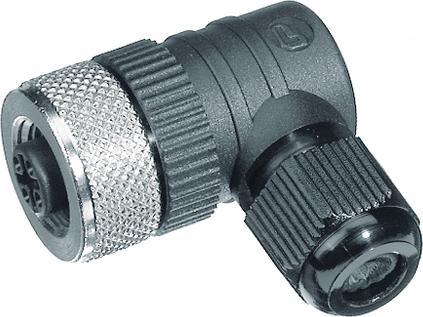

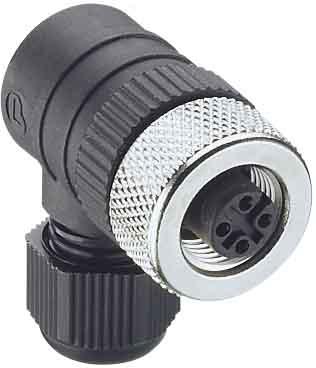

Belden coupling with screw connection, angled RKCW 4/7. Manufacturer: Belden. Description: Coupling with screw connection, angled, 4-pole, M12. Type: RKCW 4/7. Contact configuration: Socket. Connector diameter: 19.6 mm. Number of data contacts: 4. Number of power contacts: 4. For cable outer diameter: 4 to 8 mm. Housing design: angled. Rated current: 4 A. Rated voltage: 240 V. Degree of pollution: 3. Connectable conductor cross-section for single wire: 0.14 to 0.75 mm². Connectable conductor cross-section for multi-wire: 0.14 to 0.75 mm². Type of electrical connection: screw connection. Material of contact coating: other. Material of housing: plastic. Housing coating: plastic-coated. Material of the threaded ring: brass. Type of locking: screw locking. Flammability class of the insulating material according to UL 94: other. Protection class (IP), mounted: IP67. Minimum number of mating cycles: 100. Shielded: no. With status indicator: no. EAN: 4020841134692.

Key specifications

Item number
20684870

General information

Manufacturer
Belden
Category
Cables + Plugs
Manufacturer no.
11258
Release date
27/4/2022

Material

Material group
Plastic
Material
Brass, Plastic

Cable + Connector Features

Max. temperature
90 °C
Min. temperature
-25 °C
Manufacturer Type
7, RKCW 4
Connectors Design
Angled
Number of cores
4 x

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
6 cm
Width
3.40 cm
Height
2 cm
