Busch-Jaeger Push Button Insert 2020 US-201

Manufacturer: Busch-Jaeger
Designation: Push Button Insert 1-pole Normally Open
Type: 2020 US-201
Composition: Base Element
Design: Single Push Button
Operation Type: Push Button
Number of Contacts as Normally Open: 1
Contactless Design: No
Number of Actuation Buttons: 1
Number of Poles: 1
Rated Voltage: 250 V
Rated Current: 10 A
With Illumination: No
With Light Source: No
With Signal Lamp: No
Feedback Contact: Yes
Connection Type: Plug Terminal
Mounting Type: Flush Mount
Mounting Method: Clip/Screw Mounting
Material: Plastic
Material Quality: Thermoset
Halogen-Free: Yes
Antibacterial Treatment: No
Surface Protection: Untreated
Surface Finish: Matte
Color: Blue
RAL Number (similar): 5010
Transparent: No
Text Field/Label Area: No
Printing: None
Suitable for Protection Class (IP): IP20
Device Width: 71 mm
Device Height: 71 mm
Device Depth: 40 mm
Min. Depth of Device Box: 25 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT Support Available: No

Busch-Jaeger Push Button Insert 2020 US-201: Additional Details

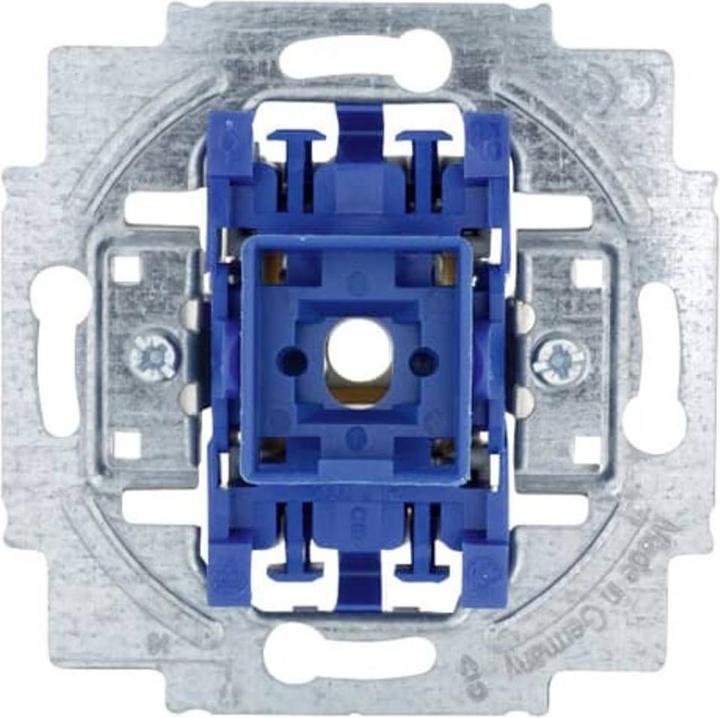

Single-pole rocker switch insert, Normally Open (working current) with two independent feedback contacts. Rear conductor connection with spring clamp and side spring release. The lamp holder can be inserted from the back. The indicator lamp can be inserted from the front.
EAN: 4011395045602.
