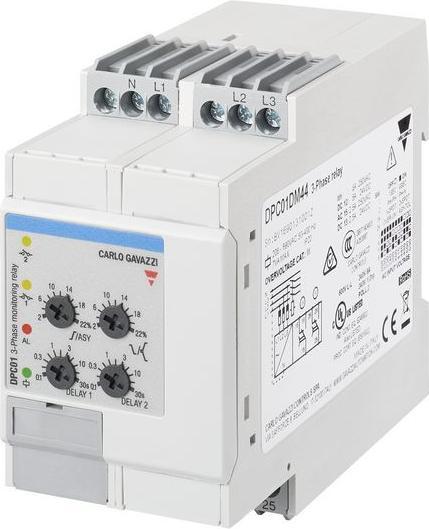

Carlo Gavazzi Phase monitoring relay Phase sequence / phase failure / overvoltage / undervoltage / overvoltage /

Price in EUR including VAT
Ratings
BrandMore from Carlo Gavazzi
Delivered between Tue, 28/4 and Fri, 8/5
Only 1 piece in stock at supplier
free shipping

Product details

The phase monitoring relay from Carlo Gavazzi, model DPC01DM69, is a highly advanced device for monitoring three phases in electrical systems. It offers comprehensive protection features, including monitoring of phase sequence, phase failure, overvoltage, undervoltage, and phase asymmetry. With a maximum operating voltage of 690 V AC and a minimum operating voltage of 600 V, this relay is suitable for a wide range of applications. Installation is straightforward on a DIN rail, making it easy to set up in various environments. The device has an IP20 protection rating and complies with several standards, including CE, CCC, and cRUus, underscoring its reliability and safety. The contact configuration with two changeover switches allows for flexible connection options, while the screw terminals ensure a secure connection. This relay is ideal for use in industrial and commercial applications where precise monitoring of phase conditions is required.

  • Monitoring of phase sequence, phase failure, overvoltage, and undervoltage
  • Maximum operating voltage of 690 V AC
  • Easy installation on DIN rail
  • Two changeover switches for flexible connection options
  • IP20 protection rating for reliable operation.

Key specifications

Relay type
Monitoring relay
Output voltage
250 V
Electric current output
8 A
Output current type
AC
Number of poles
3x

General information

Item number
43669029
Manufacturer
Carlo Gavazzi
Category
Relays
Manufacturer no.
DPC01DM69
Release date
7/3/2024

Relay properties

Relay type
Monitoring relay
Output voltage
250 V
Electric current output
8 A
Output current type
AC
Switching function
Changer
Number of openers
2x
Number of closers
2x
Number of poles
3x
Max. Switching capacity
2 kW

Smart home features

Smart home
Compatible

Origin

Country of origin
Italy

Voluntary climate contribution

CO₂ emissions
29,26 kg
Climate contribution
EUR 0,75

Product dimensions

Length
99.50 mm
Width
45 mm
Height
83.50 mm
