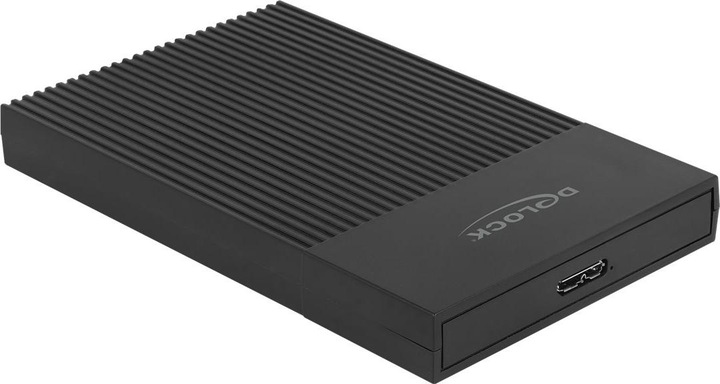

This Delock plastic enclosure is designed for the installation of a 2.5" SATA hard drive or SSD. Despite its slim design, it can accommodate drives with a height of up to 9.5 mm. The included USB Type Micro-B to USB Type-A cable allows for connection to a free USB Type-A port.

HDD / SSD installation without tools
The special feature of this enclosure is that no tools are required for the installation of the HDD. The lid can be pushed back with a little pressure, the HDD is inserted into the SATA connection, and then the lid is snapped back on until it clicks into place.

Specifications

• Connections:

external: 1 x SuperSpeed USB (USB 3.2 Gen 1) Type Micro-B port
internal: 1 x SATA 6 Gb/s 22 pin port

• Chipset: Asmedia ASM225CM
• Suitable for 2.5" SATA HDD / SSD:

Drive height up to 9.5 mm
SATA HDD / SSD up to 6 Gb/s
HDD / SSD up to 4 TB
Supports 5 V HDD / SSD

• Data transfer rate up to 5 Gb/s
• LED indicator for power and access
• Supports S.M.A.R.T.
• Supports TRIM
• Hot Plug, Plug & Play
• Dimensions (LxWxH): approx. 128 x 79 x 15 mm

System requirements

• Chrome OS 90.0 or higher
• Linux Kernel 5.8 or higher
• Mac OS 11.4 or higher
• Windows 8.1/8.1-64/10/10-64
• PC or notebook with a free USB Type-A port

Package contents

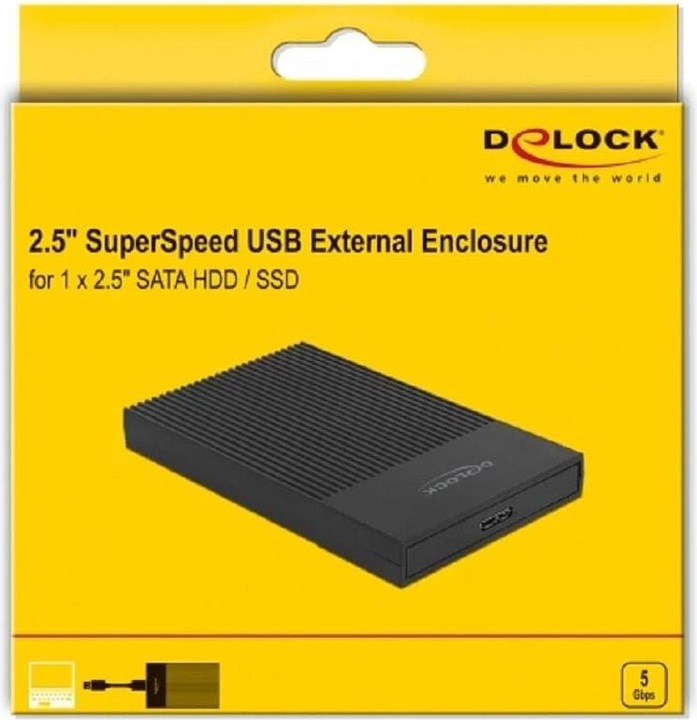

• 2.5" external enclosure

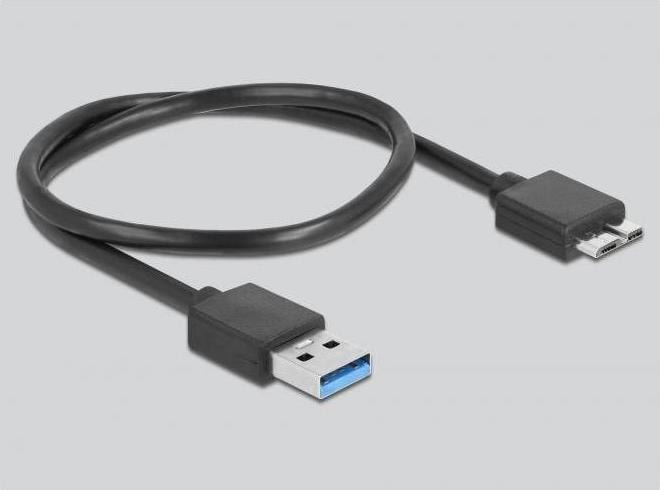

• USB 3.0 Type-A to Type Micro-B cable, length approx. 50 cm
• User manual.
