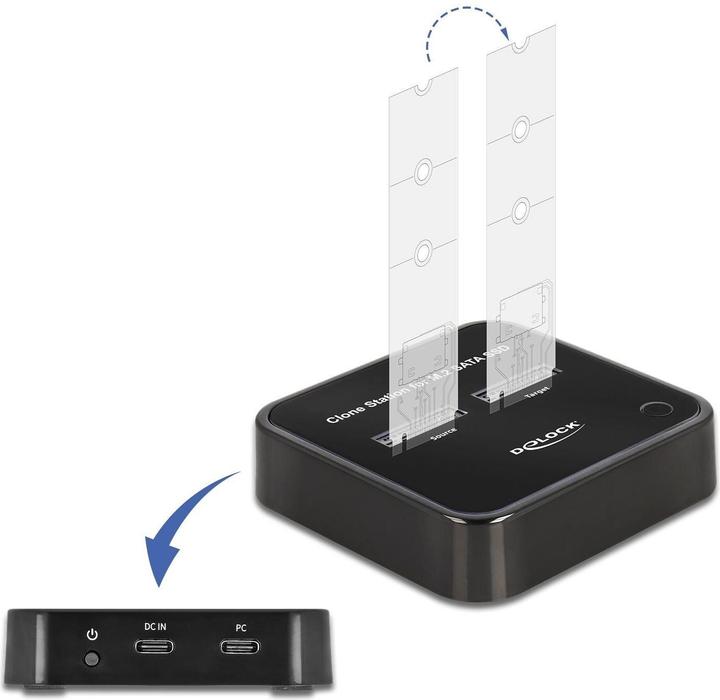

This M.2 docking station from Delock allows the operation of two M.2 SATA SSDs and can be connected to a PC or notebook via USB. The included USB cable enables connection to a free USB-C™ port.

M.2 SATA SSD Clone Function
The cloning function allows data to be copied from one SSD to another without the use of a PC.

Ideal Testing Equipment
The storage can be easily inserted into the robust housing and is ready for use immediately. No screws, tools, or accessories are needed, allowing for a quick SSD swap.

Specification

• Connections:

1 x USB 10 Gbps USB Type-C™ port
2 x M.2 Key M slots
1 x USB Type-C™ port (power supply)

• Chipset: Asmedia ASM1352R, VIA VL160
• Supports M.2 modules with Key B+M based on SATA
• Data transfer rate up to 6 Gbps
• Supports UASP
• LED indicators for power, access, and copy status
• Function buttons:

1 x Clone button
1 x Power switch

• Bootable
• Dimensions (LxWxH): approx. 72 x 79 x 18 mm
• Hot Plug, Plug and Play

Power Supply Specification

• Plug-in power supply
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 0.6 A
• Output: 5.0 V / 3.0 A

System Requirements

• Android 10.0 or higher
• Chrome OS 83.0 or higher
• iPad Pro (2018)
• Linux Kernel 5.4 or higher
• Mac OS 10.15.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Device with a free USB Type-C™ port or a free Thunderbolt™ 3 port

Package Contents

• M.2 docking station
• USB-C™ to USB-C™ cable, length approx. 45 cm
• USB-C™ to USB Type-A cable, length approx. 80 cm (power supply)
• External power supply
• User manual

Packaging

• Retail box.
