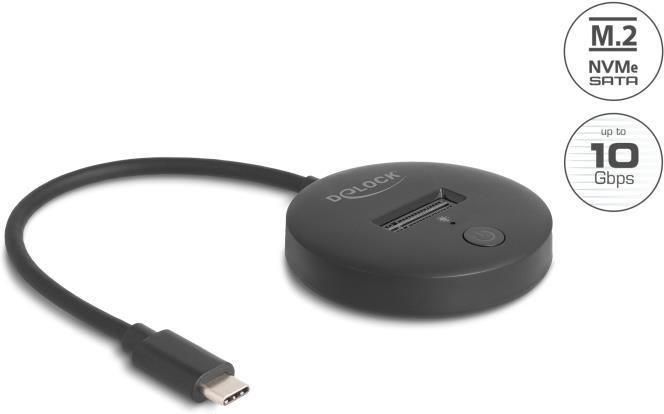

This M.2 docking station from Delock allows the operation of an M.2 PCIe NVMe SSD or M.2 SATA SSD and can be connected to a PC or notebook via USB.

The major advantage of this Delock M.2 docking station is that both SATA and PCIe (NVMe) M.2 SSDs can be inserted into the docking station. The storage is automatically recognized by the chipset and can then be used.

The M.2 SSD is simply inserted into the slot and connected to the device via a USB-C connector. Therefore, the docking station can be excellently used as testing equipment.

Specifications:

• Connections:
• 1 x USB 10 Gbps USB Type-C connector
• 1 x M.2 Key M slot
• Chipset: Realtek RTL9210B
• Supports M.2 modules with Key M or Key B+M based on SATA or PCIe (NVMe)
• Supports NVM Express (NVMe)
• Bootable
• Data transfer rate of up to 10 Gbps
• LED indicators for power and access
• 1 x Power switch
• Cable length without connectors: approx. 15 cm
• Dimensions: Diameter approx. 60 mm, Height approx. 19 mm
• Hot Plug, Plug & Play

System requirements:

• Android 11.0 or higher
• Chrome OS
• Linux Kernel 5.15 or higher
• Mac OS 12.4 or higher
• Windows 10/10-64/11
• iPad Air (4th generation) or higher
• iPad Pro (3rd generation) or higher
• Device with a free USB Type-C port or with a free Thunderbolt 3 or Thunderbolt 4 port

Package contents:

• M.2 docking station
• User manual.
