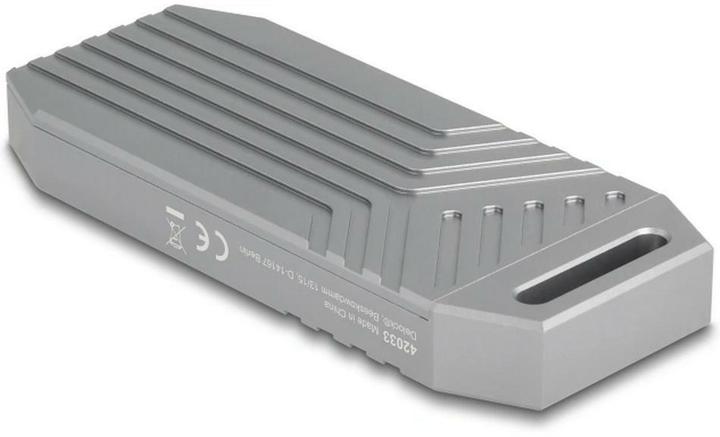

This enclosure by Delock enables the installation of an M.2 PCIe NVMe SSD in 2280 format and can be connected to a PC or notebook with Thunderbolt 3, Thunderbolt 4 or USB-C interface. The robust metal housing with cooling fins ensures an optimal temperature of the memory.

USB 40 Gbps
Thanks to the compatibility of USB 40 Gbps, the Delock housing can be connected to Thunderbolt 3 and Thunderbolt 4 ports as well as all USB Type-C ports. The maximum data transfer rate depends on the host device.

Technical data:

• Connections:

external: 1 x USB 40 Gbps USB Type-C socket
internal: 1 x M.2 Key M slot

• Chipset: Asmedia ASM2464PD
• Supports M.2 modules in 2280 format with Key M or Key B+M on PCIe (NVMe) basis
• Maximum height of the components on the module: 1.5 mm, use of double-sided modules possible
• Supports NVM Express (NVMe)
• Data transfer rate up to 40 Gbps
• LED indicator for power and access
• Metal housing
• Hot plug, plug and play
• Dimensions (LxWxH): approx. 118 x 50 x 14 mm

System requirements

• Linux Kernel 6.2 or higher
• Mac OS 13.1 or higher
• Windows 10/10-64/11
• iPad Air (4th generation) or higher
• iPad Pro (3rd generation) or higher
• Surface Pro 7
• Device with a free USB Type-C port or with a free Thunderbolt 3 port or
• Device with a free Thunderbolt 4 port

Package contents

• External M.2 enclosure
• Cable USB-C plug to USB-C plug, length approx. 25 cm
• 1 x thermal pad
• 1 x heat conduction plate
• 3 x rubber nipples
• Lanyard
• Operating instructions

Packaging

• Retail box.
