Description

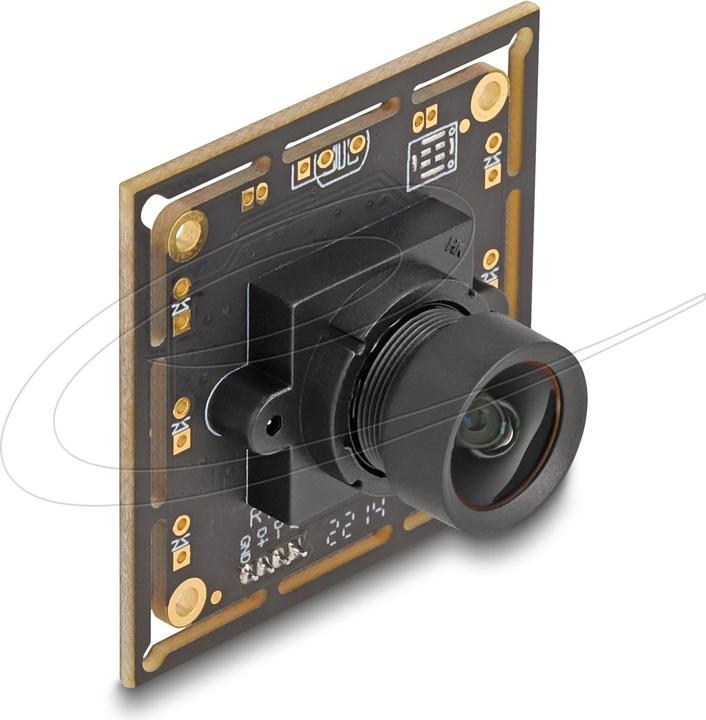

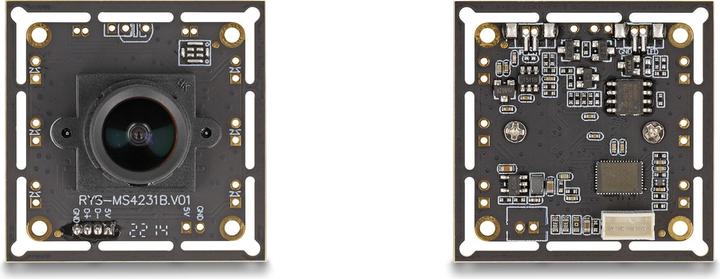

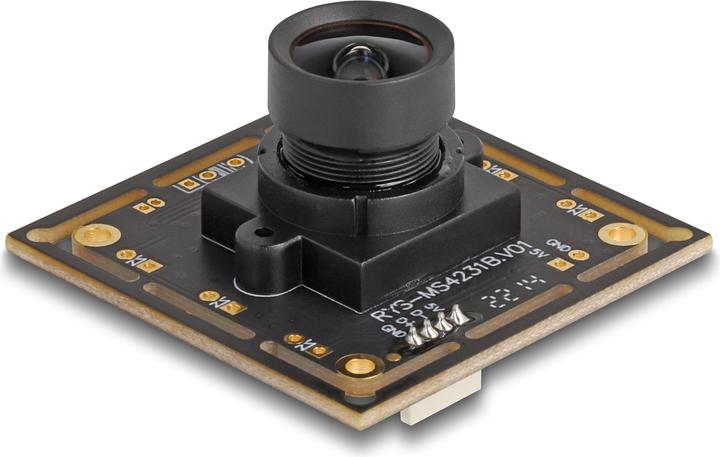

This USB 2.0 camera module from Delock offers high resolution in a very compact design with low power consumption. It is ideal for integration into industrial components such as IPCs, embedded systems, sensors, and device manufacturing. The use of a light-sensitive sensor with back-side illumination (BSI) expands the application range of this module.

HDR - High Dynamic Range
Allows for an increase in the overall dynamic range to ensure more detailed images in scenes with bright and dark areas.

Specifications

• Connection: 1 x 4 Pin USB 2.0 socket SMT, pitch 1.5 mm
• Resolution: 2.1 Megapixels
• Sensor: PS4231
• With optical IR filter
• Maximum resolution: 1080p @ 30 fps (1920 x 1080)
• Image sensor processor features:
• Automatic Black Level Calibration (ABLC)
• Embedded Local Tone Mapping
• Suppression of the Black Sun effect in CMOS sensors
• Power consumption: approx. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: -10 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.7"
• Sensitivity: 5.8 V / lx s
• Signal-to-noise ratio (SNR): approx. 41 dB
• Dynamic range: 85 dB
• Fixed focus: 0.3 m - infinity
• Aperture: F/2.8
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): approx. 38.0 x 38.0 x 16.5 mm

System Requirements

• Device with UVC support
• Windows 10/10-64/11
• DirectX 9.0c or higher
• Linux Kernel 2.6.15 or higher with Video4Linux

Package Contents

• Camera module.
