DFRobot Gravity Analogue AC Current Sensor with Current Clamp
5 pieces in stock at supplier
Product details
If you want to measure alternating current, it is often impractical and dangerous because you have to interrupt the circuit. The analog AC current sensor developed by DFRobot is a good solution to this problem. With the included current clamp, you do not need to interrupt the circuit. The measured current is converted into an analog signal that you can then evaluate on an Arduino.
Info: You can change the connection cable to male by plugging in a Dupont M-M 10cm cable, allowing you to use it with an Arduino UNO as well.
Technical Details:
Module: Operating Voltage: 3.3V - 5.5V
Analog Output Voltage: 0.2V - 2.8V (DC)
AC Signal Input Range: 0 - 1V (AC)
Relative Error: ±3%
Interface: Gravity PH2.0 3Pin
Dimensions: 32 x 27mm

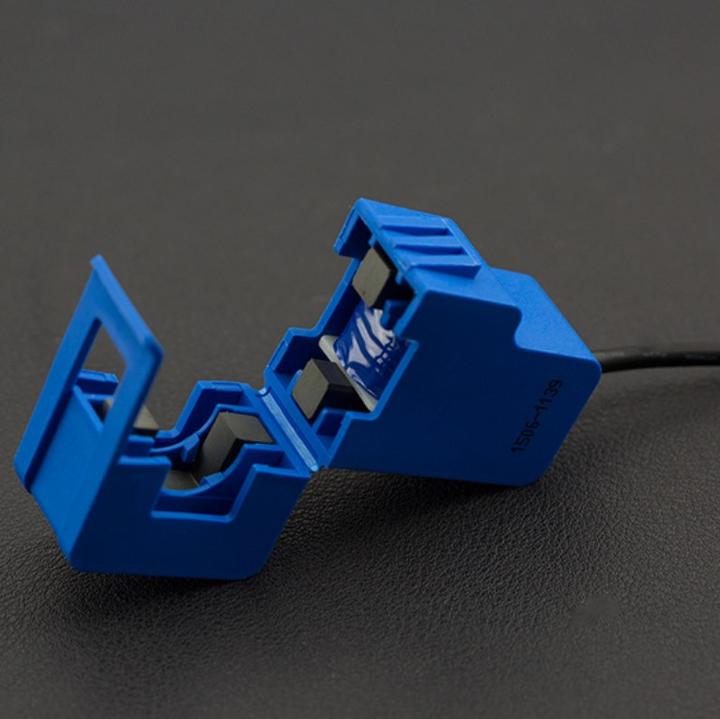

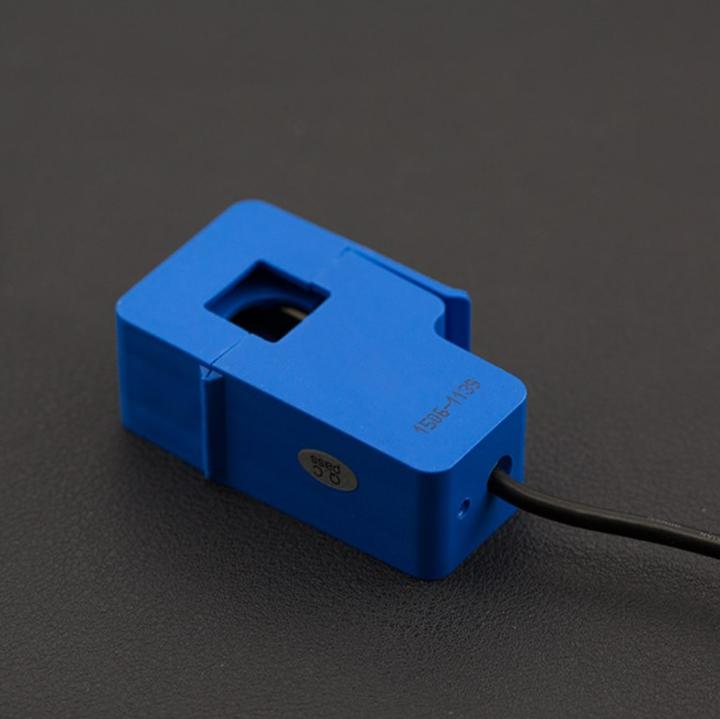

Current Clamp: AC Measurement Range: 0 - 20A
AC Signal Output: 0 - 1V / 0-20A
Nonlinearity: ±3% (10% to 120% of rated input current)
Cable Length: 1.5m
Operating Temperature: -25°C to +70°C
Dimensions: 13 x 13mm

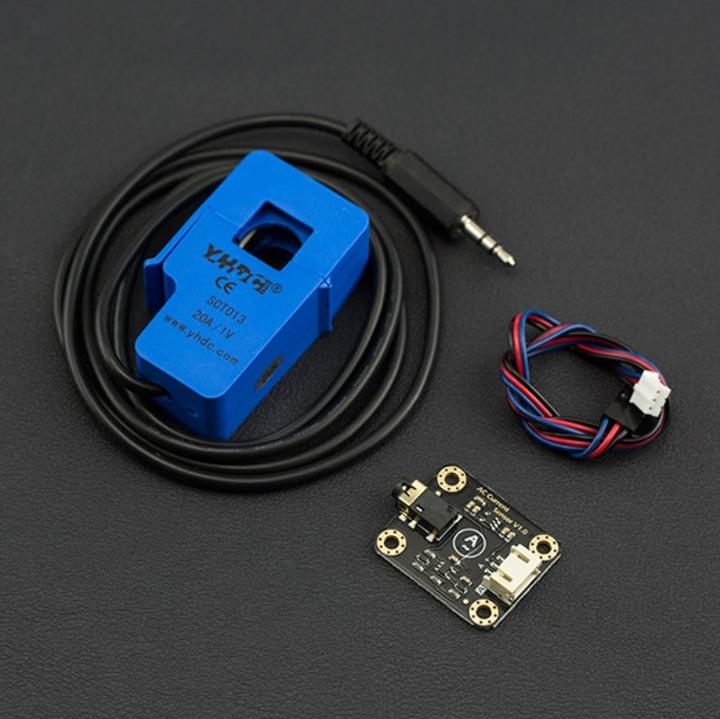

Delivery Includes:
1x Gravity Analog AC Current Sensor
1x Current Clamp
1x Analog Sensor Cable 20cm.
