Function & Features

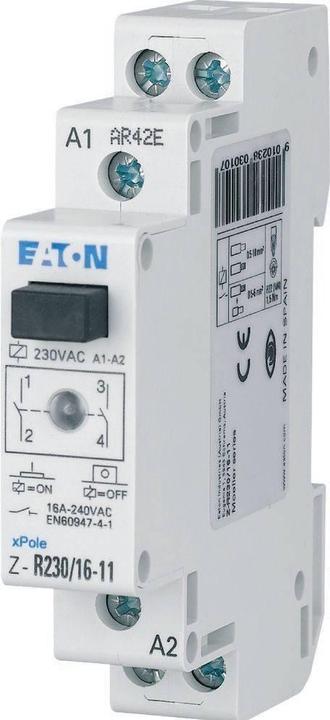

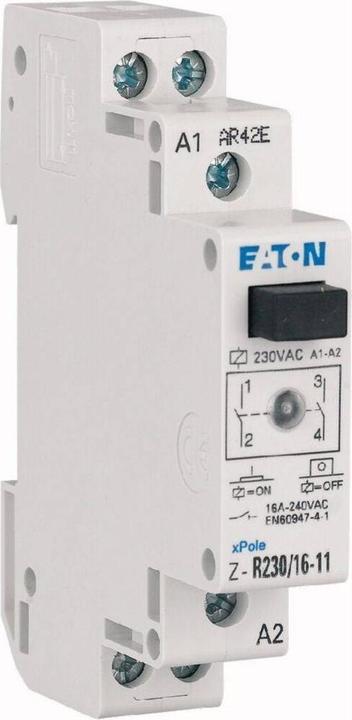

The new installation relays Z-R 16A are based on an innovative printed relay platform and are suitable for switching single-phase loads up to 16 A. They feature manual operation for testing purposes and can be used for various switching and control applications. The innovative printed relay platform offers a compact design and is characterized by a noise-free operation. It complies with EN 61095 and provides high flexibility through various contact configurations. The devices are designed for quick mounting on DIN rails and offer easy connection through generously sized terminals.

Application Area
The Z-R 16A installation relays provide universal solutions for control and switching tasks in building technology as well as in home installations. They are particularly suitable for switching lighting, electric heating, ventilation and air conditioning systems, fans, and heat pumps. Due to their noise-free operation, the Z-R 16A series is especially suitable for use in hotels, hospitals, and offices.

Main Features
Product Color: White
Number of Poles: 2
Coil Voltage: 24 V
Contact Current Rating: 16 A
LED Indicators: Status
Certification: IEC/EN 60947-4-1
Power: AC
Input Voltage: 240 V AC
Input Frequency: 50 - 60 Hz
Output Frequency: 50/60 Hz
Current: 16 A.
