Housing material = Polycarbonate
External dimensions = 278 x 278 x 180mm
Length outside = 278 mm
Width outside = 278 mm
External height = 180 mm
IP protection class = IP66, IP67
Color = Grey
Lid colour = grey
Series = SOLID PC
Shielded = No

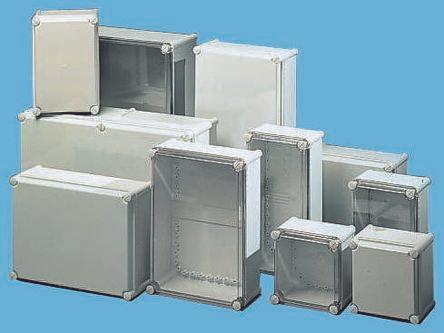

SOLID series - IP67. The Fibox SOLID series is an excellent choice for housing electronic and electrical components. The housing is made of light grey (RAL7035) polycarbonate. This versatile enclosure provides comprehensive indoor and outdoor protection. Properties and advantages. Polyurethane seal provides protection inside the box. Flammability class: UL 94-5 V. The scope of delivery includes 4 countersunk cover screws and fixing screws for fixing the electrical device. Can be equipped with chassis plates and a DIN rail for mounting built-in devices. Operating temperature range is -40 °C to +80 °C (max. +120 °C short-term). Protection class IP67. Typical applications:. Cable routing. Traffic surveillance. IT/Server. Solar power batteries. Oil and gas industry. Food and beverage industry. Telecommunications (IP, Ingress Protection) Protection against penetrating media and what that means. The IP rating classifies the effectiveness of protection against penetration of solids (including body parts such as hands and fingers), dust, accidental contact and water into electrical enclosures. Frequently Asked Questions. Can the housing be used outdoors? This IP67 enclosure is completely weatherproof. What is included in the delivery?. Basic body with screws for mounting plate/ DIN rail, cover with PUR seal and cover screws made of polyamide.
