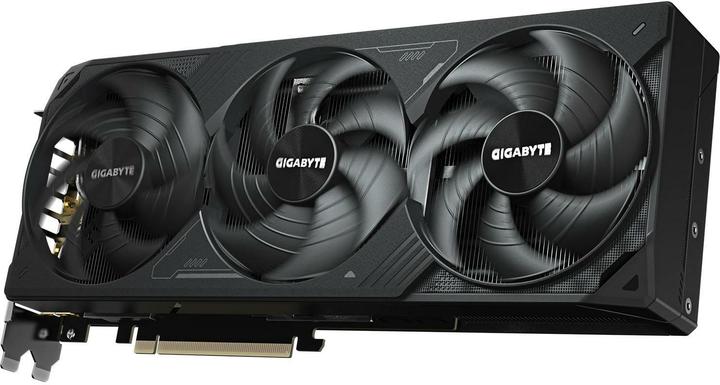

The WINDFORCE cooling system offers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermally conductive gel, innovative Hawk fans with alternating rotation, copper composite heatpipes, a large vapour chamber, active 3D fans and screen cooling.
The Hawk fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in an increase in air pressure of up to 53.6 % and air volume of 12.5 % without compromising acoustics.
PCI Express version | PCIe 5.0 |
Expansion card form factor | 3 slots |
Graphics card model | GeForce RTX 5080 |
Video memory clock | 30 GHz |
Graphics card cooling system | Active cooler |
Power consumption | 360 W |
Length | 30.40 cm |
Item number | 53969806 |
Manufacturer | Gigabyte |
Category | Graphics card |
Manufacturer no. | GV-N5080WF3OC-16GD |
Release date | 17/7/2025 |
LED colour | without LED |
Max. connected monitors | 4x |
PCI Express version | PCIe 5.0 |
Max. video resolution | 7680 x 4320 pixels |
Expansion card form factor | 3 slots |
Housing compatibility | NVIDIA SFF-Ready |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 5080 |
Clock frequency | 2295 MHz |
Boost frequency | 2670 MHz |
Number of shaders | 10752x |
Video memory type | GDDR7 |
Storage capacity | 16 GB |
Video memory clock | 30 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 960 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 3x |
GPU microarchitecture | NVIDIA Blackwell |
GPU manufacturer technology | NVIDIA G-Sync |
DirectX version | 12 |
OpenGL version | 4.6 |
Video connections | DisplayPort (3x), HDMI (1x) |
HDMI version | 2.1b |
DisplayPort version | 2.1b |
Power consumption | 360 W |
Min. recommended system performance | 850 W |
Power connectors | 12V-2x6 |
Country of origin | China |
CO₂ emissions | 49,21 kg |
Climate contribution | EUR 1,25 |
Length | 30.40 cm |
Width | 12.60 cm |
Height | 5 cm |
Product Safety |
Length | 40 cm |
Width | 23.50 cm |
Height | 9 cm |
Weight | 1.93 kg |
How often does a product of this brand in the «Graphics card» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Graphics card» category returned?
Source: Galaxus
Nvidia put a lot of effort into the first two RTX 5000 cards with limited success. The increase in performance compared to predecessors and competitors is low for a new architecture, but the increase in power consumption is all the higher. However, as Nvidia dominates the market, it is not an alternative to switch to the older RTX 4000 models...
