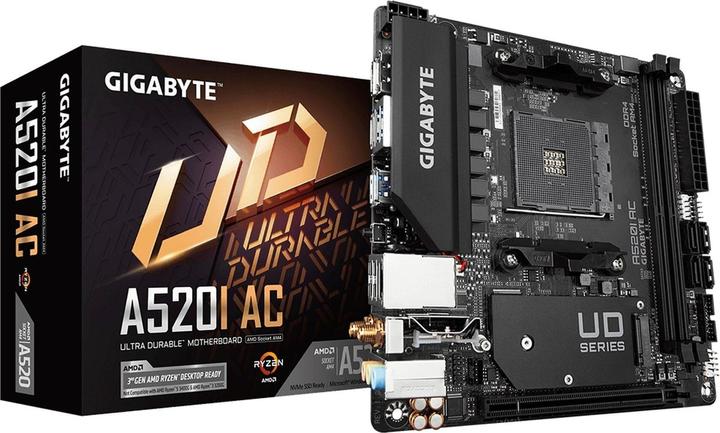

Gigabyte MB A520I
AM4, AMD A520, Mini-ITX7 items in stock
Product details

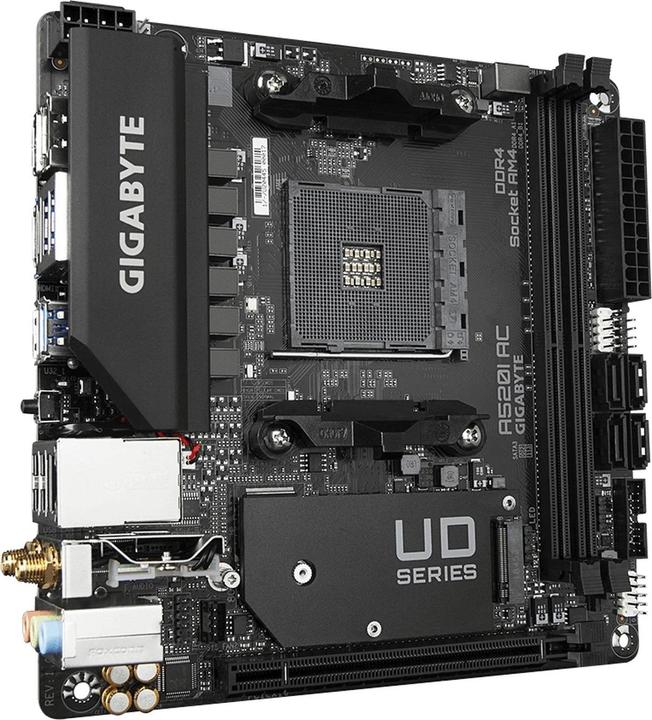

The Gigabyte A520I AC is based on the AMD A520 chipset and supports AMD processors for the AM4 socket. It features two DDR4 slots for up to 64 GB of RAM. Additional specifications of the Gigabyte A520I AC include one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. Furthermore, the Gigabyte A520I AC offers 8-channel audio, a Gigabit LAN interface, four SATA3 ports, one M.2 slot, WiFi 5, Bluetooth 4.2, and a variety of USB interfaces.
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 14030473 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | A520I AC |
Release date | 19/10/2020 |
External links |
Form factor | Mini-ITX |
Socket | AM4 |
Chipset | AMD A520 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Linux, Windows, Windows 10, Windows 11 Home, Windows 7, Windows 8 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 5 / 802.11ac |
Processor family | Ryzen 1st Gen, Ryzen 2nd Gen, Ryzen 3rd generation, Ryzen 4th Gen, Ryzen 5th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 64 GB |
Max. RAM OC | 5300 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 5000 MHz, 5200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

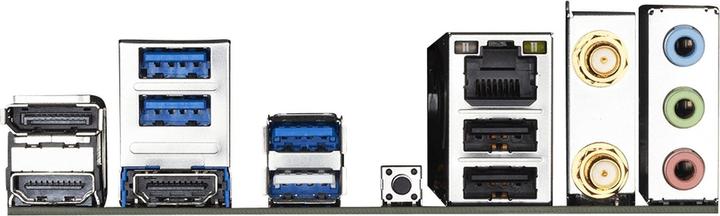

Video connections | DisplayPort (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
RAID configuration | 0, 1, 10 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | HD Audio (8-channel) |
Length | 170 mm |
Width | 170 mm |
Height | 35 mm |
Weight | 800 g |
Length | 23 cm |
Width | 20.90 cm |
Height | 8.50 cm |
Weight | 773 g |
