Gigabyte Z890M AORUS Elite WIFI7 ICE
LGA 1851, Intel Z890, ATXMore than 10 items in stock at supplier
Product details

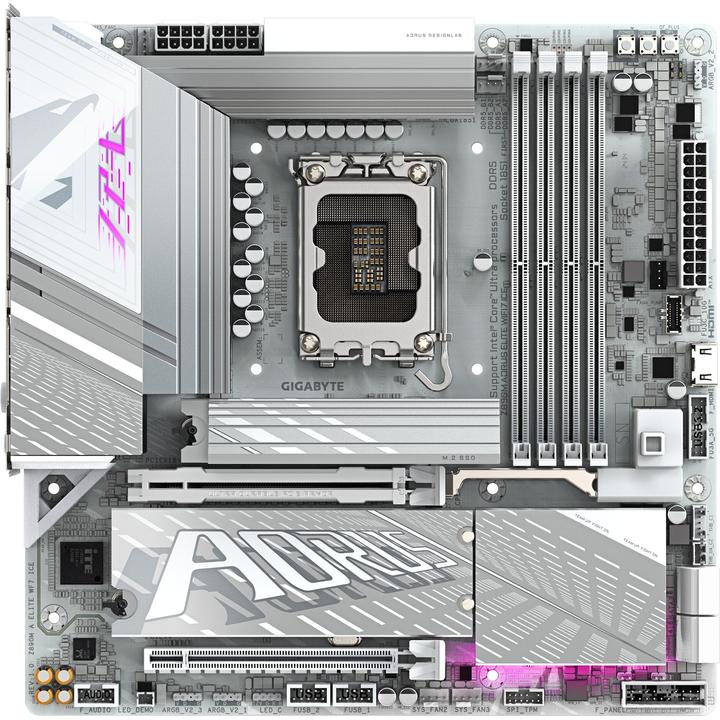

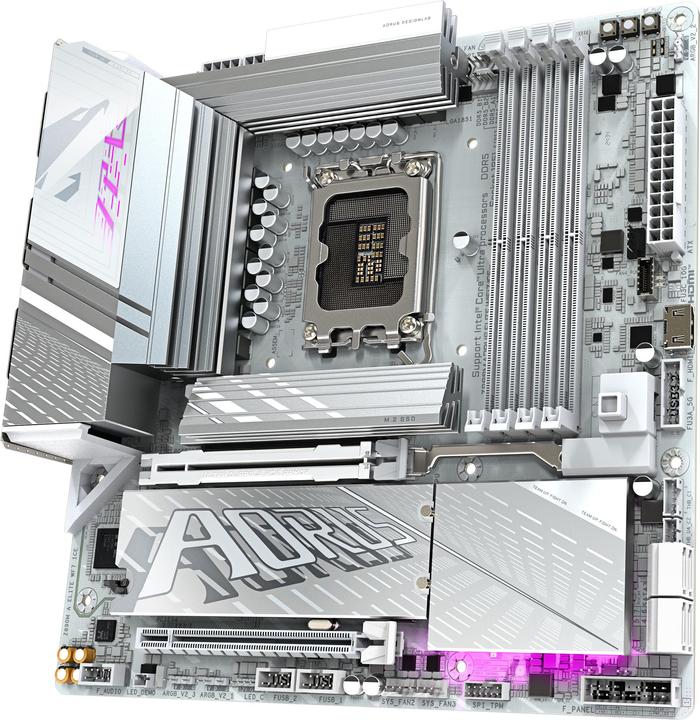

The GIGABYTE Z890M Aorus Elite WIFI7 ICE is a mATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB4, which offers data transfer rates of up to 40 Gbit/s. In addition, the GIGABYTE Z890M Aorus Elite WIFI7 ICE motherboard impresses with full PCIe 5.0 connectivity, which gives you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The GIGABYTE Z890M Aorus Elite WIFI7 ICE offers a compact yet powerful design, ideal for DIY enthusiasts who prefer the Micro-ATX form factor. It features a robust 12+1+2 digital VRM design with 60A power stages that ensures a stable power supply and supports user-friendly overclocking. Advanced cooling management and easy M.2 installation with EZ-Latch make the build process particularly user-friendly.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
Item number | 51892017 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | Z890M A ELITE WF7 ICE |
Release date | 12/10/2024 |
Form factor | ATX |
Socket | LGA 1851 |
Chipset | Intel Z890 |
Mainboard features | Clear CMOS Button, RGB header, Trusted Platform Module |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 |
Max. RAM OC | 8800 MHz |
Supported memory speed | 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6600 MHz, 7600 MHz, 7800 MHz, 7900 MHz, 7950 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (2x), HDMI (1x) |
Network connections | RJ45 (1x) |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1220P-VB2 |
Audio channel | 7.1 Channel |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (3x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (1x), PCI Express x4 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 4 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China, Germany, Taiwan |
CO₂-Emission | |
Climate contribution |
Scope of delivery | LAN bandwidth management software, Norton Internet Security (OEM version) |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1550 g |
Length | 27 cm |
Width | 27 cm |
Height | 7 cm |
Weight | 1.82 kg |
