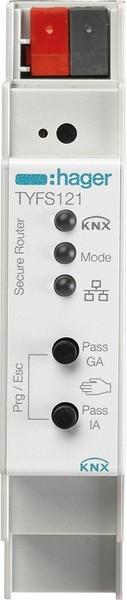

Hager KNX/IP Router Secure TYFS121

Manufacturer: Hager
Designation: KNX/IP Router Secure
Type: TYFS121
KNX Bus System: yes
KNX Wireless System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: yes
Other Bus Systems: none
Bidirectional Wireless: no
Execution: LAN System Interface
Mounting Type: REG
Width in Division Units: 2
Number of Channels: 8
Max Number of Devices per Channel: 8
Disassembly Protection: no
With LED Display: yes
Updatable: yes
Operating Voltage: 30 V
Power Consumption: 0.6 W
Protocol: other
Provider Dependent: yes
Visualization: yes
Web Server: no
Wireless Interface: no
IR Interface: no
Protection Class (IP): IP20

The KNX/IP Router Secure with integrated bus coupler is used as a line/area coupler and connects KNX bus lines via data networks as a fast backbone. The device can also serve as a programming interface to connect one or more PCs to the KNX bus (e.g., for ETS programming). Communication between the KNX/IP routers is secured. In addition to KNXnet/IP routing, the device also supports KNXnet/IP tunneling, allowing up to 8 secure connections to be used simultaneously. The IP address can be assigned via a DHCP server or through manual configuration (ETS). The KNX/IP Router has an extended filter table for main groups 0 to 31 and can buffer up to 150 telegrams. An external operating voltage is not necessary.

Features: Programming button and red programming LED, RJ45 connection for Ethernet/IP networks and bus connection via terminal block.
EAN: 3250618502541.
