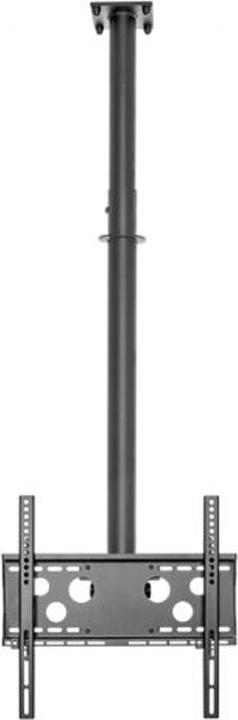

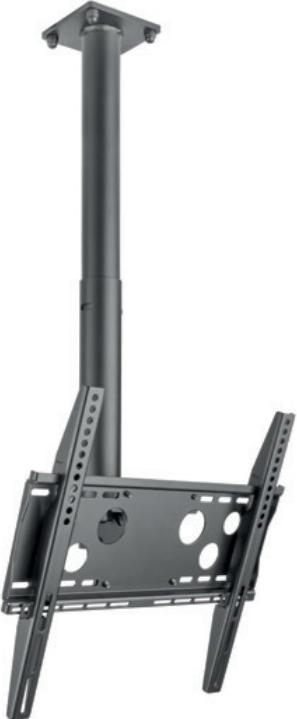

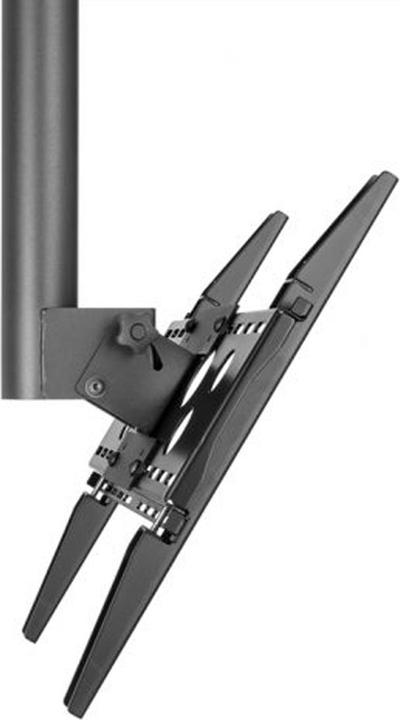

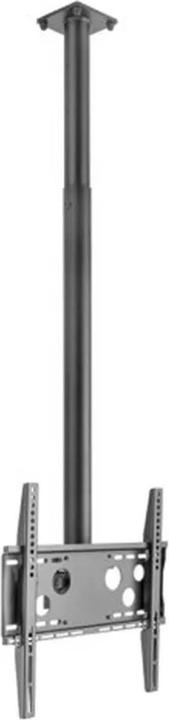

The HA DH 900 – 1600 S is a ceiling mount for a single screen with sizes ranging from 32 to 50 inches (81 to 127 cm screen diagonal). The installation can be done in either landscape or portrait orientation. A VESA mount is included and can accommodate sizes from a minimum of 100 x 100 mm to a maximum of 400 x 400 mm. The tilt angle of the TV mount can be adjusted tool-free using side knobs, ranging from -5° to +30°. Thanks to the side elongated hole in the lower pipe segment, the mount can be tilted by ±15° to compensate for slight discrepancies due to incorrect drilling. The ceiling distance can be varied in 100 mm increments between a minimum of 938 mm and a maximum of 1638 mm. This measurement refers to the center of the screen. Cable management is done internally, hidden from view and unwanted access. A cover ring for suspended ceilings is included in the delivery, ensuring a clean appearance. The surfaces of the HA DH 900 – 1600 S are finished with a shock and scratch-resistant black powder coating. The maximum load capacity is 50 kg.
