Hensel Empty Enclosure Mi 0100

Manufacturer: Hensel
Description: Empty enclosure
Dimensions: 275 x 125 x 146 mm
Type: Mi 0100
Mounting type: Surface-mounted
Type of cover: Lid
Cover design: Closed
Type of door: None
Transparent cover/door: Yes
With lock: No

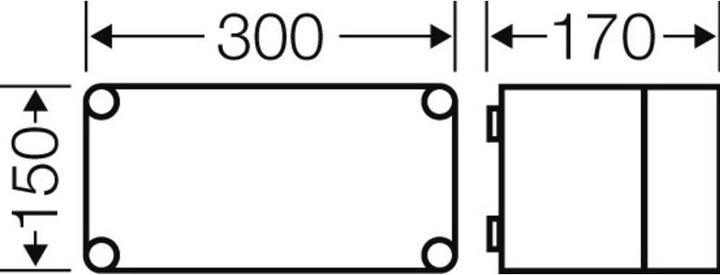

Height: 150 mm
Width: 300 mm
Depth: 170 mm
Installation depth: 146 mm
Internal depth: 146 mm
Material thickness of enclosure: 3 mm
Material thickness of door/lid: 3 mm
Color: Gray
RAL number: 7035
Number of modules: 1
Number of rows: 1
Number of openings for flange plates: 4
Mounting option: Yes
Number of cable entries: 30
Material of the enclosure: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP65
Protection class: II
Impact resistance: IK08
Function retention: None

The Hensel Empty Enclosure Mi 0100 is designed for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. It is made from high-quality, protection-insulated polycarbonate. Wall penetrations with large openings allow for electrical connections between enclosures. Cable entries are possible on all enclosure walls via metric pre-formed openings or mounting flanges. The enclosure can also be mounted to the wall using external tabs or mounting rails. It features a transparent lid. The installation dimensions are W 275 x H 125 x D 150 mm for the installation of devices on a mounting plate or DIN rail. The maximum installation depth with a mounted plate is 146 mm, and with a mounted rail, it is 135 mm. The lid locks can be operated with a tool.
