Hensel Empty housing 275x275x9mm Mi 020
HousingIn Detail
Hensel Empty Enclosure Mi 0210
Manufacturer: Hensel
Designation: Empty enclosure
Dimensions: 275 x 275 x 191 mm
Type: Mi 0210
Mounting type: Surface-mounted
Type of cover: Lid
Cover design: Closed
Type of door: None
Transparent lid/door: Yes
With lock: No

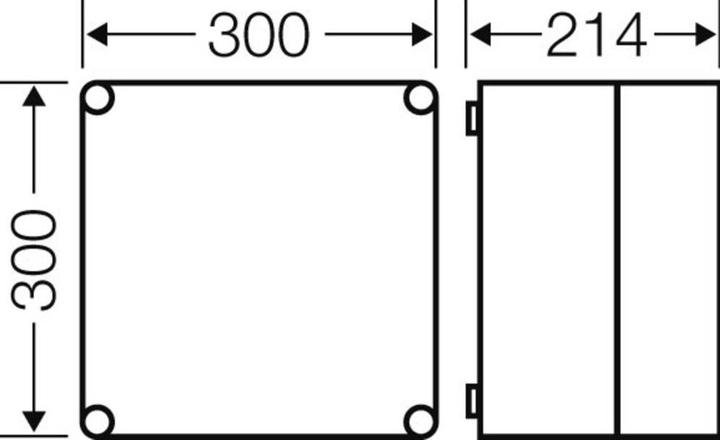

Height: 300 mm
Width: 300 mm
Depth: 214 mm
Installation depth: 191 mm
Inner depth: 191 mm
Material thickness of enclosure: 3 mm
Material thickness of door/lid: 3 mm
RAL number: 7035
Number of modules: 1
Number of rows: 1
Number of openings for flange plates: 4
Mounting possibility: Yes
Number of cable entries: 40
Material of enclosure: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP65
Protection class: II
Impact resistance: IK08
Function maintenance: None

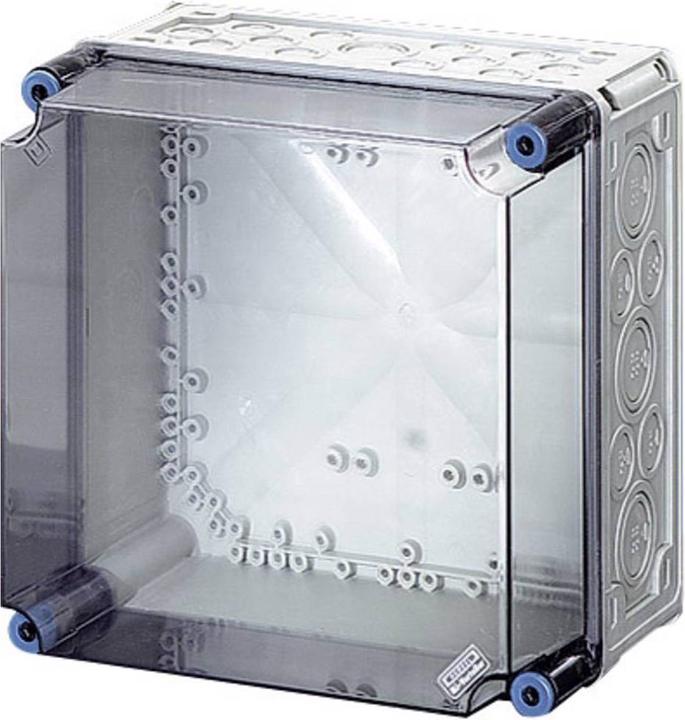

The Hensel Empty Enclosure Mi 0210 is designed for the construction of energy switchgear combinations up to 630 A or as a standalone enclosure. It is made of high-quality, protection-insulated polycarbonate. Wall penetrations with large openings allow for the electrical connection of enclosures to each other. Cable entries are possible on all enclosure walls via metric pre-formed openings or mounting flanges. The enclosure can also be installed for wall mounting using external tabs or mounting rails. It features a transparent lid. The installation dimensions are W 275 x H 275 x D 195 mm for the installation of devices on a mounting plate or DIN rail. The maximum installation depth with a mounted plate is 191 mm, and with a mounted rail, it is 180 mm. The lid locks are operated with a tool.
