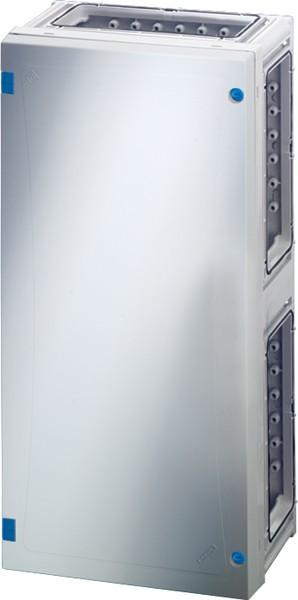

Hensel Empty Enclosure FP 0330
Manufacturer: Hensel
Description: Empty enclosure
EB dimensions: 216 x 486 x 136 mm
Type: FP 0330
Mounting type: Surface-mounted
Type of cover: Door
Cover design: Closed
Type of door: Single
Transparent cover/door: No
With lock: No
Height: 540 mm
Width: 270 mm
Depth: 163 mm
Installation depth: 136 mm
Internal depth: 136 mm
Material thickness of enclosure: 3 mm
Material thickness of door/cover: 3 mm
RAL number: 7035
Number of modules: 1
Number of rows: 1
Number of openings for flange plates: 6
Mounting option: Yes
Material of the enclosure: Plastic
Surface protection: Untreated
With mounting plate: No
Suitable for outdoor use: Yes
Suitable for lightning protection: No
Protection class (IP): IP65
Protection class: II
Impact resistance: IK08
Function maintenance: None

Hensel Empty Enclosure FP 0330: Additional details
Enclosure with door for the construction of installation distribution boards up to 250 A for operation by laypersons according to IEC 61439-3. Open enclosure walls for combination or as a single enclosure with closure plates. Made of high-quality polycarbonate, protection insulated. Quick enclosure connection via connectors and integrated seals. Large wall passages for the electrical connection of the enclosures to each other. Cable entry via flanges. Wall mounting directly on the enclosure, via external tabs or with mounting rails. Empty enclosure with non-transparent door and door lock operated by tool. For the installation of devices on a mounting plate or DIN rail, installation dimensions B 216 x H 486 x D 140 mm. Max. installation depth with mounted plate 136 mm, with mounted rail 125 mm. The sealing device for door sealing must be ordered separately.
EAN: 4012591103875.
