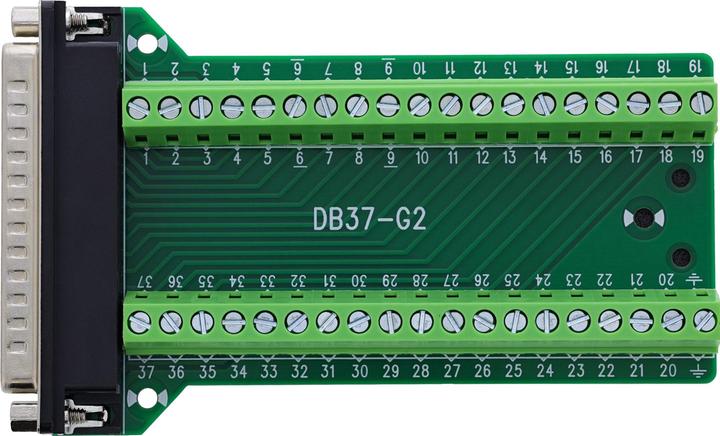

The InLine® D-Sub 37 terminal block with connector is a reliable solution for professional signal wiring in various applications, such as laboratories, service areas, or machine environments. With 37 side-mounted screw terminals, this terminal block allows for quick and tool-assisted wiring of individual conductors in the range of 18–26 AWG. The use of a slotted screwdriver with a maximum width of 2.5 mm significantly facilitates installation. The robust screw locking mechanism with a fastening thread (UNC #4-40) ensures a stable and vibration-resistant connection. Additionally, the terminal block guarantees high signal quality with an insulation resistance of at least 10 MΩ at 300 V DC and a rated current of 0.8 A per pin, making it ideal for applications with high connection density. The side-mounted terminal strips are particularly advantageous in tight spaces, as they allow for a compact arrangement of signal conductors.

• Quick wiring via 37 side-mounted screw terminals
• Robust screw locking for stable connections
• Ideal for signal distributions and test stations
• High signal quality with insulation resistance ≥ 10 MΩ
• Space-saving design for tight installations.
