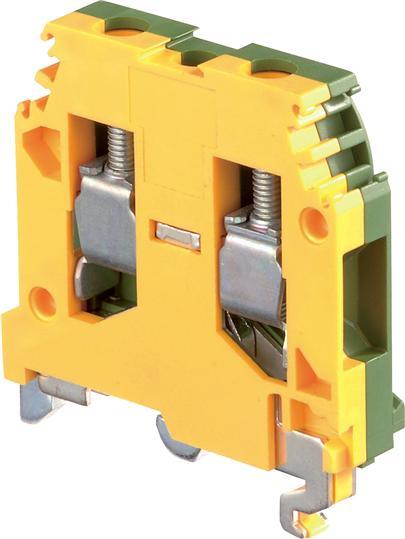

Krüger-Werke GmbH Terminal M 6/8.P gn-ge Manufacturer: Krüger-Werke GmbH Designation: Terminal Type: M 6/8.P gn-ge PEN function possible: no Connectable conductor cross-section flexible without ferrule: 0.5...6 mm² Connectable conductor cross-section flexible with ferrule: 0.22...6 mm² Connectable conductor cross-section solid: 0.5...10 mm² Design of electrical connection 1: screw connection Design of electrical connection 2: screw connection Number of tiers: 1 Number of terminals per tier: 2 Mounting type: top hat rail TH35/G32 Material of insulating body: thermoplastic Operating temperature: -40...110 °C Flammability class of the insulating material according to UL 94: V2 Width: 8 mm Depth: 44.5 mm End plate required: yes Color: green/yellowKrüger-Werke GmbH Terminal block M 6/8.P gn-ge: more detailsElectrical conductor terminal blocks with screw connection from the SNA series are available in widths from 5 mm to 36 mm. They provide a reliable electrical and mechanical connection to the rail. They can be snapped onto symmetrical and asymmetrical rails. Protective conductors are available as both double and triple terminal blocks. ABB's screw termination technology is designed to prevent connections from loosening due to vibration, shock or even accidental pulling on the cable. The exclusive design eliminates the need to retighten connections in every case. They cover connection requirements from 0.22 mm² to 240 mm². The screw connection technology allows the connection of up to two conductors per terminal, thus providing more flexibility in the control cabinet. Easy cable routing, as the conical opening guides the conductor precisely into the terminal cage. , EAN: 3472591651140.
