KERPEN DATACOM MegaLine Connect45 Pro KDA4D5SU2000001

Manufacturer: KERPEN DATACOM
Designation: MegaLine Connect45 Pro SMART DL 2xRJ45 Cat.
Type: KDA4D5SU2000001
Surface mount: yes
Flush mount: no
Channel installation: no
Floor box/underfloor installation: no
Mounting method: screws
Connector type: RJ45 8(8)
With sockets/couplings: yes
Suitable for number of sockets/couplings: 2
Category: 6A (IEC)
Connection type: IDC punch-down
Shielded sockets: yes
Shielded housing: yes
Separate grounding connection: yes
With text field: yes
Design capable: yes
Mounting type shield connection: terminal
Outlet direction: angled
With dust protection: no

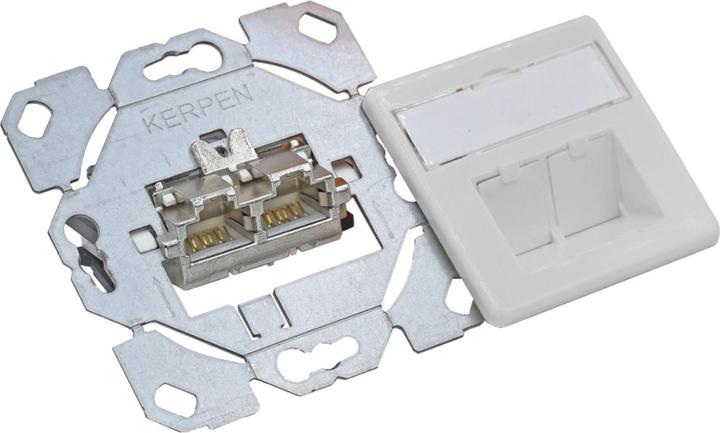

The Cat. 6A design socket with a 50x50 cover in pure white exceeds the requirements of Category 6A (ISO/IEC) up to 500 MHz. This makes the Cat. 6A design socket suitable for the transmission of 10 Gigabit Ethernet in Class EA Permanent Link and Channel up to 500 MHz.

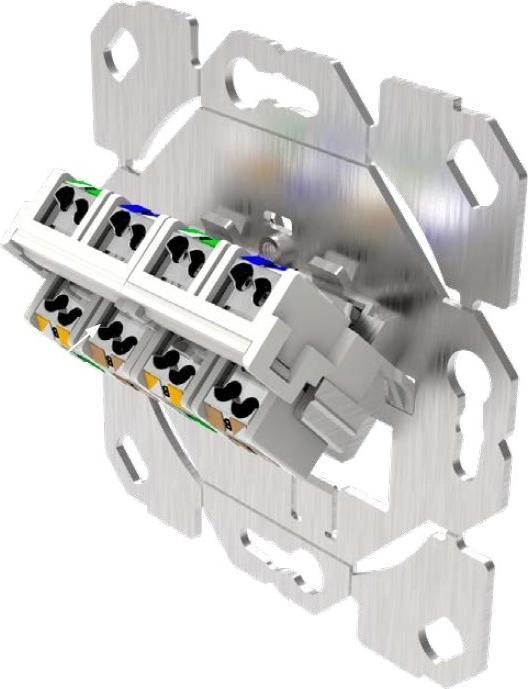

The tool-free, individually connectable sliding strip allows for cable entry from any direction and provides an efficient, space-saving solution specifically for tight installation situations such as flat switch boxes, protecting your network connection from unnecessary transmission losses due to cable stress. During installation, the cable sheath is stripped deep within the socket housing. The wire pairs are then routed separately to the socket. This installation method of the double connection socket creates a bend radius-compliant and flexible installation situation.
