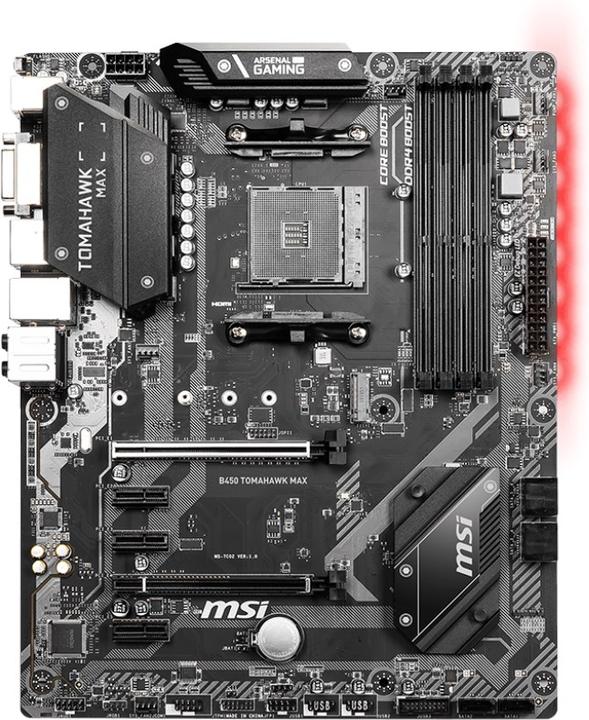

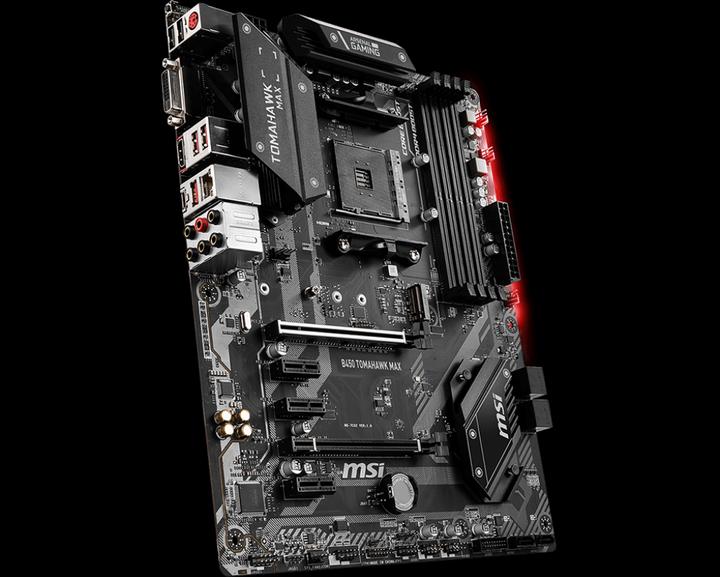

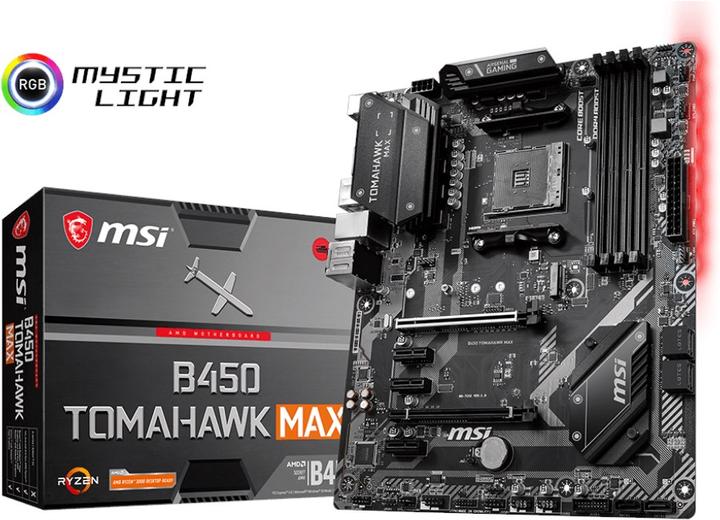

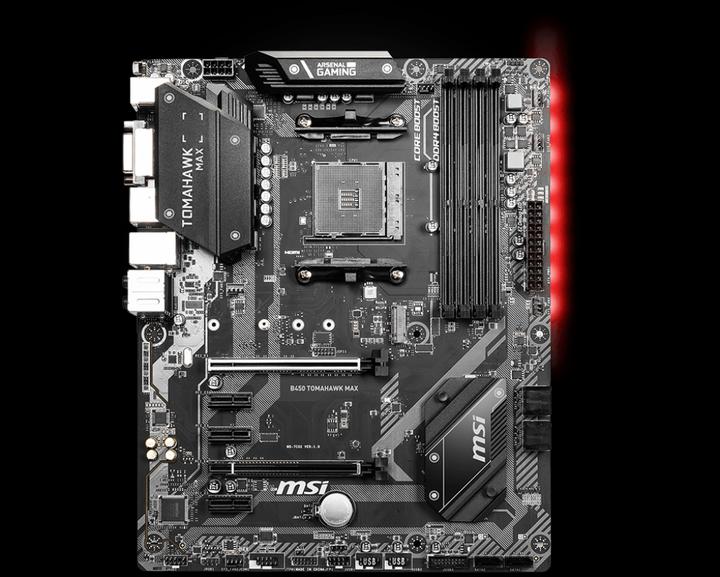

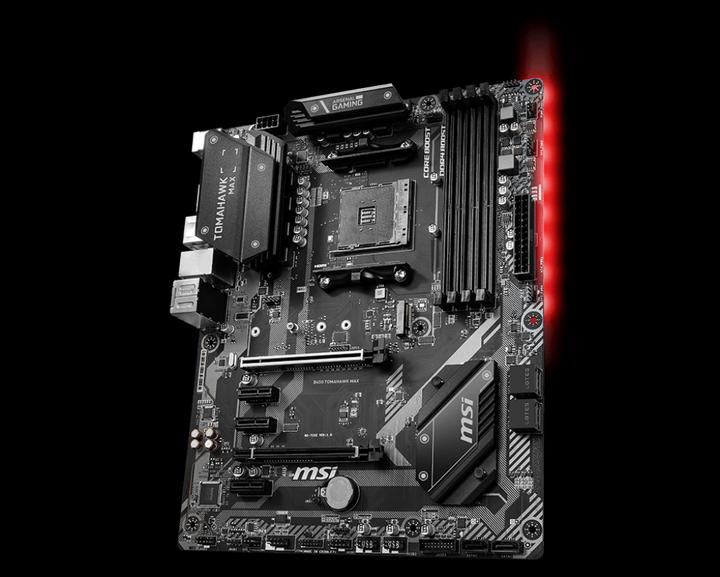

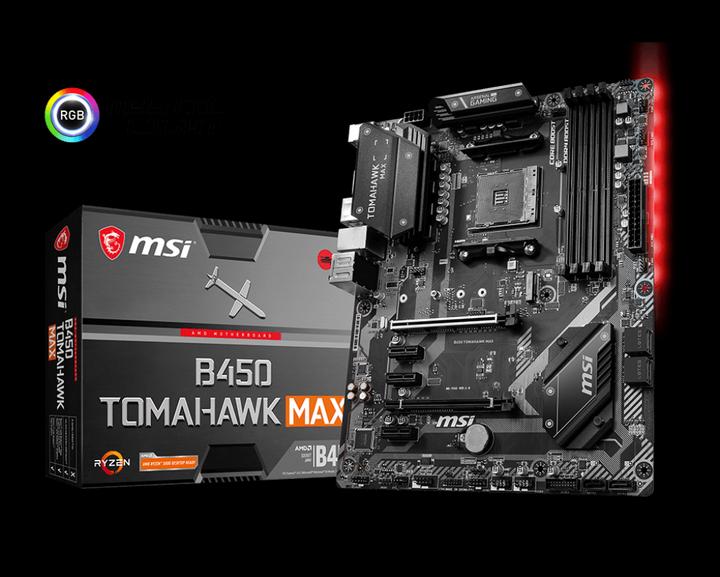

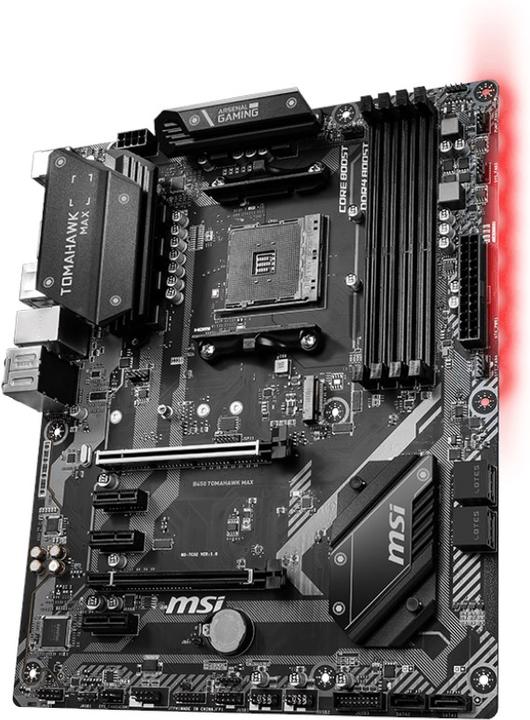

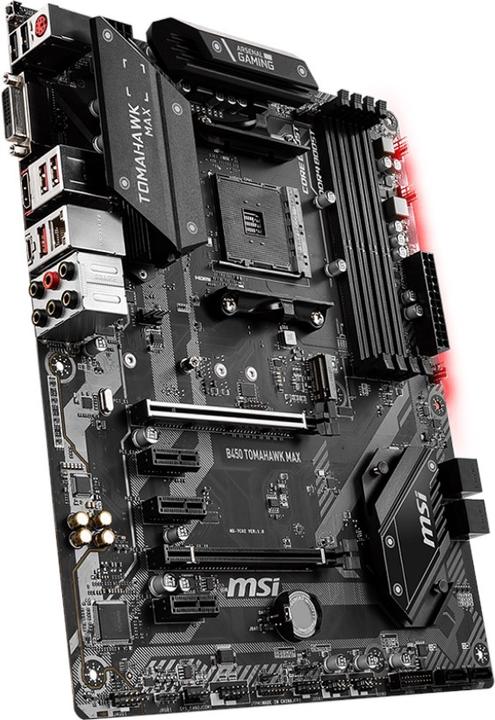

MSI B450 TOMAHAWK MAX
AM4, AMD B450, ATXProduct details

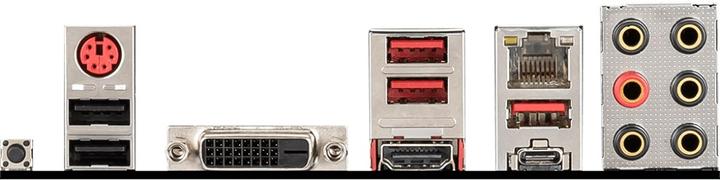

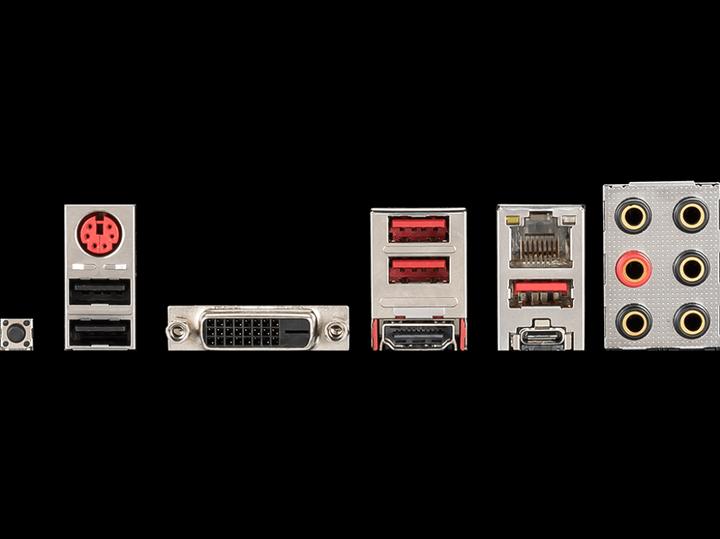

The MSI B450 TOMAHAWK MAX is a powerful ATX motherboard designed for use with AMD processors. It supports the AM4 socket and is compatible with a wide range of AMD processors, including the Ryzen 2000 and 3000 series as well as Athlon processors. Featuring a robust AMD B450 chipset, this motherboard offers a variety of features that are significant for gamers and PC enthusiasts. It allows the use of DDR4 memory with speeds of up to 4133 MHz (OC) and supports up to 64 GB of RAM. The integrated ports include USB-C Gen2, USB 3.2 Gen 1 and Gen 2, as well as Gigabit Ethernet for fast network connectivity. Additionally, the motherboard provides numerous expansion options, including PCIe x16 slots for graphics cards and multiple SATA III ports for storage drives. Support for multi-GPU technology with AMD CrossFireX enables the integration of multiple graphics cards for enhanced graphics performance.
- Supports DDR4 memory up to 4133 MHz (OC)
- Compatible with AMD Ryzen 2000 and 3000 series as well as Athlon processors
- Offers Gigabit Ethernet for fast network connections
- Enables multi-GPU configurations with AMD CrossFireX
- Integrated audio solution with 8-channel HD audio.
Processor family | A-Series, Athlon, Ryzen 2nd Gen, Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Documents | |
Item number | 12205340 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7C02-020R |
Release date | 18/10/2019 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B450 |
Mainboard features | Front panel audio connector |
BIOS type | UEFI AMI |
Processor family | A-Series, Athlon, Ryzen 2nd Gen, Ryzen 3rd generation |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Max. RAM OC | 4000 MHz |
Supported memory speed | 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | HDMI (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8111H |
Chip | Realtek ALC892 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (6x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 3 |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Mainboard |
Length | 244 mm |
Width | 305 mm |
Height | 244 mm |
Length | 34.80 cm |
Width | 27 cm |
Height | 6.80 cm |
Weight | 1.41 kg |
