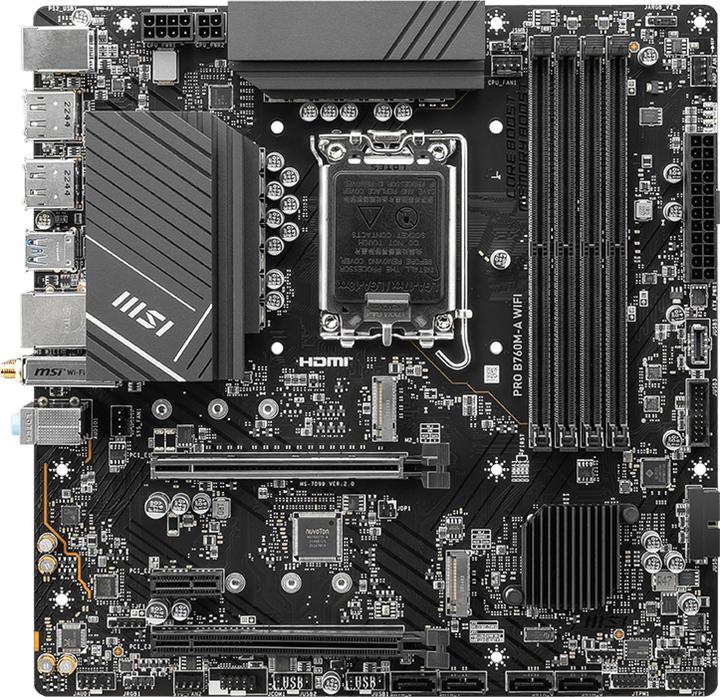

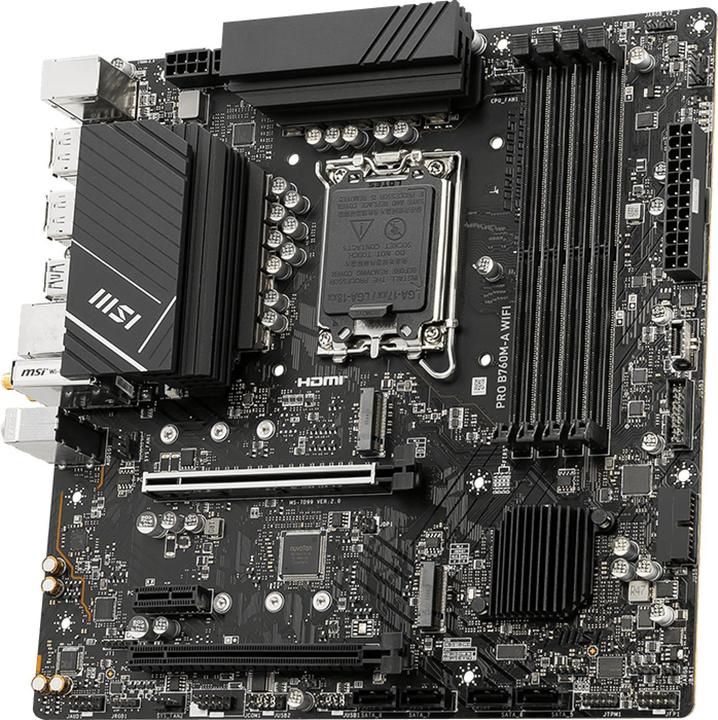

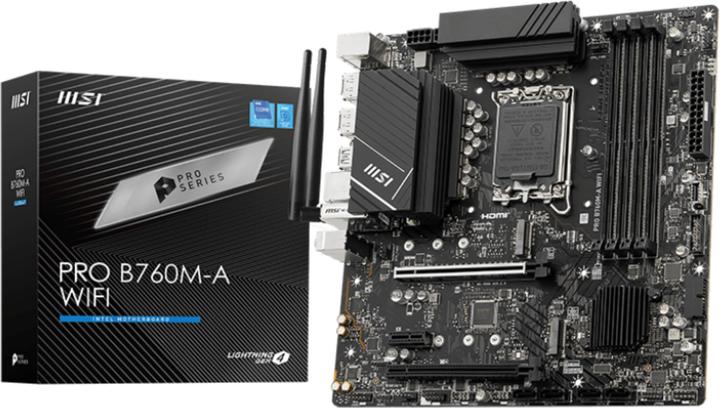

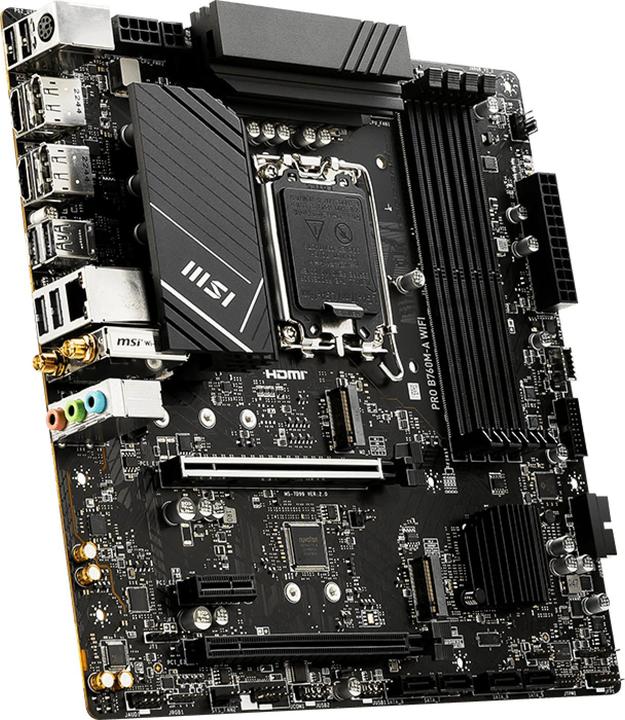

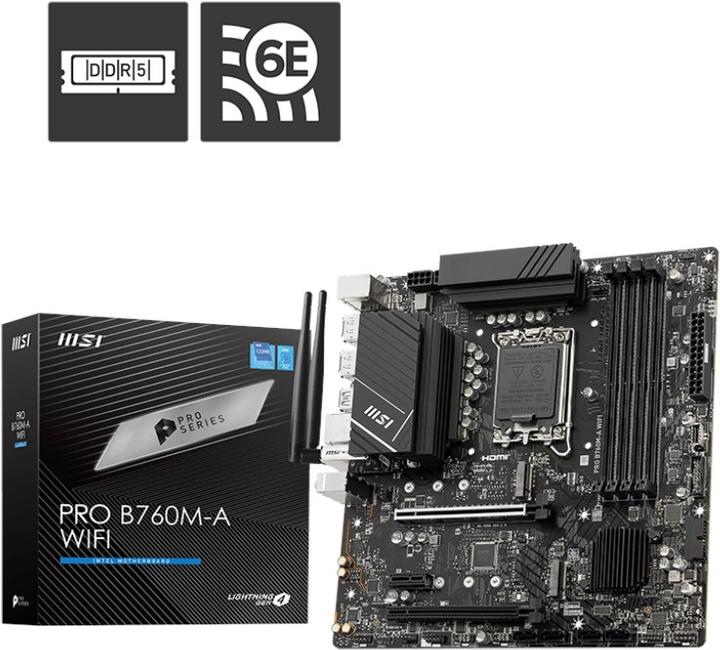

MSI PRO B760M-A WIFI
LGA 1700, Intel B760, mATXProduct details
The MSI PRO B760M-A WIFI motherboard is based on the Intel B760 chipset and supports Intel processors for the LGA 1700 socket from the 12th and 13th generations. It features four DDR5 DIMM slots operating in dual-channel mode for up to 192 GB of memory. Additional features of the MSI PRO B760M-A WIFI include a PCIe 4.0 x16 slot, a PCIe 4.0 x4 slot, and a PCIe 3.0 x1 slot. Furthermore, the MSI PRO B760M-A WIFI offers 8-channel sound, a 2.5 Gigabit LAN interface, four SATA ports, two M.2 slots, and a variety of USB ports.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector |
Item number | 30001142 |
Manufacturer | MSI |
Category | Motherboards |
Manufacturer no. | 7D99-007R |
Release date | 16/5/2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 192 GB |
Memory chip | DDR5 |
Supported memory speed | 4800 MHz, 5000 MHz, 5400 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

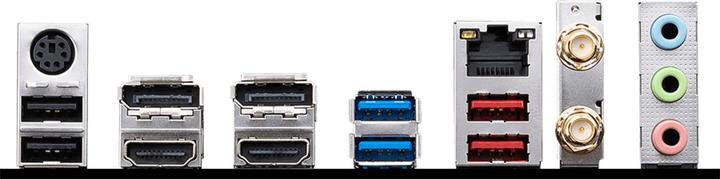

Video connections | DisplayPort (2x), HDMI (2x) |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x4 (Gen 3) (1x) |
Number of fan connector | 1 |
USB ports | USB-A |
Exact USB ports | USB-C 3.2 Gen 2 (1x) |
Power connectors | 24-pin ATX, 4-pin ATX 12V, 8-pin ATX 12V |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x Serial ATA cable, Serial ATA cable |
Length | 243.80 mm |
Width | 243.80 mm |
Height | 30 mm |
Weight | 1234 g |
Length | 30 cm |
Width | 28 cm |
Height | 6 cm |
Weight | 1.23 kg |
