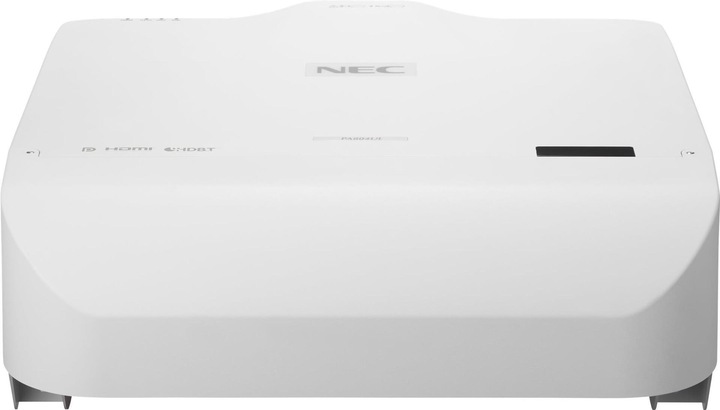

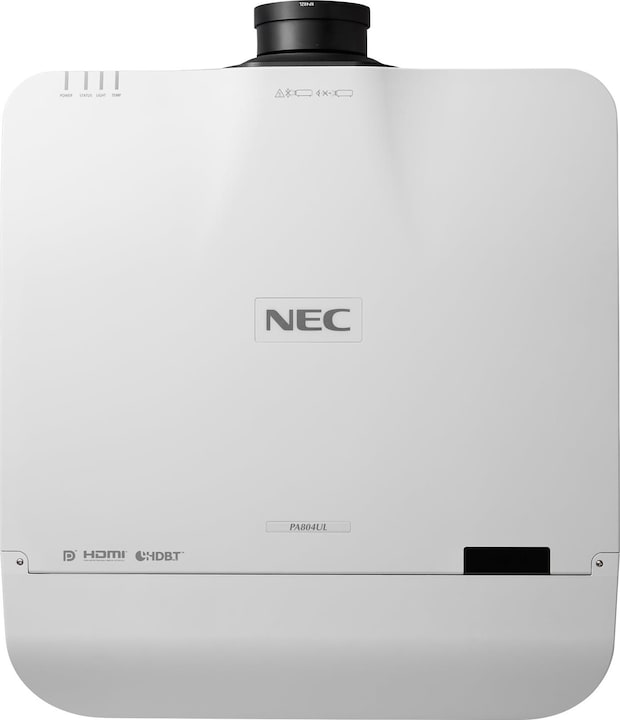

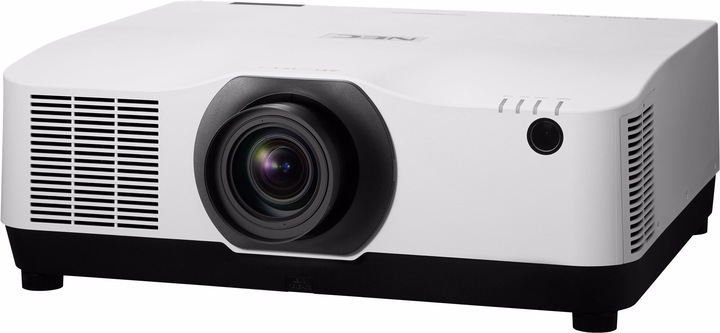

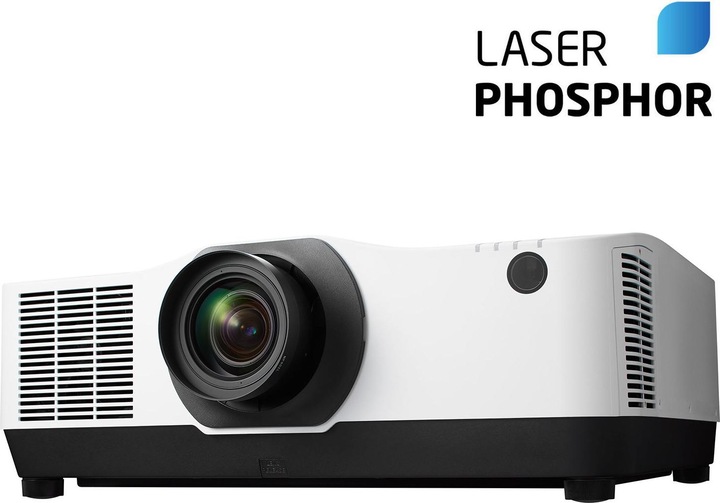

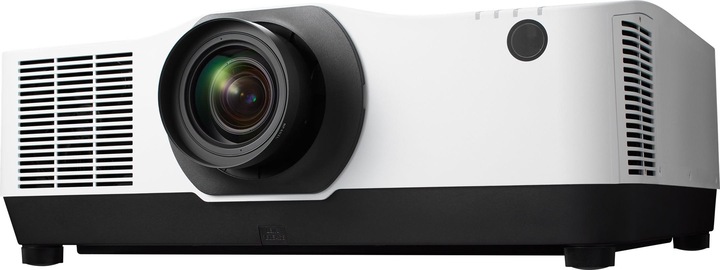

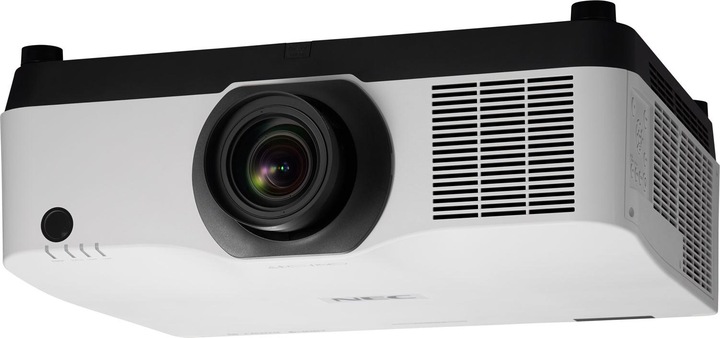

NEC PA804UL
WUXGA, 8200 lm, 1.3 - 3.02:1Product details
A new class of silent projection
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 8,200 lumens PA804UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented white point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing, and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
With the newly designed sealed optical engine, there is no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our unique filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours lifetime.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA804UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure, and museum applications.
Projector type | Professional projector |
Projector technology | LCD |
Contrast ratio | 3000000 :1 |
Throw ratio | 1.3 - 3.02:1 |
Equipment + Functions | HDBaseT, Integrated loudspeakers, Zoom |
Image resolution | 1920 x 1200 pixels |
Max. Projection area (inch) | 500" |
Item number | 16272348 |
Colour | White |
Projector type | Professional projector |
Projector technology | LCD |
Installation place | Ceiling, Ground |
Focus type | Autofocus, Manual focus |
Equipment + Functions | HDBaseT, Integrated loudspeakers, Zoom |
Aspect ratio | 16:10 |
Display resolution | WUXGA |
Image resolution | 1920 x 1200 pixels |
4K Technology | Native Ultra-HD |
Contrast ratio | 3000000 :1 |
Brightness (ANSI) | 8200 lm |
Projection ratio | Variable |
Max. Projection area (inch) | 500" |
Horizontal scanning area | 15 - 153 kHz |
Vertical scanning range | 48 - 120 Hz |
Min. throw ratio | 1.30 :1 |
Max. throw ratio | 3.02 :1 |
Image adjustment | Keystone correction |
Zoom type | Auto, Manual |
Min. projection distance (metres) | 0.70 m |
Max. projection distance (metres) | 50.90 m |
Multimedia features | Photo |

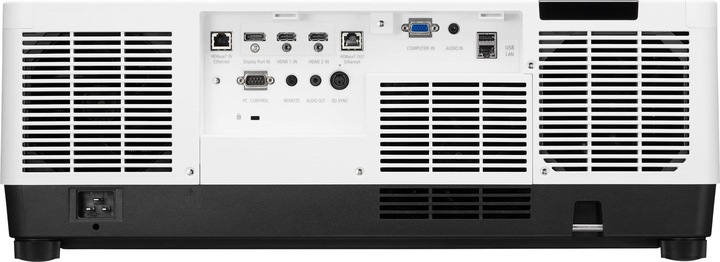

Video connections | DisplayPort (1x), HDMI IN (2x) |
Audio Connections | Jack 3.5mm Microphone In (1x) |
Data ports | RS-232 (1x) |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (1x) |
Network connections | RJ45 (1x) |
Max. noise level | 30 dB |
Noise level in power saving mode | 28 dB |
Bulb type | LED |
Lamp technology | Laser |
Lamp service life | 20000 h |
Power supply | Electrical connection |
Conventional energy consumption | 615 W |
Power consumption (standby) | 0.28 W |
Country of origin | Japan |
Manufacturer commitment | RE100 |
Manufacturer compensation | According to RE100, the manufacturer NEC fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | AC cable, Wireless remote control |
Length | 490 mm |
Width | 599 mm |
Height | 208 mm |
Weight | 24.10 kg |
Length | 73 cm |
Width | 62 cm |
Height | 35 cm |
Weight | 28.50 kg |
