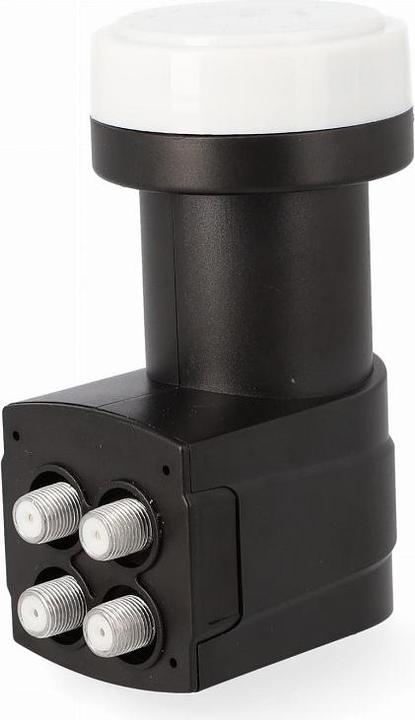

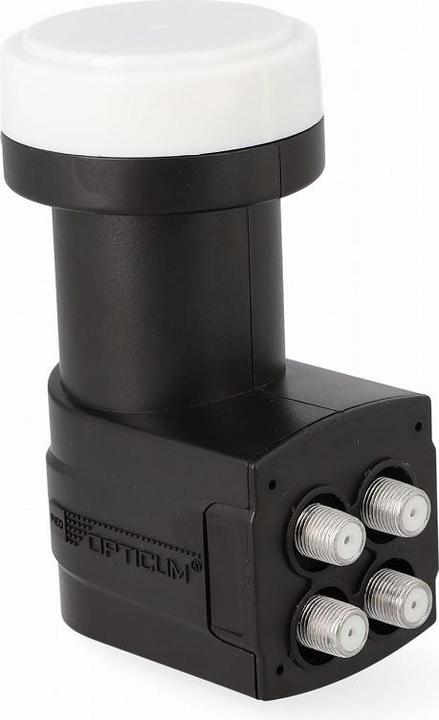

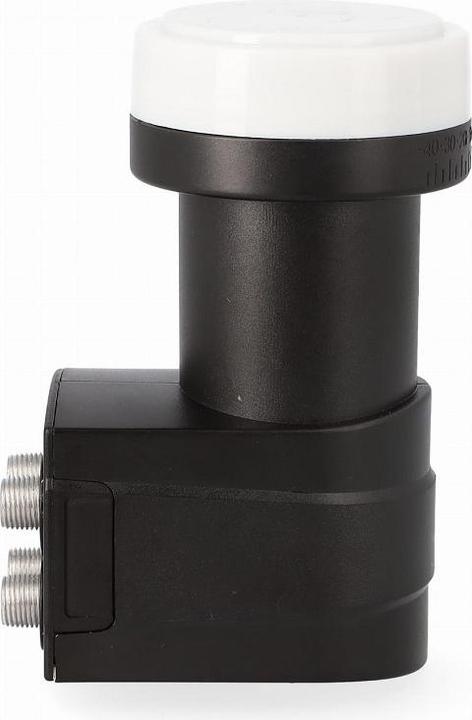

The quad-type satellite converter features four full-band converters combined in a single housing. This provides four independent outputs that can be used in various configurations, such as four independent tuners with one receiving head, two tuners with one head and one with a dual head (e.g., PVR type), or two tuners with dual heads of PVR type. The quad converter is a premium device with a very low noise figure of 0.1 dB and easily handles HD signal reception. The converter is mounted to the satellite dish using a standard 40 mm bracket.

Technical specifications:

• Gain / Output: 58 dB
• Noise figure: 0.1 dB
• Current consumption: 130 mA
• Weight: 282 g
• Mounting diameter: 40 mm
• Input frequency range: 10.7 - 12.75 GHz
• Output frequency range: 950 - 2150 MHz
• Quantity per carton: 100 pcs
• EAN code: 5908266365404.
