Output power: 100 W
Power: 100 W
Supply voltage: 230 V AC
Surface temperature: 85 °C
Depth: 67 mm
Height: 70 mm
Width: 191 mm

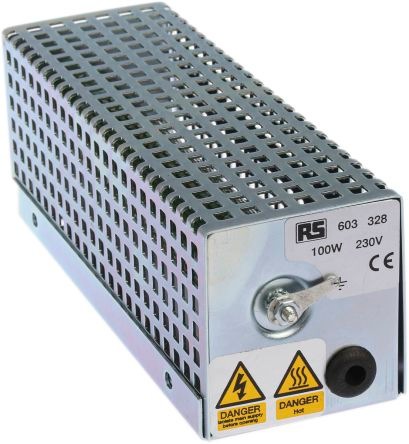

The recommended nominal power is 10 W per square meter of the housing surface, excluding the base area. Recommended installation on a back side, with the heating element oriented horizontally and the connections at the bottom. Anti-fog heating HVR Pentagon. These heaters are designed for applications where a low-power heating device is required to prevent condensation. They consist of an enamel resistor in a steel sheet housing and have a removable perforated steel sheet cover. There is a cable entry on each side, and the resistor is equipped with M4 terminal screws. Applications include control and switch cabinets. Enamel resistor in a steel sheet housing. Removable perforated steel sheet cover.
