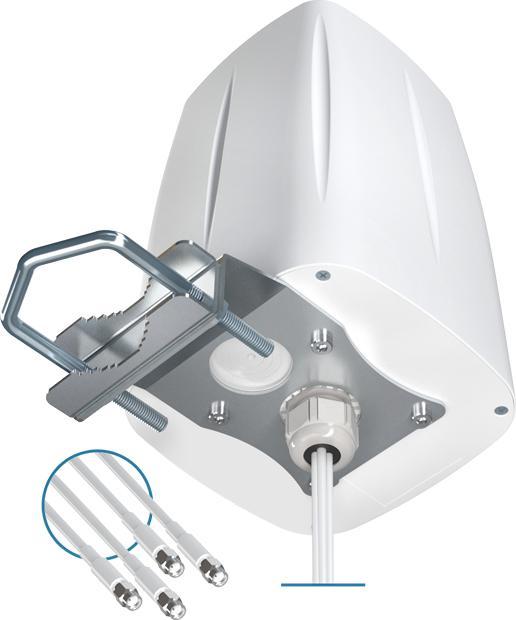

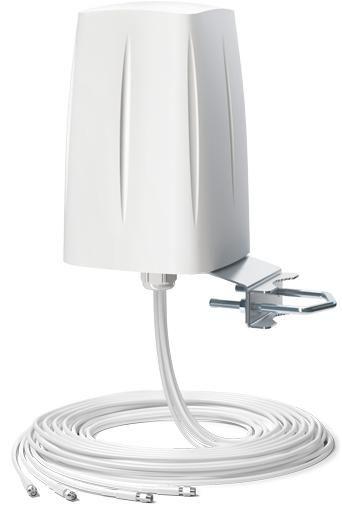

QuOmni LTE MIMO 4x4, omnidirectional multiband LTE MIMO 4x4 antenna

The QuOmni LTE omnidirectional MIMO 4x4 LTE antenna operates in vertical polarization and is designed for LTE/3G/2G connections. This antenna supports the most popular LTE bands (e.g., 3, 7, 20) and frequencies of 694-2700 MHz. It is intended for installation on buildings (on a pole or wall) as a client antenna or on moving vehicles such as trains, buses, trucks, yachts, and boats to receive internet via LTE/3G. It is compatible with Teltonika models: RUT240, RUT900, RUT950, RUT955, RUTX09, RUTX11, and other MIMO 4x4 LTE/3G/2G modems and routers.

LTE Antenna Specification

• Frequency: 0.694 - 0.96 GHz; 1.7 - 2.2 GHz; 2.5 - 2.7 GHz

• Supported LTE/5G bands: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 33, 34, 35, 36, 37, 38, 39, 44, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n95

• Gain: 0.694 - 0.96 GHz: 2 dBi; 1.7 - 2.2 GHz: 2 dBi; 2.5 - 2.7 GHz: 3 dBi

• VSWR: <1.50, max. <2.50

• Beam width: 360°/25° ±5°

• Polarization: Vertical

• Impedance: 50 Ω

Mechanical Specification

• Materials: ABS, aluminum, PTFE

• Ingress protection: IP67

• Dimensions: 160 x 160 x 240 mm; 6.3 x 6.3 x 9.45 inch

• Weight: 1.5 kg; 3.31 lbs

• Operating temperature: From -40°C to 75°C; From -40°F to 167°F

• Cable length: 5 m

• Cable type: LMR195 white

• Connector type: 4x SMA plug.
