Ruckus Access Point R750

2400 Mbit/s
Currently out of stock

Product details

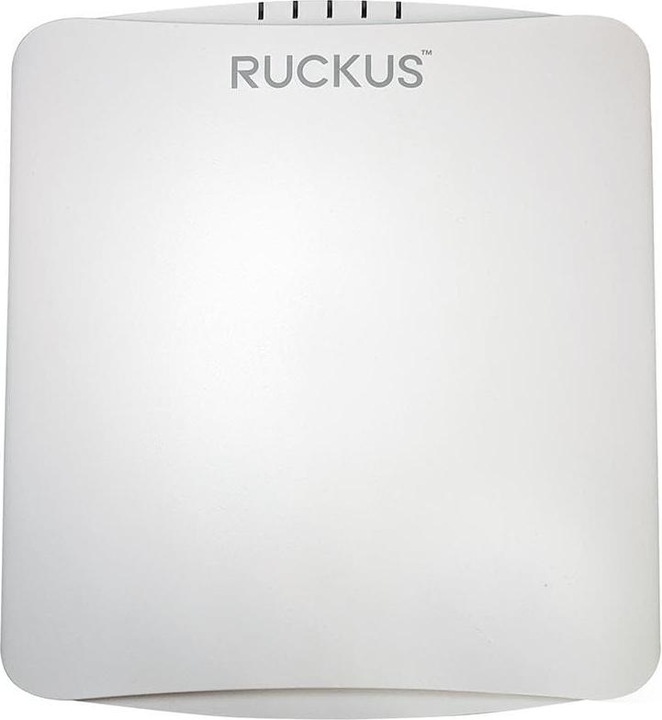

The Ruckus R750 Indoor Access Point is a powerful solution for modern networking needs in business environments. With support for multiple Wi-Fi standards, including Wi-Fi 6, this access point offers high transmission rates and improved network performance. The dual-band functionality allows for simultaneous use of 2.4 GHz and 5 GHz frequencies, enhancing the flexibility and efficiency of the network. The R750 is designed to deliver optimal performance even in heavily loaded environments by minimizing interference and optimizing the management of temporary clients. The mounting options for wall or ceiling installation provide additional flexibility, while support for PoE (Power over Ethernet) simplifies installation and reduces the need for additional power sources.

  • Airtime optimization to increase network throughput in high-traffic areas
  • Support for Wi-Fi 6 (802.11ax) and Wi-Fi 5 (802.11ac) for high speeds
  • Maximum transmission rate of up to 2400 Mbps on 5 GHz and 1148 Mbps on 2.4 GHz
  • Mesh-capable for extended network coverage and flexibility

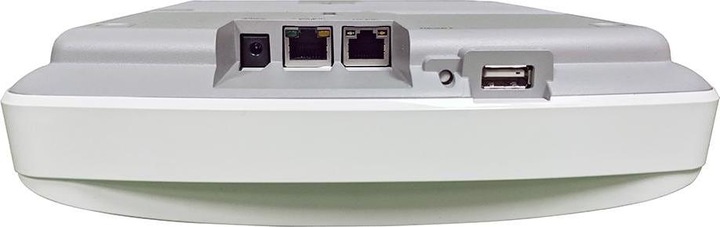

  • Two RJ45/LAN ports with a maximum port speed of 2.5 Gbps.

Key specifications

Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11acWi-Fi 6 / 802.11ax
Wi-Fi frequency band
Dual band
PoE Standard
802.3af (PoE)802.3at (PoE+)
Operating modes
Access point
Area of application
Business
Number of RJ45/LAN ports
2
Max. port speed
2500 Mbit/s
Item number
17948006

General information

Manufacturer
Ruckus
Category
Access points
Manufacturer no.
9U1-R750-WW00
Release date
17/12/2021

Access point properties

Operating modes
Access point
Antenna gain
3 dB
Number of RJ45/LAN ports
2
Max. port speed
2500 Mbit/s
Access Point Functions
Mesh capable

Wi-Fi standard

Wi-Fi standard
Wi-Fi 1 / 802.11bWi-Fi 2 / 802.11aWi-Fi 3 / 802.11gWi-Fi 4 / 802.11nWi-Fi 5 / 802.11acWi-Fi 6 / 802.11ax
5 GHz transfer rate
2400 Mbit/s
2.4 GHz transfer rate
1148 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WPA-PSKWPA2-PSKWPA3-PSK

Application range

Area of application
Business
Installation place
CeilingWall

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)802.3at (PoE+)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
AccessAccess point

Product dimensions

Length
23.50 cm
Width
20.60 cm
Height
6.20 cm
Weight
1010 g

Package dimensions

Length
24.90 cm
Width
23.50 cm
Height
9.60 cm
Weight
1.36 kg
