Coil voltage: 230V AC
Contact arrangement: 3-pole changeover contact
Switching current: 10 A
Connection type: Pluggable
Coil resistance: 15 kΩ
Switching voltage AC max: 250V
Length: 21mm
Depth: 47.7mm
Height: 27mm
Dimensions: 21 x 47.7 x 27mm
Operating temperature max: +55°C

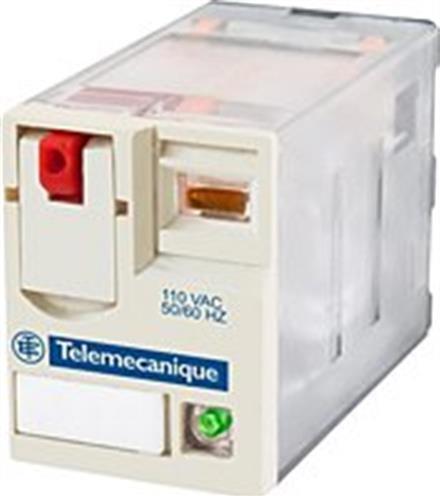

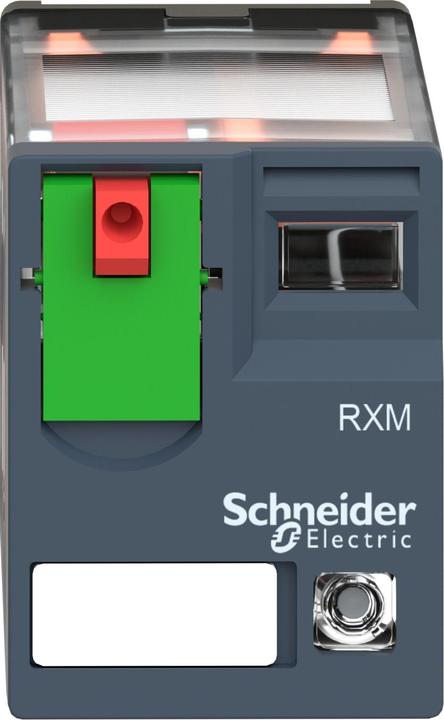

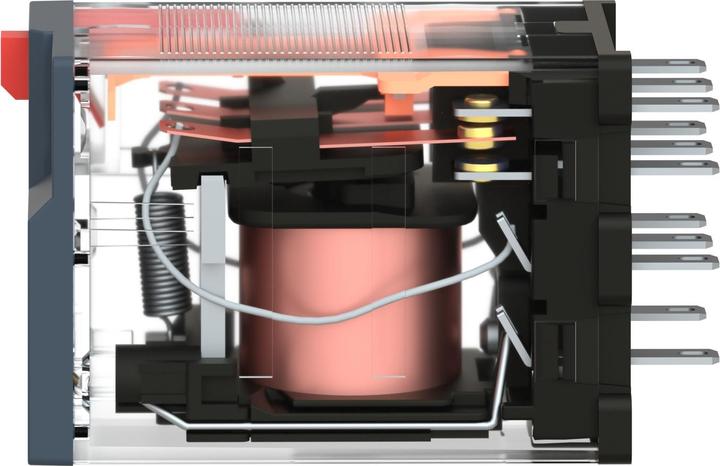

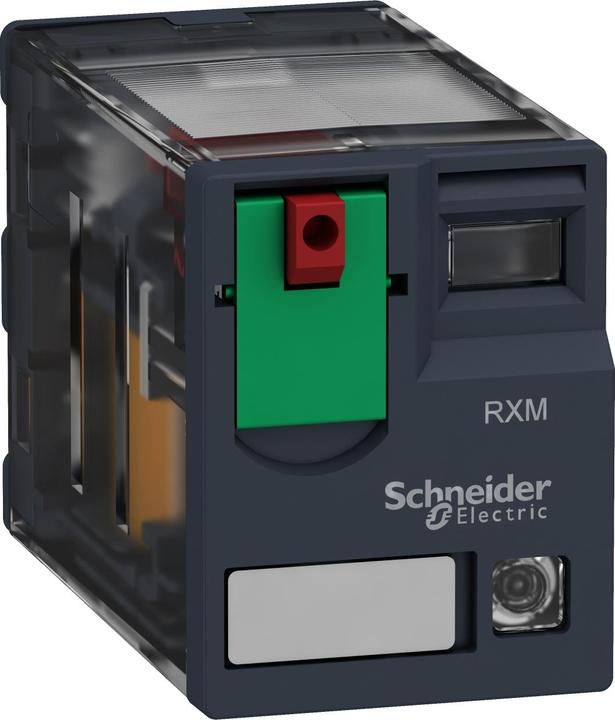

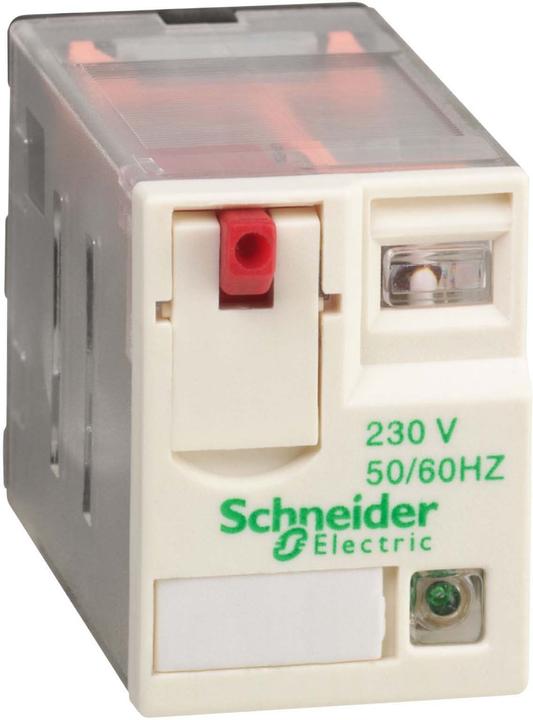

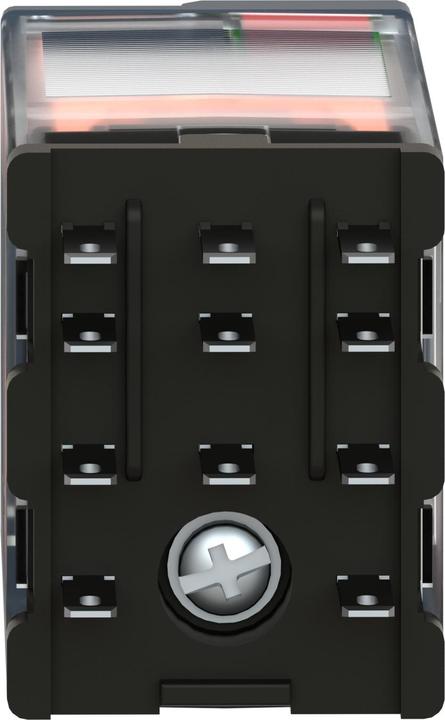

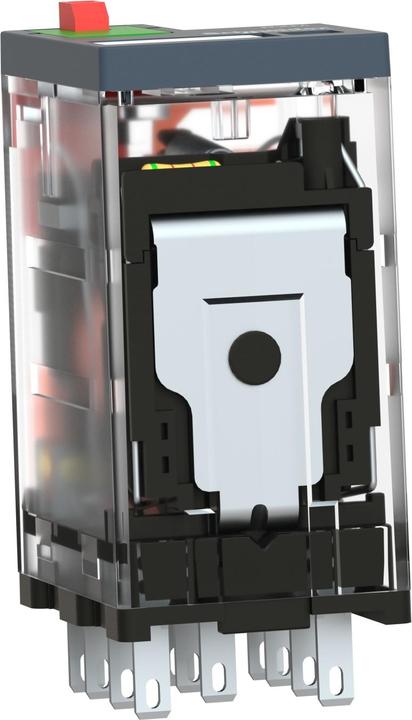

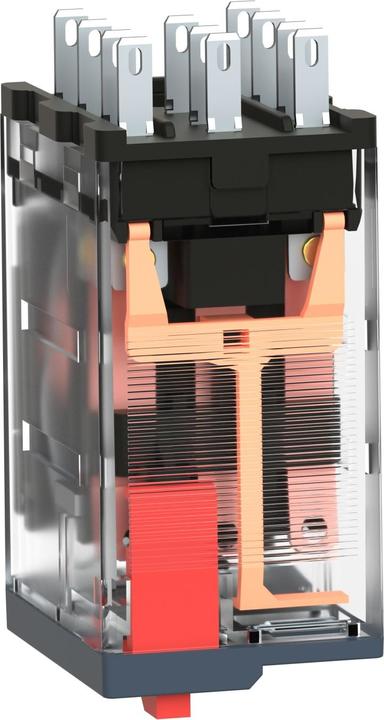

RXM series miniature relays with LED. Schneider Electric's compact Zelio RXM miniature relays with LED can be used to increase the functions in electrical enclosures. They are particularly useful for industrial applications, machinery, construction equipment, and heating, ventilation, and air conditioning. This series of pluggable mini-relays on base, type RXZE2, is easy to use with no adjustment required for standard applications. It allows for easy integration into power devices and can be adapted for all voltages. A test button and mechanical indication of relay status are included. The base for DIN rail mounting or with screws must be ordered separately.
