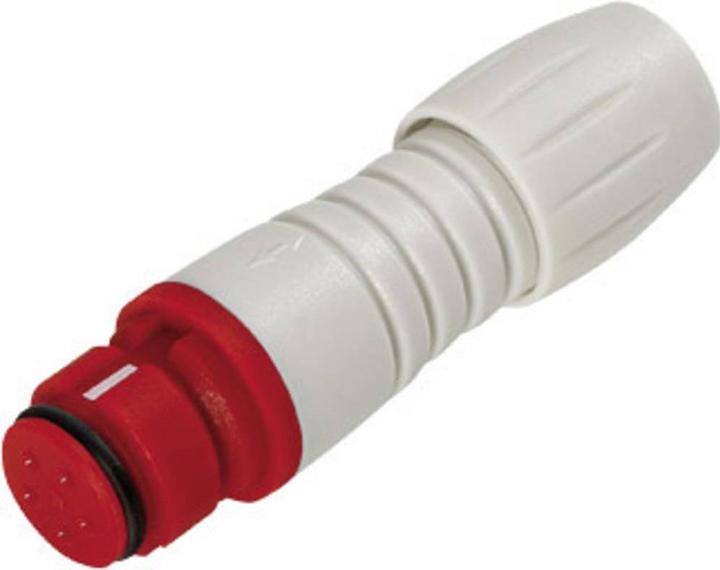

The Binder 99 9206 450 03 is a subminiature circular connector specifically designed for applications in electronics. With a total pin count of 3 and a robust construction, this straight connector provides a reliable connection for various cable types. The connector is made from high-quality PA (UL 94 V-0), making it particularly resistant to high temperatures and mechanical stress. It is designed for a temperature range of -25 °C to +85 °C and offers a rated voltage of 125 V as well as a rated current of 3 A. The IP67 protection rating ensures that the connector is dust-tight and protected against temporary immersion in water, making it ideal for demanding environments. The connection is made through soldering, which allows for a secure and durable connection. The Binder 99 9206 450 03 is therefore an excellent choice for professional applications in electronics.

• Made from PA (UL 94 V-0) for high temperature resistance
• IP67 protection rating for dust and water resistance
• Maximum cable diameter of 5 mm, minimum 3 mm
• Gold-plated contact materials for improved conductivity
• Temperature range of -25 °C to +85 °C.
