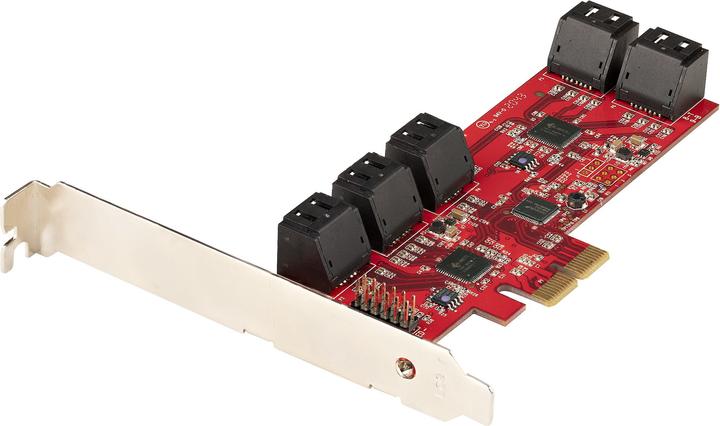

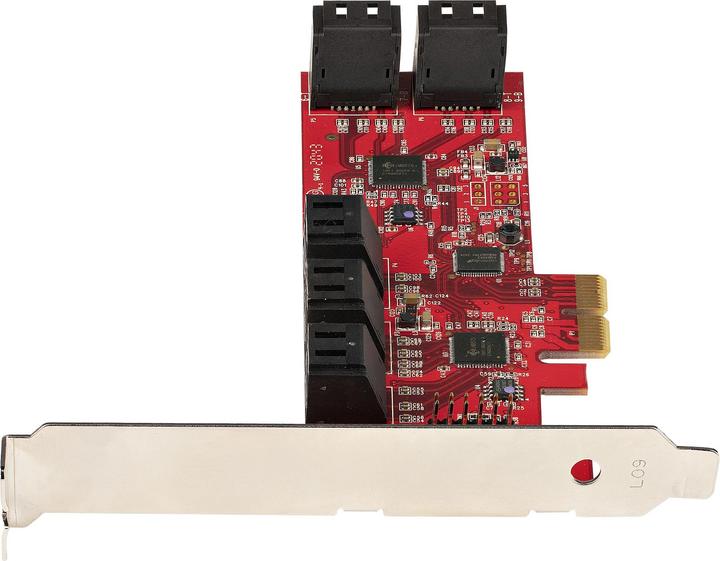

SATA III (6Gbit/s) - PCI Express 2.0 - PCIe x2 Slot - 10x SATA Ports - 2 years. With this SATA III controller featuring 10 ports (6Gbit/s), you can add ten SATA 6Gbit/s hard drives (HDDs) or solid-state drives (SSDs) to your computer system or server via an available PCIe x2 card slot. The card supports SATA III and PCI-Express 2.0 specifications. The ASM1062 provides 10 ports with 6Gbit/s SATA performance. Equipped with the ASM1062 controller, this SATA card allows the connection of ten high-performance SATA 6Gbit/s drives with a combined total throughput of up to 8Gbit/s. The SATA drives are connected via ten individual SATA ports on the card (SATA cables sold separately). Extensive compatibility: The controller card is fully supported by all major operating system platforms, including Windows (7, 8, 10, 11), macOS (10.10 and higher), and Linux (2.6.32 and higher). The card also supports port multipliers.
Internal connection options | mSATA (1x) |
Expansion slot | PCI Express x2 (1x) |
Controller type | SATA controller |
Item number | 17908788 |
Manufacturer | StarTech |
Category | Storage controller |
Manufacturer no. | 10P6G-PCIE-SATA-CARD |
Release date | 3/12/2021 |
External links |
Controller type | SATA controller |
Expansion card form factor | Low profile |
Number of ports | 10 ports |
Storage Controller Additional Functions | Hot plugging |
Expansion slot | PCI Express x2 (1x) |
Internal connection options | mSATA (1x) |
Scope of delivery | Mounting blocks |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 139 mm |
Width | 54 mm |
Weight | 75 g |
Length | 18 cm |
Width | 14.50 cm |
Height | 3.50 cm |
Weight | 340 g |
