8-way splitter with F connectors for SMATV installations. Due to the smaller electronic components, it has low insertion losses, which improves its electrical performance. Additionally, its Zamak housing provides good shielding. It is designed for indoor installation, suitable for wall, mounting plates, or standard DIN rail mounting.

Highlights

• Flexibility in installation: can be screwed to the wall, mounted on plates with nuts at the connections, or installed on a standard DIN rail (with adapter No. 519901)

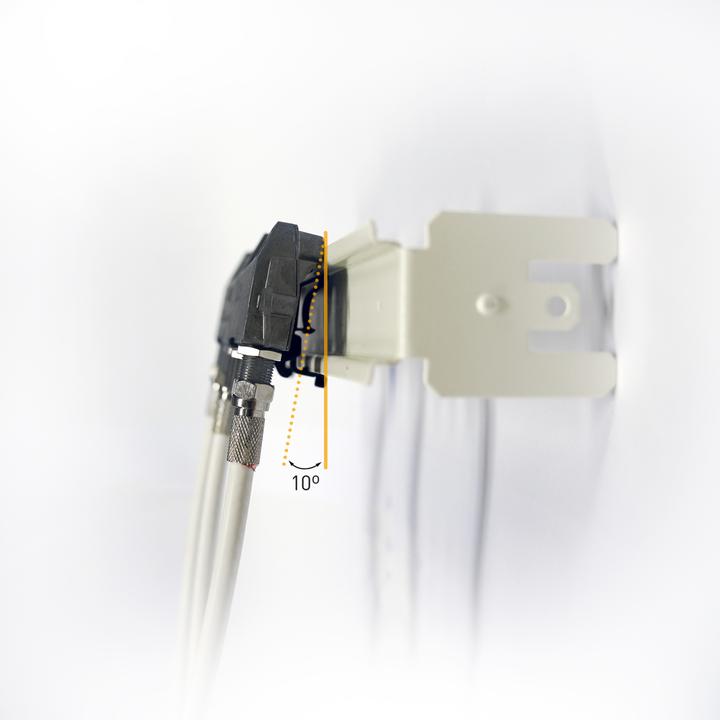

• Convenient cable connection thanks to a 10º angle of the F connectors towards the installation wall

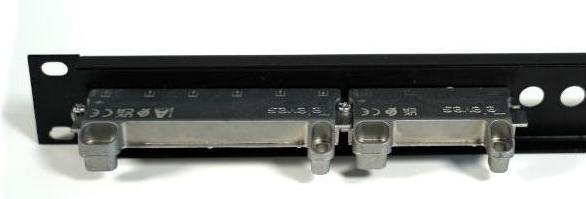

• Space optimization in enclosures and cabinets: inputs and outputs are always on the same side
• Better organization of the installation: allows cable routing through the back
• Elements of the F series can be connected with the grounding screw, requiring only a single grounding cable
• Signal level is maintained at the sockets even with long cables, thanks to improved response characteristics of the flatness
• Excellent reliability: robotic manufacturing with next-generation microcomponents
• 100% European design, quality, and manufacturing

Features

• Low insertion losses
• Good shielding (Class A), made of Zamak
• F connectors with longer threads to facilitate and secure installation on a mounting plate
• Indoor installation
• Includes grounding screw
• DC pass from outputs to input

Technical Data
Frequency range

• MHz 5 ... 2400

Number of outputs

• 8

Insertion loss TERR

• dB 15

Isolation TERR

• dB > 20

Insertion loss SAT

• dB 14

Isolation SAT

• dB > 20

Connector type

• F socket

Max. voltage

• V 24

Max. current consumption

• mA 350

DC pass

• Out.→In.
