Product details
Free management software for centralized management of hundreds of EAPs. Designed for outdoor WLAN applications. WLAN with up to 300 Mbit/s and 2*2-MIMO.

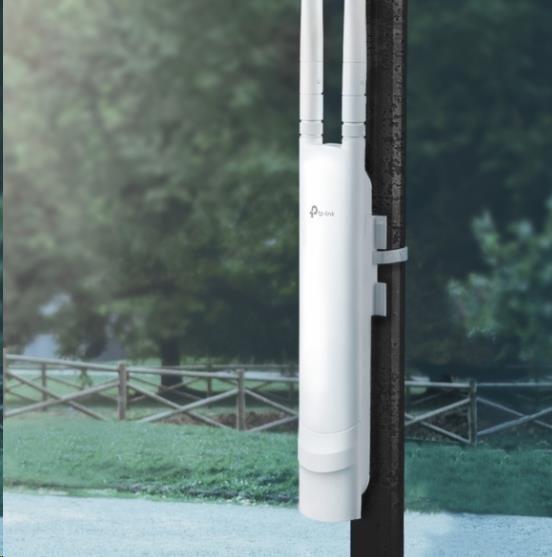

High transmission power and sensitive antennas for the best possible coverage. Robust, weatherproof housing. Supports passive PoE for easy, cost-effective installation without laying new cables. Captive portal for secure access control and easy guest authentication. With its high transmission power and two high-gain omnidirectional antennas, the EAP110 outdoor antenna offers good WLAN coverage in the open air within a radius of up to 200m.
| Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
| Wi-Fi frequency band | Dual band |
| PoE Standard | Proprietary 24V |
| Operating modes | Access point |
| Area of application | Outdoor |
| Number of RJ45/LAN ports | 1 |
| Max. port speed | 100 Mbit/s |
| Item number | 6168957 |
| Manufacturer | |
| Category | |
| Manufacturer no. | EAP110-Outdoor |
| Release date | 3/1/2017 |
| Sales rank in Category Access points | |
| Maximum order quantity | 67 |
| Operating modes | Access point |
| Number of antennas | 2 x |
| Antenna gain | 3 dB |
| Long range coverage | 0.20 km |
| Number of RJ45/LAN ports | 1 |
| Max. port speed | 100 Mbit/s |
| Protection type (IP code) | IP65 |
| Access Point Functions | Seamless roaming |
| Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n |
| 2.4 GHz transfer rate | 300 Mbit/s |
| Wi-Fi frequency band | Dual band |
| Wi-Fi encryption | WEP, WPA-EAP, WPA-PSK, WPA2-EAP, WPA2-PSK |
| Area of application | Outdoor |
| Installation place | Rod, Wall |
| Power supply | PoE |
| PoE Standard | Proprietary 24V |
| Power consumption | 3.10 W |
| Sustainability | Sustainable products and raw materials |
| Scope of delivery | 2x Waterproof antenna, Mounting kit, Passive PoE adapter, Rubber grommet |
| Length | 9.50 cm |
| Width | 20.90 cm |
| Height | 4.26 cm |
| Weight | 620 g |
| Length | 27 cm |
| Width | 11 cm |
| Height | 17 cm |
| Weight | 578 g |
Specifications may include unverified machine translations.
