Series
- TL-SG1005P (5 ports)availableEUR41,64
- TL-SG1008P (8 ports)available in a few daysEUR54,51
- TL-SF1008P (8 ports)available in a few daysEUR54,51
- TL-SF1005P (5 ports)availableEUR40,97
Product details
- Gigabit switch
So power users at home, in the office, in a workgroup or in a creative production environment can now move large, bandwidth-intensive files faster. Transfer documents, programs or multimedia
So power users at home, in the office, in a workgroup or in a creative production environment can now move large, bandwidth-intensive files faster. Transfer documents, programs or multimedia
files over the network without delay up to 2000 Mbps in full duplex mode.

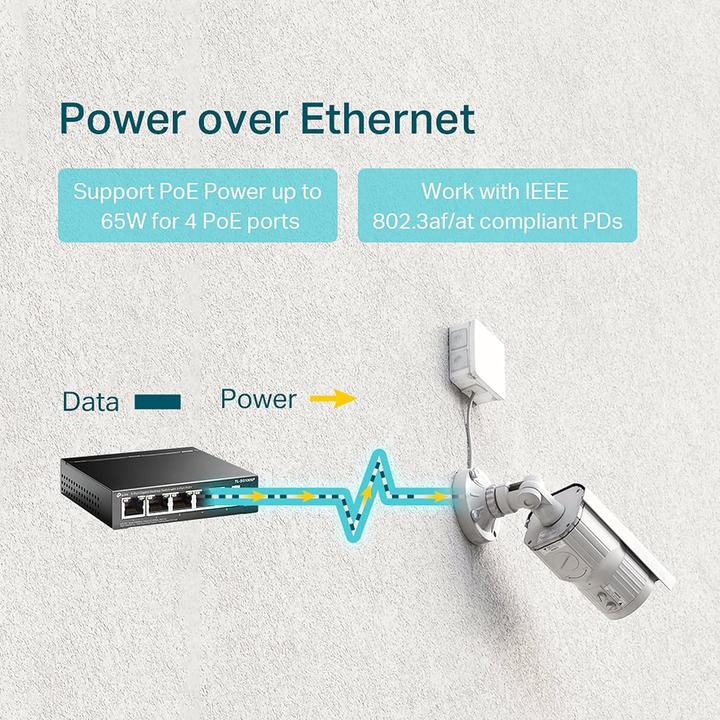

- Power over Ethernet
4 of the 5 autotuning RJ45 ports (port 1 to 4) of the switch support Power over Ethernet (PoE). These PoE ports can automatically detect PoE-compatible network devices and provide power to IEEE802.3af powered devices (PDs). Power is transported along with data over a single cable, allowing the network to be extended where there are no power lines or electrical outlets.

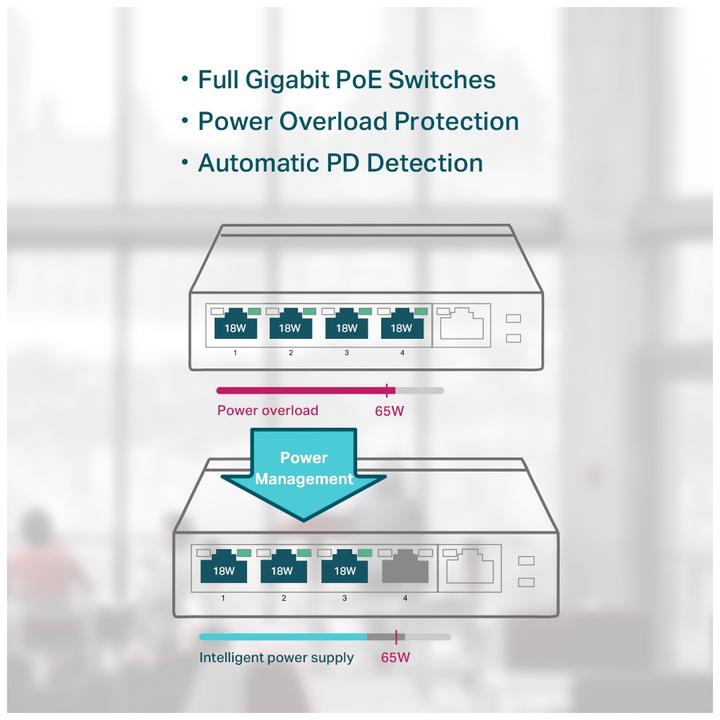

- Intelligent Power Management
As soon as the total power consumption of PoE-powered devices is greater than or equal to 57W, priorities are assigned among the PoE ports. To protect the system in the event of an overload, a decision is then made to distribute the power or turn off the power on the port with the lowest priority.
- Power over Ethernet
4 of the 5 autotuning RJ45 ports (port 1 to 4) of the switch support Power over Ethernet (PoE). These PoE ports can automatically detect PoE-compatible network devices and provide power to IEEE802.3af powered devices (PDs). Power is transported along with data over a single cable, allowing the network to be extended where there are no power lines or electrical outlets.
- Intelligent Power Management
As soon as the total power consumption of PoE-powered devices is greater than or equal to 57W, priorities are assigned among the PoE ports. To protect the system in the event of an overload, a decision is then made to distribute the power or turn off the power on the port with the lowest priority.
| Max. port speed | 1000 Mbit/s |
| Network connections | RJ45 (5x) |
| Switchtype | Desktop switch, PoE Switch |
| Number of PoE ports | 4 ports |
| Management | Unmanaged |
| Switch functions | PoE |
| Item number | 7041992 |
| Manufacturer | |
| Category | |
| Manufacturer no. | TL-SG1005P |
| Release date | 13.12.2017 |
| Sales rank in Category Network switches | |
| Maximum order quantity | 266 |
| Colour group | Black |
| Exact colour description | Black |
| Switchtype | Desktop switch, PoE Switch |
| Number of ports | 5 ports |
| Number of PoE ports | 4 ports |
| PoE Standard | 802.3af (PoE) |
| PoE budget | 56 W |
| Management | Unmanaged |
| Switch functions | PoE |
| switching layer | Layer 2 |
| Switching capacity | 10 Gbit/s |
| VLAN type | Static VLAN |
| MAC adress table size | 2000 |
| IGMP Snooping | V2 |
| Manufacturer Type | Tl-sg1005p |
| Network connections | RJ45 (5x) |
| Max. port speed | 1000 Mbit/s |
| Max. port speed RJ45 | 1000 Mbit/s |
| Max. Port speed | 1000 Mbps / 1 Gbps |
| Application range | Home use |
| Network operation | Power supply unit redundant, Powered device |
| Power consumption | 64.44 W |
| Scope of delivery | DE power cable |
| Length | 9.80 cm |
| Width | 9.98 cm |
| Height | 2.50 cm |
| Weight | 750 g |
| Length | 19.90 cm |
| Width | 13.60 cm |
| Height | 13 cm |
| Weight | 676 g |
