Product details

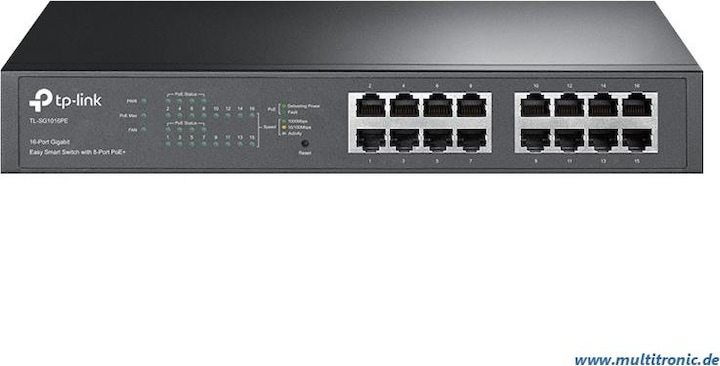

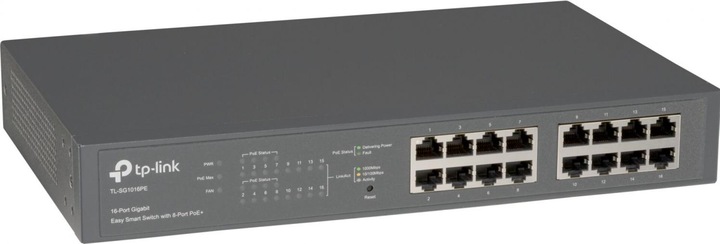

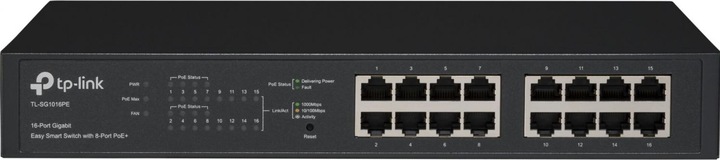

The TL-SG1016PE is a 16-port Gigabit desktop/rack switch with eight PoE+ ports. It provides an easy way to expand your network and delivers data and power over a single Ethernet cable.
With a total PoE output of 124 W (up to 30 W per port), it is also capable of feeding devices with high power consumption (such as access points, IP cameras and IP telephones). In addition, it supports innovative energy-saving mechanisms, whereby the switch saves up to 75% of energy and thus also represents an environmentally friendly solution.
| Max. port speed | 1000 Mbit/s |
| Network connections | RJ45 (1x), RJ45 (7x), RJ45 (8x) |
| Switchtype | PoE Switch, Rack Switch |
| Number of PoE ports | 8 ports |
| Management | Cloud managed |
| Switch functions | PoE, Quality of Service (QoS) |
| Item number | 7948851 |
| Manufacturer | |
| Category | |
| Manufacturer no. | TL-SG1016PE |
| Release date | 3/2/2018 |
| Sales rank in Category Network switches | |
| External links | |
| Maximum order quantity | 68 |
| Colour group | Black |
| Exact colour description | Black |
| Switchtype | PoE Switch, Rack Switch |
| Rack Unit | 1U |
| Number of ports | 16 ports |
| Number of PoE ports | 8 ports |
| PoE Standard | 802.3at (PoE+) |
| PoE budget | 110 W |
| Management | Cloud managed |
| Switch functions | PoE, Quality of Service (QoS) |
| switching layer | Layer 2 |
| Switching capacity | 32 Gbit/s |
| VLAN type | Static VLAN |
| Max. Number of VLANs | 4000 x |
| MAC adress table size | 8000 |
| IGMP Snooping | V2 |
| Manufacturer Type | Tl-sg1016pe |
| Network connections | RJ45 (1x), RJ45 (7x), RJ45 (8x) |
| Max. port speed | 1000 Mbit/s |
| Max. port speed RJ45 | 1000 Mbit/s |
| Max. Port speed | 1000 Mbps / 1 Gbps |
| Application range | Network |
| Network operation | Power supply internal, Powered device |
| Power consumption | 110 W |
| Sustainability | Sustainable products and raw materials |
| Scope of delivery | AC Cables, CD, Installation guide, Rack mount kit, Rubber feet |
| Length | 18 cm |
| Width | 29.40 cm |
| Height | 4.40 cm |
| Weight | 150 g |
| Length | 41.30 cm |
| Width | 25.50 cm |
| Height | 8.20 cm |
| Weight | 2.28 kg |
