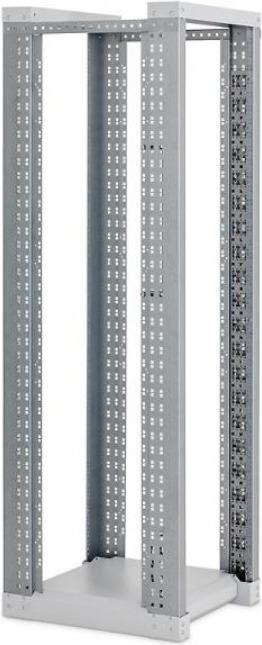

19" rack frame, 42U, 600 x 600 mm, two-part

Model: RSX-42-XD6-CXX-A1

The 19" rack frame is suitable for installation in protected areas with a load capacity of up to 400 kg.

Single-part rack frames

Single-part rack frames are recommended for simple installations without heavy components.

Two-part rack frames

The two-part 19" rack frame is suitable for the installation of larger and heavier components.

High construction stability

The vertical profiles ensure a high load capacity and stability of the rack frame.

Wheels, leveling feet

There is an option to mount wheels, heavy-duty wheels, and leveling feet.

Tilt protection

This is additionally mounted at the base of the two-part rack frame and increases the stability of the entire structure when extendable components, such as servers, are installed. It is included in the accessories of the two-part frame.

Dimensions:

• Height 2005 mm x Width 600 mm x Depth 600 mm

Accessories:

• 6x leveling feet

• Tilt protection

Material:

• Steel deep-drawn sheet

• The 19" rack frames are used for installations in designated areas.

• 19" rack frames are manufactured in single and two-part versions.

• Due to their higher stability, the use of the two-part version is more advantageous.

• Frame construction: Disassemblable; metal parts; The 19-profile frame can be placed directly on the floor or set up with the help of leveling feet or wheels (wheels are not included in the accessories).
