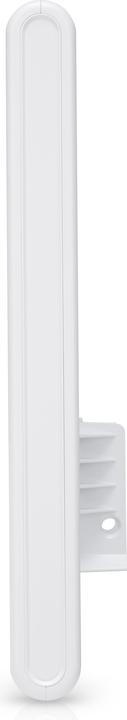

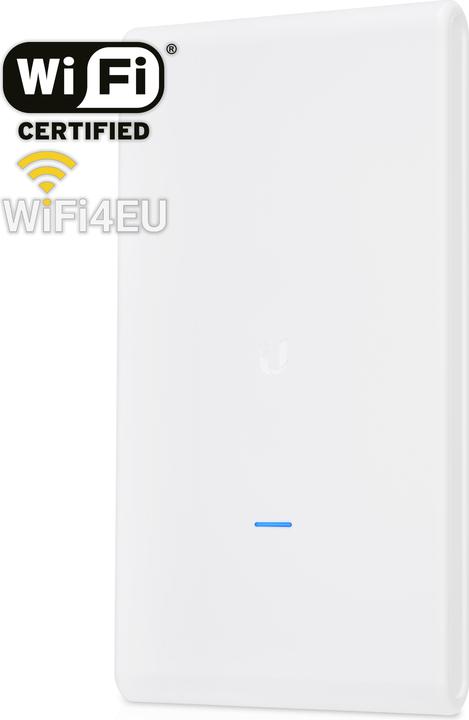

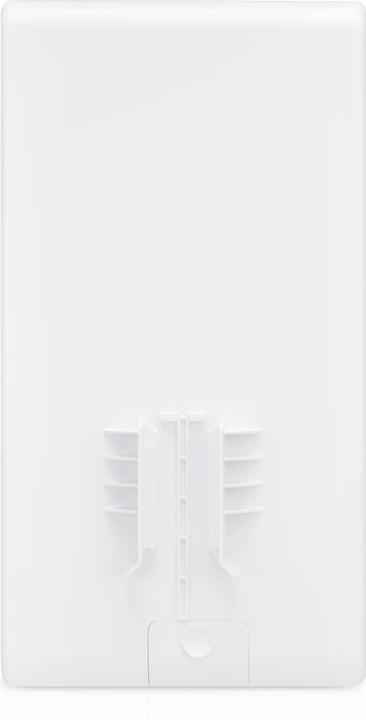

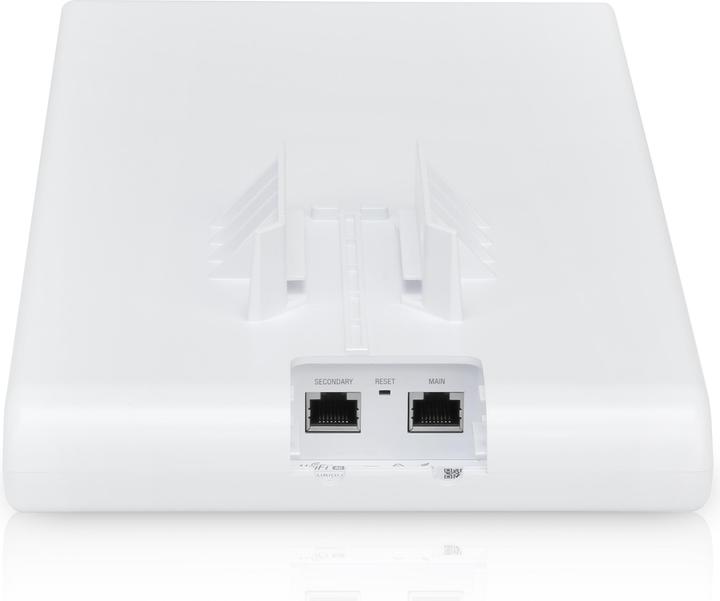

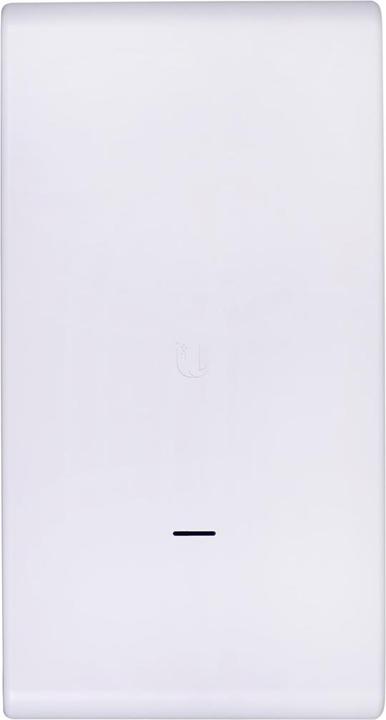

Ubiquiti UniFi AP-AC-M-PRO Mesh

1300 Mbit/s

Model

Product details

Access Point with mesh functionality
The UAP-AC-M-PRO is a powerful access point for scalable mesh networks. It offers you simultaneous dual-band with 3x3 MIMO technology.
The weatherproof housing makes it particularly suitable for outdoor use. With several of these access points, large areas can be supplied with minimal infrastructure and without much IT effort.

UniFi Mesh Technology
Ubiquiti's Mesh Series allows you to easily set up a professional mesh network. The great advantage of this technology is the wireless networking of the access points with each other. This meshed structure enables a large area expansion of radio networks. You benefit from high coverage and improved redundancy. In addition, the data rate increases if the distance between the Mesh Access Points is reduced.

Simple assembly
The UAP-AC-M-PRO supports PoE for flexible installation. It can be powered from a compatible 802.3af switch, EdgePoint EP-R6, UniFi PoE switch or Gigabit PoE adapter. It is suitable for outdoor use and withstands even the most extreme conditions.

UniFi Controller Software
Use the UniFi Controller software to quickly configure and manage your network. The centralized controller provides you with detailed statistics, frequency maps and status reports of the network via any web browser. Even several distributed sites can be managed via the portal.

Key specifications

Wi-Fi standard
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
Wi-Fi frequency band
Dual band
PoE Standard
802.3af (PoE)
Operating modes
Access point
Area of application
Business
Outdoor
Number of RJ45/LAN ports
2
Max. port speed
1000 Mbit/s
Documents
Item number
6040162

General information

Manufacturer
Category
Manufacturer no.
UAP-AC-M-PRO
Release date
12/14/2016
External links

Access point properties

Operating modes
Access point
Max. number of clients
250 x
Number of antennas
3 x
Antenna gain
8 dB
Long range coverage
0.18 km
Number of RJ45/LAN ports
2
Max. port speed
1000 Mbit/s
Access Point Functions
Guest access

Wi-Fi standard

Wi-Fi standard
Wi-Fi 2 / 802.11a
Wi-Fi 3 / 802.11g
Wi-Fi 4 / 802.11n
Wi-Fi 5 / 802.11ac
5 GHz transfer rate
1300 Mbit/s
2.4 GHz transfer rate
450 Mbit/s
Wi-Fi frequency band
Dual band
Wi-Fi encryption
WEP
WPA-EAP
WPA-PSK
WPA2-EAP
WPA2-PSK

Application range

Area of application
Business
Outdoor
Installation place
Ceiling
Rod
Roof
Wall

Power supply

Power supply
PoE
PoE Standard
802.3af (PoE)
Power consumption
9 W

Scope of delivery

Scope of delivery
Installation kit
PoE adapter

Product dimensions

Length
6.02 cm
Width
18.12 cm
Height
34.32 cm
Weight
633 g

Package dimensions

Length
40.80 cm
Width
27.20 cm
Height
8.90 cm
Weight
2.08 kg
