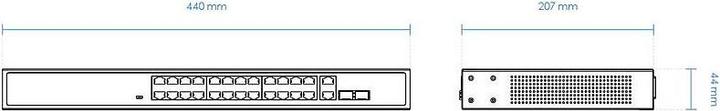

The VIVOTEK AW-FGT-260D-380 is an unmanaged 26-port switch equipped with a DIP switch, offering ST mode as the default mode, ST-VLAN as the default VLAN mode, and EX mode as the extend mode. This switch is specifically designed for IP surveillance applications and provides standard 802.3af/at PoE functionality in ST mode, while the EX mode transmits data and power over a single cable up to 250 meters at 10 Mbit/s through 8 EX ports for long-range PoE IP cameras. The AW-FGT-260D-380 also features an additional input voltage tolerance range of 20% (280V AC for 4 hours, 300V AC for 1 minute) and includes surge protection for AC and PoE to prevent damage from unstable external AC power supply and lightning strikes. These unique features reduce the costs associated with replacing damaged units.

• 24x 10/100 Mbit/s PoE RJ45 ports
• 2x 10/100/1000 Mbit/s combo ports
• IEEE 802.3af/at compatible
• Supports PoE power up to 30W for each PoE port
• 6KV PoE surge protection for each port
• 20% input voltage tolerance (280V AC for 4 hours, 300V AC for 1 minute)
• Circuit protection prevents power interference between ports
• Automatically detects PoE PD (Power Device)
• In ST mode, the PoE camera reaches up to 100m at 100 Mbit/s over each PoE port
• The VLAN mode isolates each port to prevent broadcast storms
• In EX mode, the PoE camera reaches up to 250m at 10 Mbit/s over EX PoE ports.
